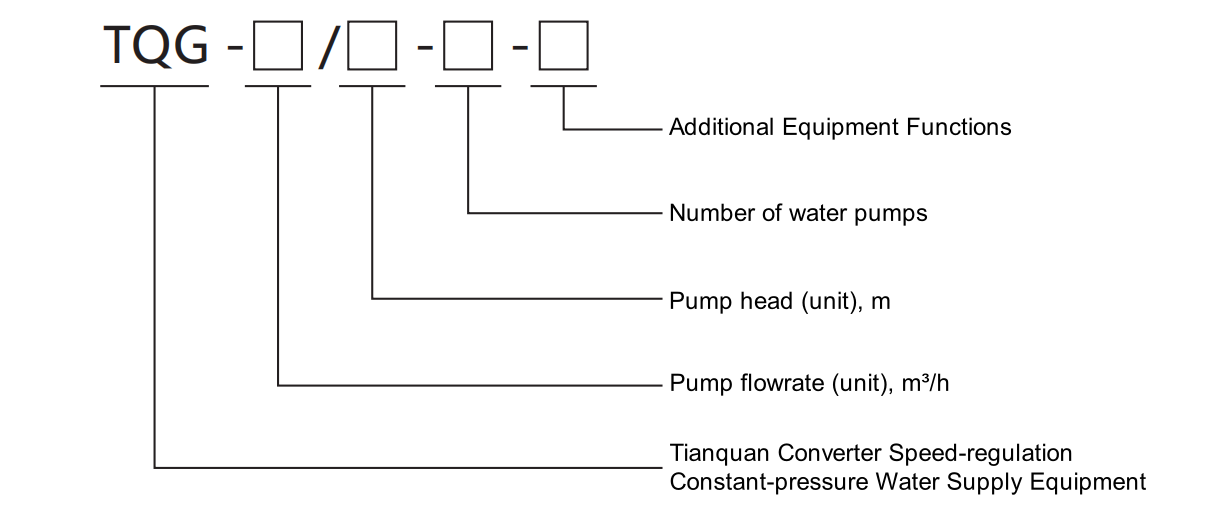

TQG Constant Pressure Frequency Conversion Water Supply System

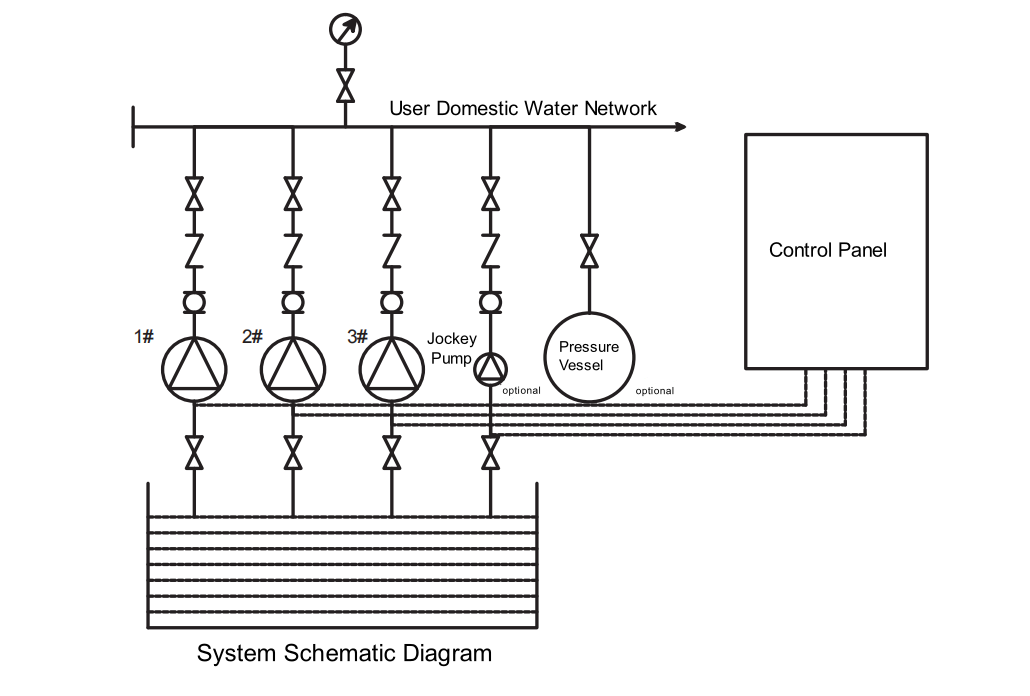

Working Principle

The variable frequency water supply system maintains constant pipeline pressure by adjusting pump speed.

When the detected pressure at the outlet drops below the preset activation threshold, the system automatically modulates pump speed to stabilize output pressure.

Operational Logic:

1. Multi-Pump Coordination

- If pressure remains below the setpoint at full speed (50Hz), the system sequentially activates Pump #2 and Pump #3.

- As water demand decreases and pressure rises, pump speeds gradually reduce.

- When speeds reach the minimum threshold, pumps shut down in reverse order (#3 → #2 → #1).

Key Technical Advantages:

1. Precision Pressure Stabilization

- Microprocessor-controlled closed-loop system

- Responds to pressure fluctuations within 0.5 seconds

- Maintains accuracy within ±5% of setpoint

2. Comprehensive Protection & User-Friendly Operation

- Industrial-grade VFD (Imported) with built-in safeguards:

✓ Under/over voltage protection

✓ Overcurrent/overload protection

✓ Short-circuit/overheat protection

- AI-assisted control panel enables intuitive operation by non-technical personnel

3. Fail-Safe Water Supply Capabilities

- Emergency backup mode ensures uninterrupted supply during faults

- Dual-VFD configuration for redundancy

- Municipal network integration with automatic switching

- Firefighting mode: Instant transition to high-pressure/high-flow output

Performance Highlights:

- Dual-purpose operation: Seamlessly handles both domestic and firefighting demands

- Adaptive logic: Intelligent pump sequencing maximizes equipment lifespan

- Zero-intervention maintenance: Self-diagnostic protocols minimize downtime

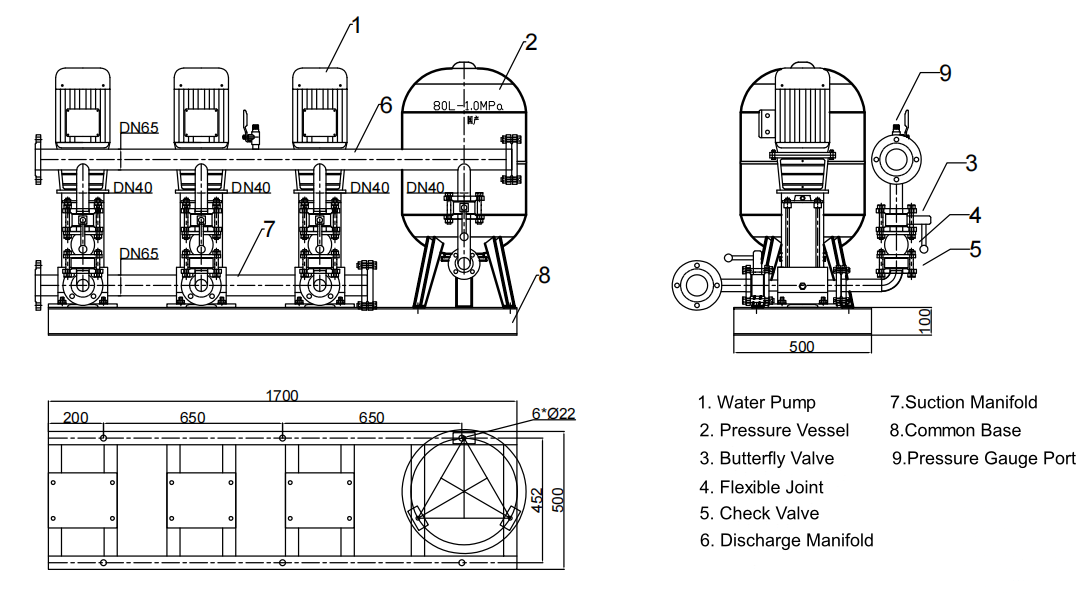

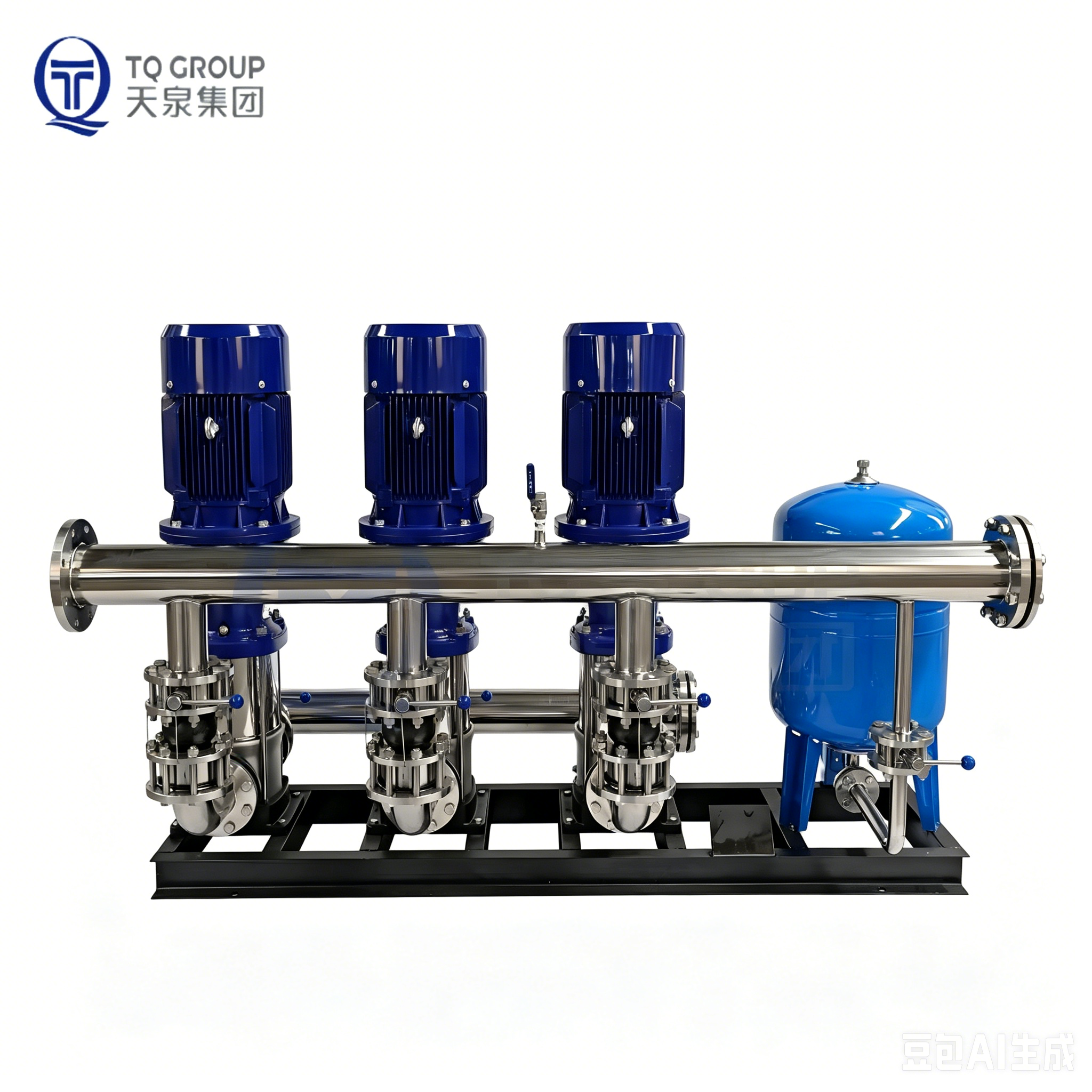

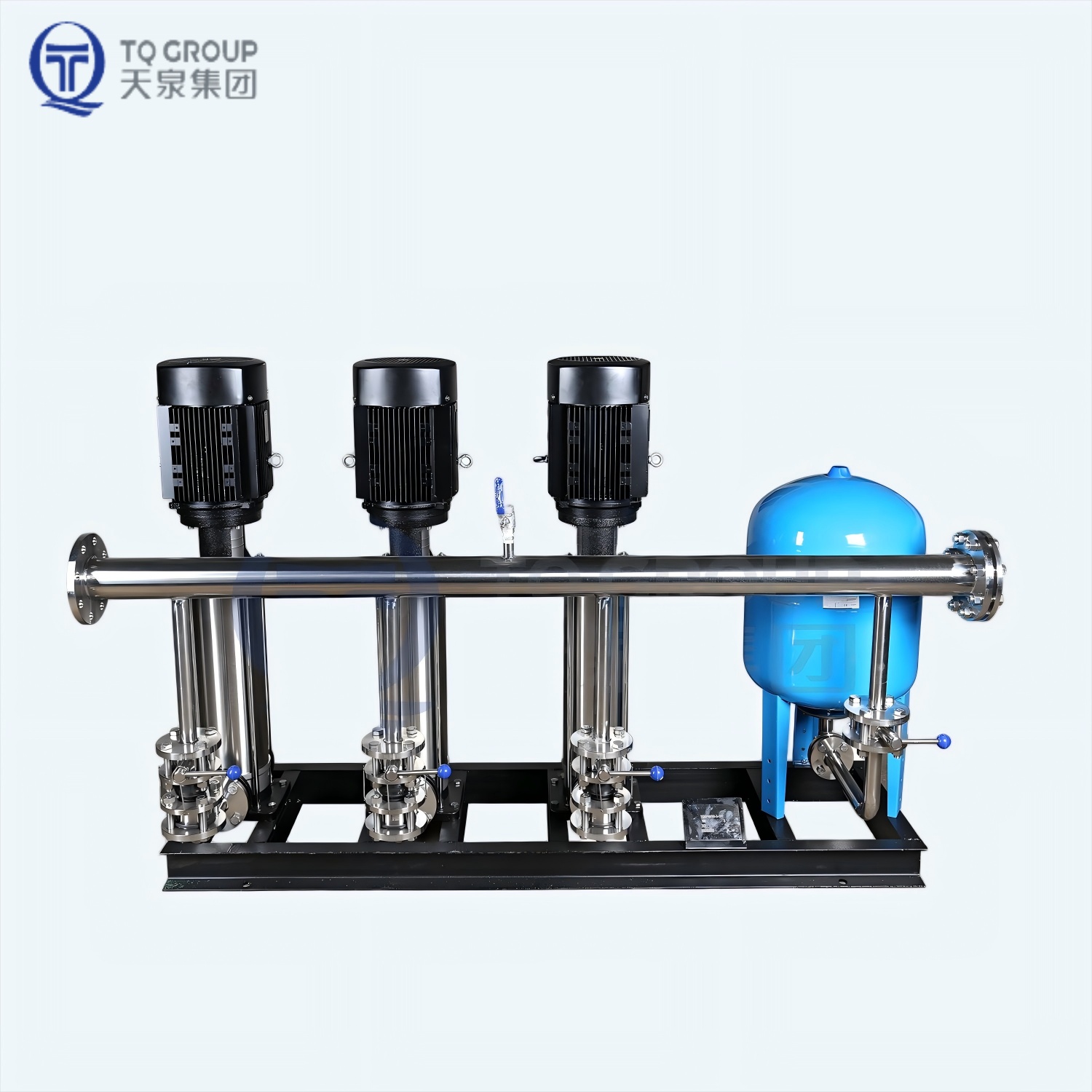

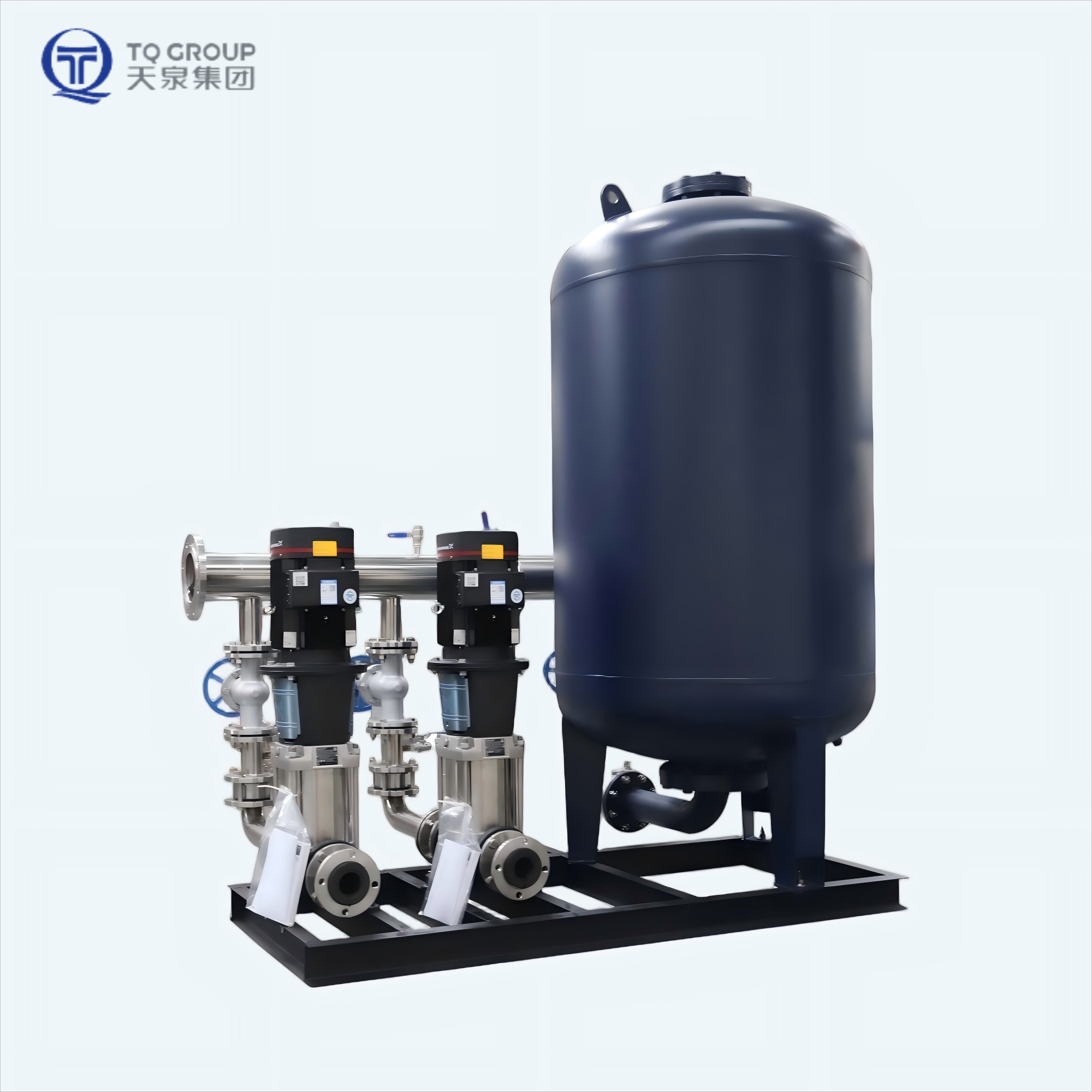

Product Structure

System Composition：

The TQG system primarily consists of:

- Pump unit(s) (multi-stage centrifugal type)

- Hydropneumatic accumulator (diaphragm-type pressure vessel)

- Pressure transducer(4-20mA output)

- Frequency conversion control cabinet(with PID algorithm)

This integrated system maintains user-defined parameters with ±0.01MPa precision.

System Configuration Modes：

1. Municipal Network-Parallel Operation

- Operating Principle:

 - Automatically shuts down all pumps when municipal supply meets pressure demand

 - Activates when municipal pressure is insufficient (auto-cut-in at preset threshold)

 - Pressure-boosting function: Compensates for demand peaks while preventing backflow

2. Hydropneumatic Accumulator Functions

- Primary roles:

 a) Standby pressure maintenance (during pump idle)

 b) Compensates for:

    - Minor water demand (<5% of rated flow)

    - Pipeline leakage losses

 c) System protection:

    - Water hammer suppression (per AWWA C511)

    - Pressure pulsation damping

Technical Highlights：

- Seamless transition between municipal/pump supply

- Zero-interruption during mode switching

- Self-diagnostic leakage compensation algorithm
