TQ Pump manufacturers of industrial water chemical and centrifugal pumps

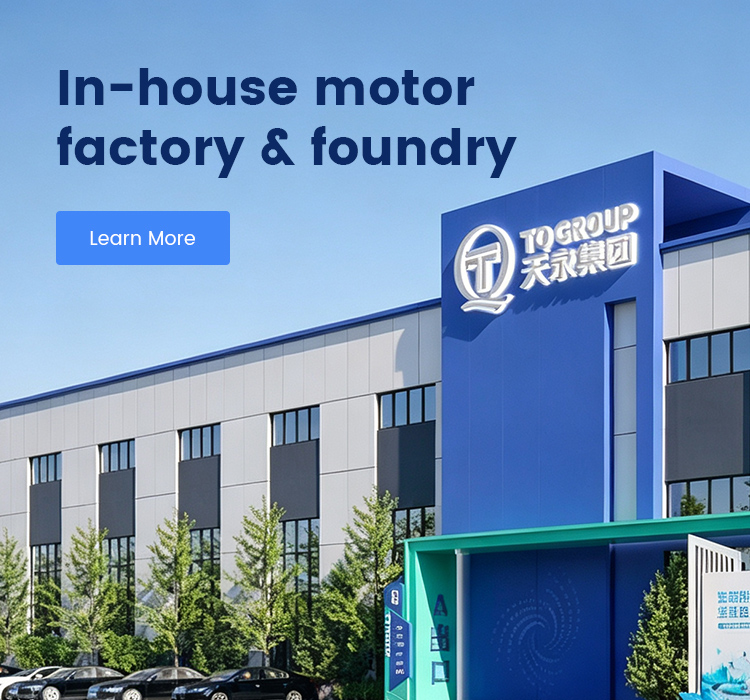

In-house motor factory & foundry

30 years centrifugal pump manufacturer

TQ Pump's comprehensive product line of industrial pumps

RELIABLE
ENERGY-SAVING
CUSTOMIZATION

New Products

Featured Products

Learn More

WQR High Temperature Submersible Sewage Pump | Max. 95℃

Learn More

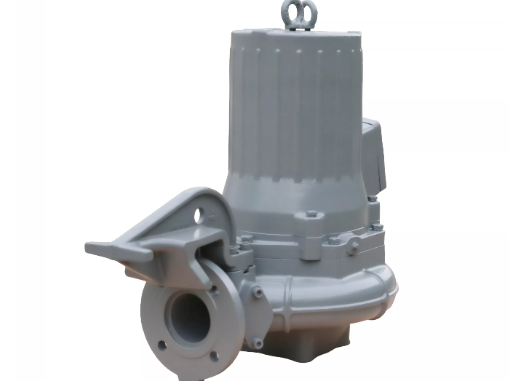

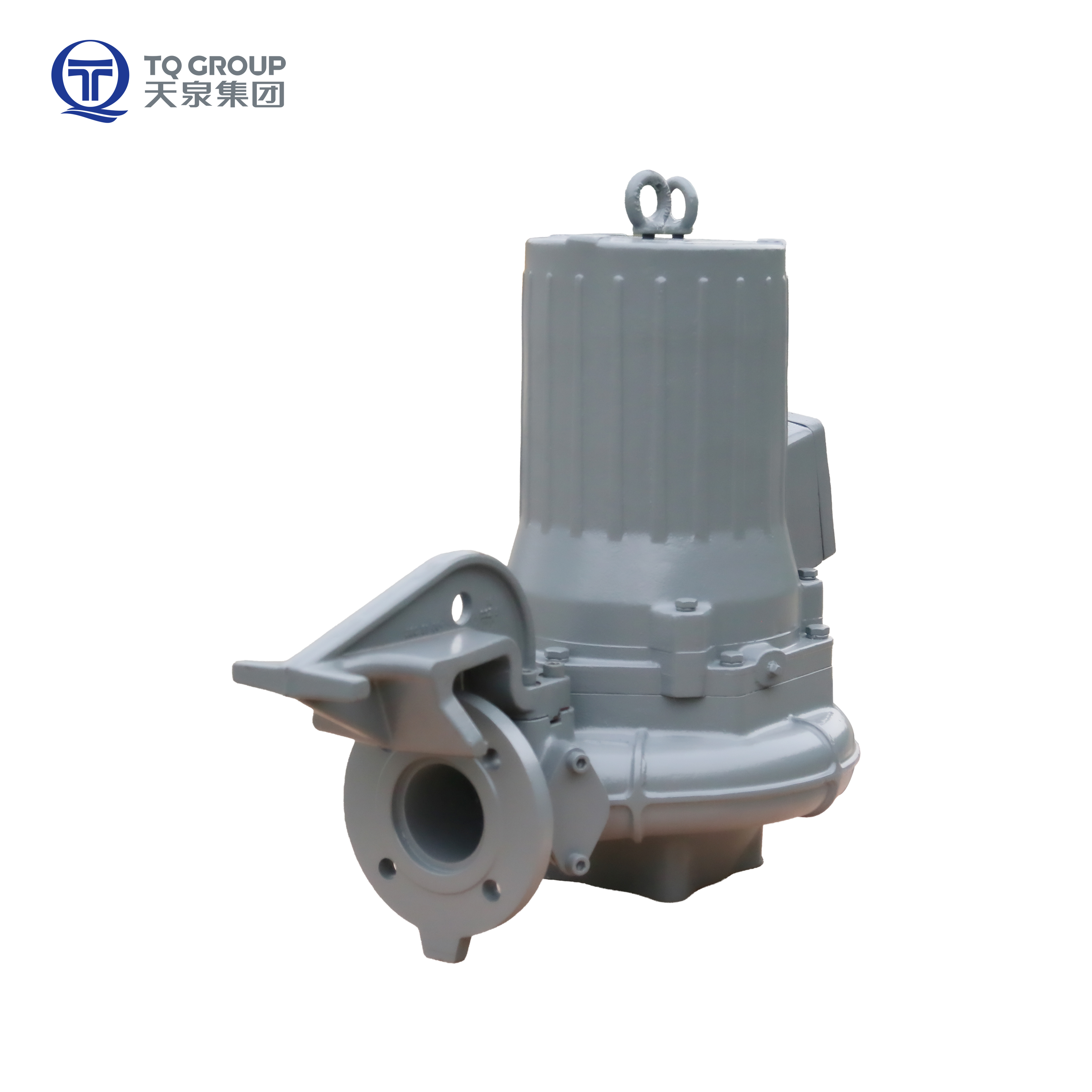

Industrial Heavy Duty Submersible Sewage Pump | Chopper Impeller

Learn More

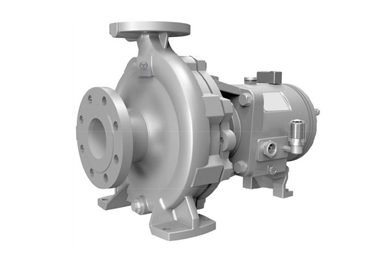

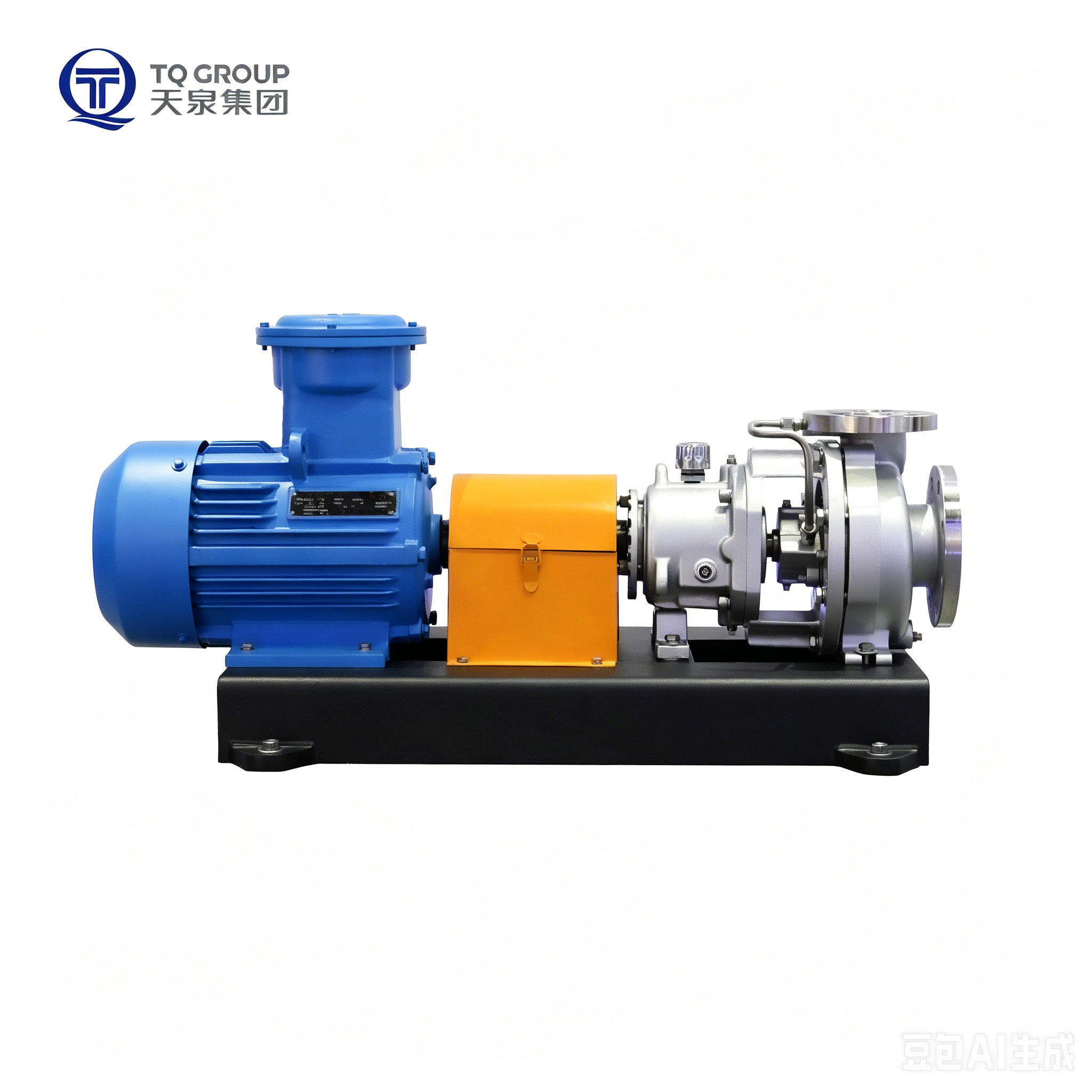

TI ISO Chemical Process Pump

Learn More

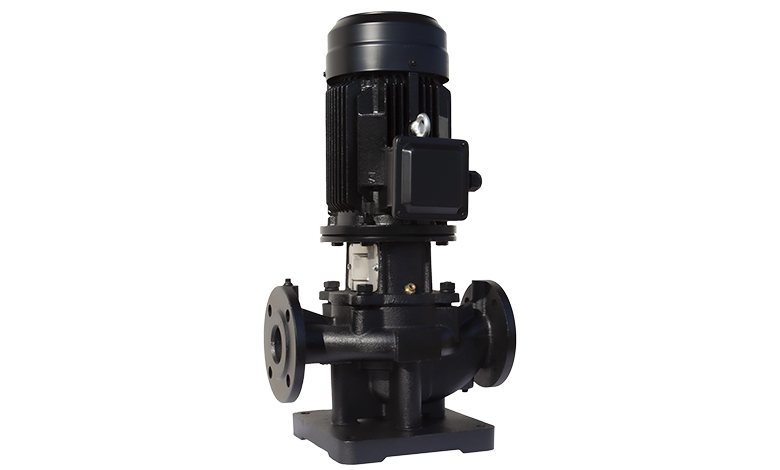

TP Vertical Inline pump

TP Series Vertical Inline pump is a single- stage and single- suction vertical centrifugal pump. This series is designed for maximum 140℃ water and industrial fluids.The material of pump casing is cast iron HT250 and ductile iron QT400. The pumps are equipped with air-cooled asynchronous motors. Using standard IE3 motor, users can easily equip the motor according to their needs. The pumps are equipped with a mechanical shaft seal.Radial and axial forces are absorbed by the motor bearings, so additional bearings in the pump section are not required. The flow parts of the pump and the impeller are covered with a corrosion-resistant cataphoresis coating. According to the pump performance and design pressure and temperature, TP pump is divided into two sub-series:PN16/PN25
Read More

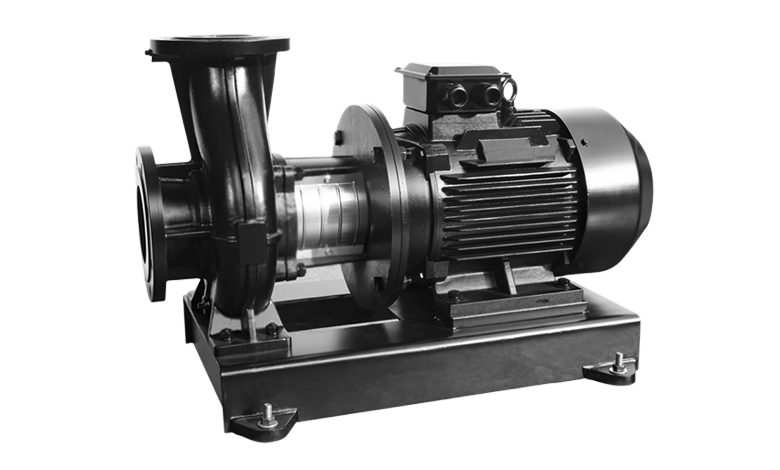

TWZ Horizontal Close Coupled End Suction Pump

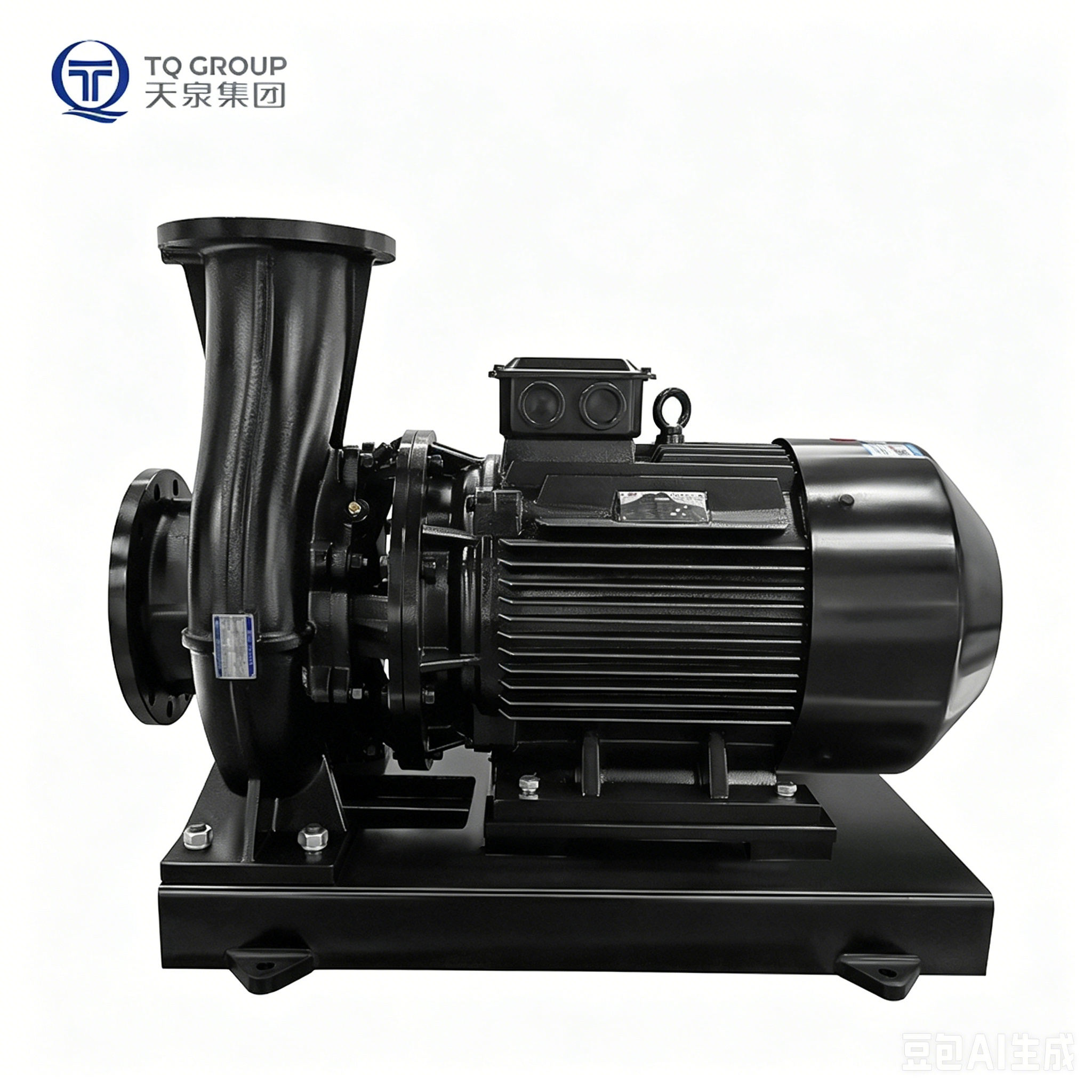

TWZ pumps are non-self-priming, single-stage, cantilever monoblock centrifugal volute pumps with axial inlet port, radial outlet port and horizontal shaft on the base. They are available in PN16 and PN25 body pressure versions. The pumps are fitted with air-cooled asynchronous motors. Impeller and motor shaft are connected via a rigid sleeve coupling (stub shaft). The pumps are fitted with a mechanical shaft seal. The pumps provide a compact arrangement ideal for installations where space is at a premium. With its compact and space-saving design, this pump is ideal for use in industrial, commercial, and residential settings where space is limited.In fact, TWZ series horizontal rigid coupled cantilever single-stage single-suction centrifugal pump is derived from TPW series. It shares the same pump body,impeller as TPW and the same motor support as TP series. TWZ features a higher operating temperature than TPW.
Read More

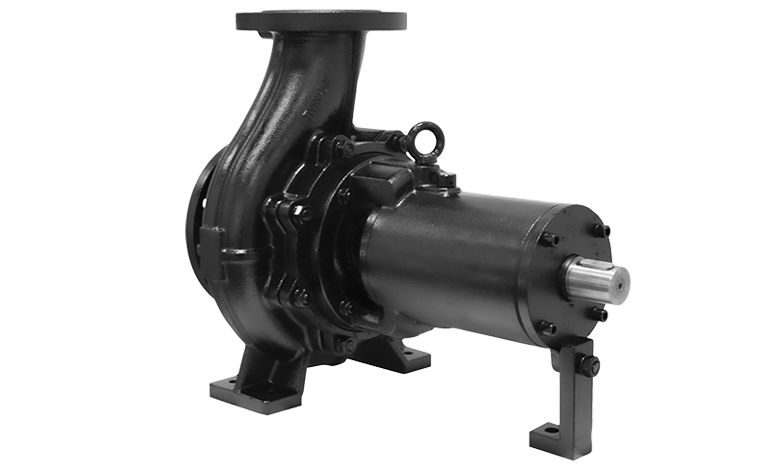

TWX Horizontal Long Coupled End Suction Pump

TWX pumps are non-self-priming, single-stage, cantilever centrifugal volute pumps with axial inlet port, radial outlet port and horizontal shaft on the base frame. The overall structure of the pump is advanced and reasonable, and motor and pump direct connection design, reducing the floor area. The pumps are fitted with a mechanical shaft seal. And can be configured seals for different fluid media. The pumps are of the back-pull-out design, that is you can remove the motor, motor stool and impeller without disturbing the pump housing or pipes. At the same time, it can be applied to different pipeline system caliber and pressure level configuration.
Read More

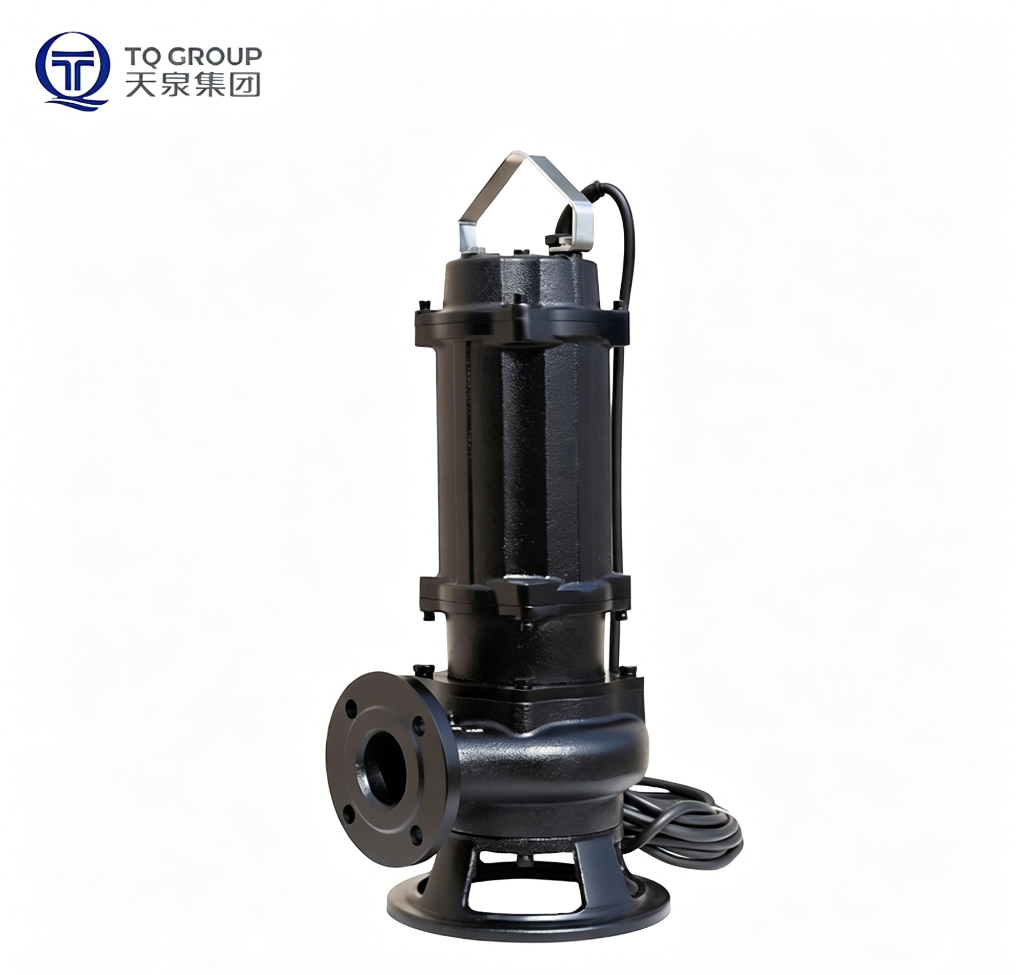

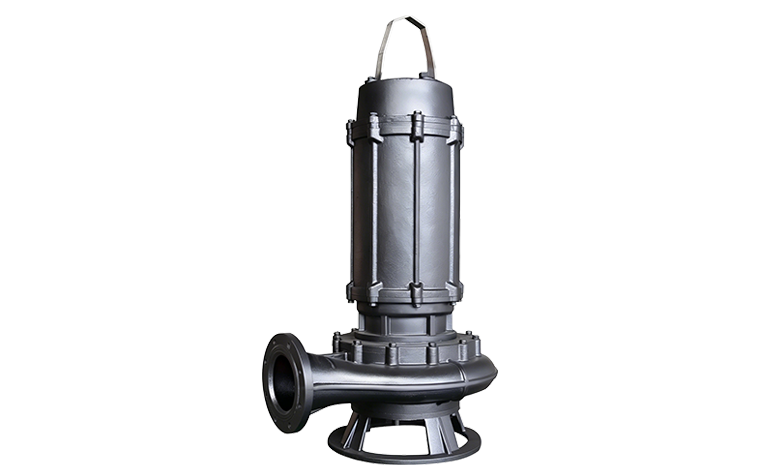

WQ Big Submersible Sewage Pump

WQ submersible sewage pump uses a special submersible electric motor at the top and a pump at the bottom. The medium to be pumped is sucked in axially from the bottom, then discharged laterally from the pump body.

The impeller is fixed on the motor shaft extension, forming a common rotor component with the motor shaft. The pump body and pump cover together form the pressure boundary, designed for a temperature of 40°C. The design pressure for pumps with a head of less than 40m is 0.6MPa, and for pumps with a head of ≥40m, the design pressure is 1.0MPa. O-rings are used as reliable static seals at the connections between parts.
Read More

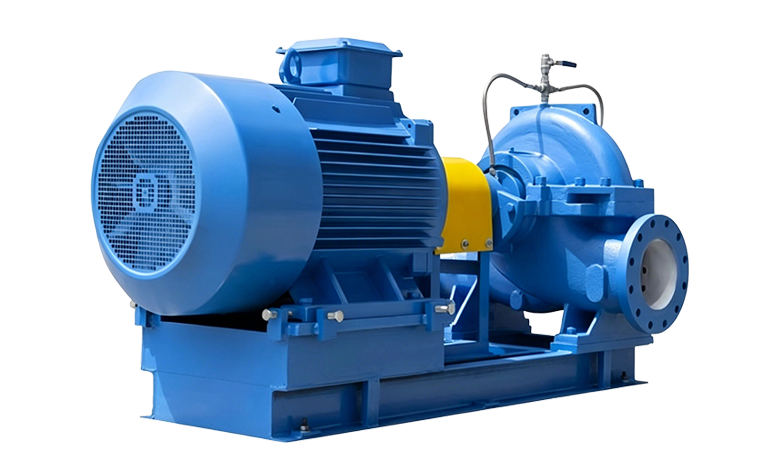

SOW Double-suction Split Case Centrifugal Pump.

SOW is single-stage, centrifugal pumps with a double-entry impeller. Designed for pumping water and liquids with properties similar to water in terms of viscosity and chemical activity, with temperatures up to 80°C, (on request up to 180°C).Our impeller could be customized with different material ranging from cast iron to stainless steel to meet customers' needs.
Read More

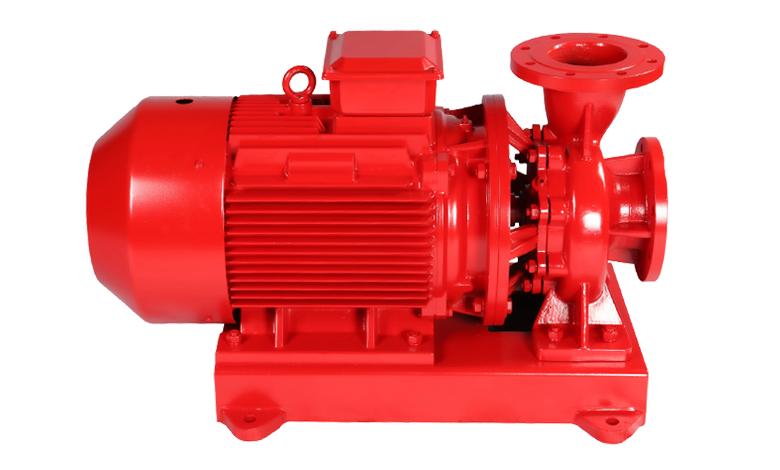

XBD-TQW Single Stage Horizontal Fire Pump

(1) The XBD-W series features a horizontal single-stage end suction design with a cantilever close-coupled structure suitable for fixed firefighting applications. The pump impeller is directly mounted on the extended shaft of the motor. Both the pump inlet and outlet are flanged connections, with axial inlet port, radial outlet port and horizontal shaft on the base. The pump does not have bearings; both axial and radial forces are supported by the motor's bearings. The pump and motor are connected via bolts on a common base.
Read More

TP Vertical Inline pump
TWZ Horizontal Close Coupled End Suction Pump
TWX Horizontal Long Coupled End Suction Pump
WQ Big Submersible Sewage Pump
SOW Double-suction Split Case Centrifugal Pump.
XBD-TQW Single Stage Horizontal Fire Pump

Pump Solutions for Every Industry

Commercial and Residential Buildings

Shopping centers, high-rise buildings, hotels, hospitals and Residential communities.

View More
Firefighting Systems

Industrial zones, logistics warehouses, airports, and public infrastructures.

View More
Municipal & Water Infrastructure

Waterworks, flood control stations, water diversion projects, and wastewater plants.

View More

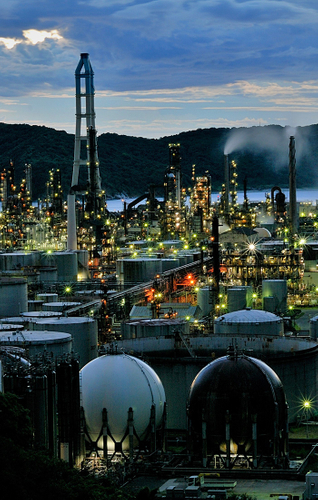

Industrial Applications

Pharmaceutical plants, power station boiler feeds, metallurgy, and manufacturing.

View More
Agricultural Irrigation

Farmland irrigation, agricultural water supply, and regional water transfer.

View More

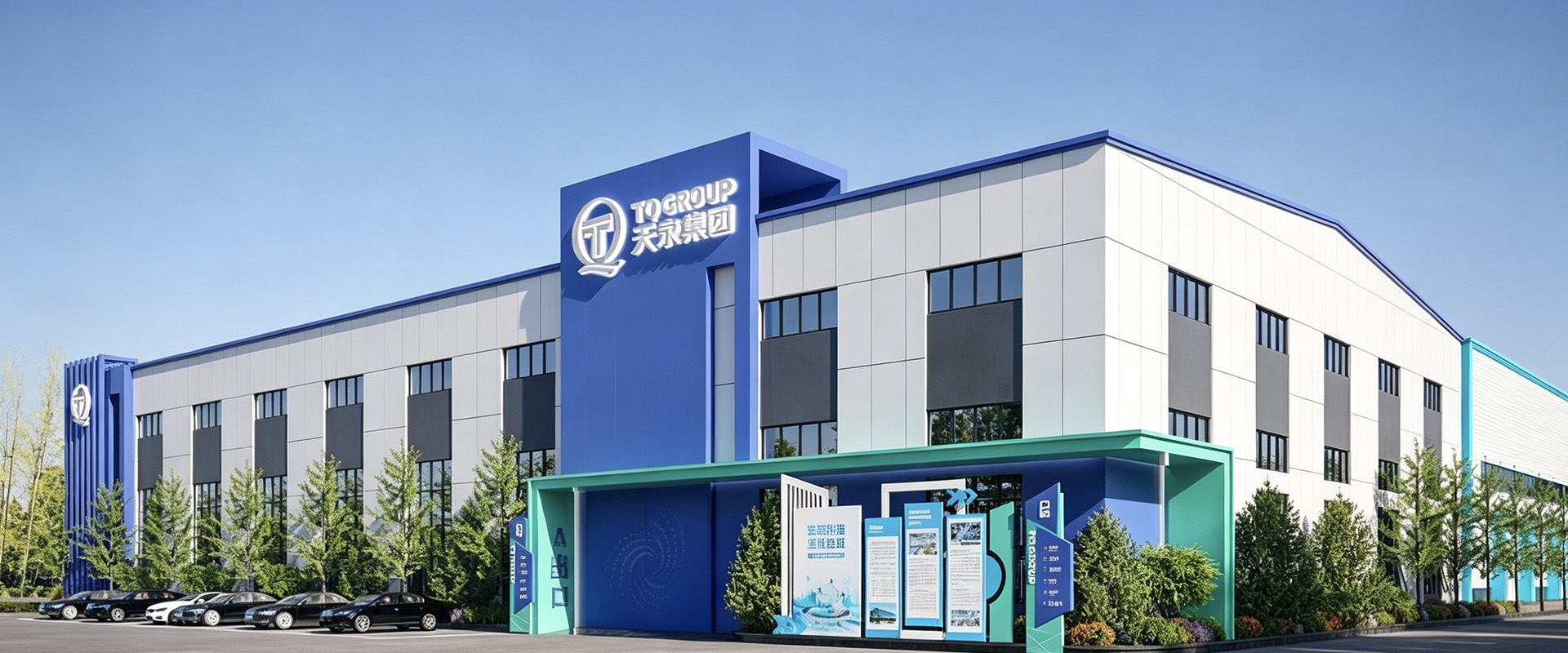

About TQPUMPS

We are commercial and industrial centrifugal pumps manufacturer since 1997 located in China, producing pump ranges including inline pumps, sewage pumps, end suction pumps, double suction split casing pumps and firefighting pumps.

As a vertically integrated factory with our own in-house motor manufacturing and casting foundry, we are able to offer highly competitive pricing and comprehensive warranty services.

Our advanced manufacturing processes are operating according to ISO 9001, ISO 14001, and ISO 45001 standards, and our products are fully certified by TUV, CE, EAC and RoHS.

Join TQ PUMP's Global Dealer Network

Build Your Business With Us

High-Profit Differentiated Products

International Standards Compliance

Exclusive Territory Protection

Full Marketing & Technical Support

$TQPUMPS\'s global partners$

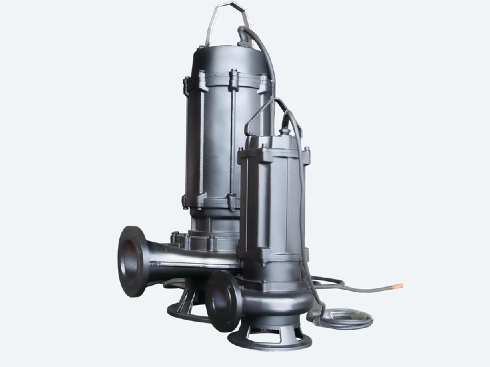

How To Choose Sewage Pumps for Municipal Wastewater Treatment Plants
High stakes in municipal wastewater management mean failure is never an option. A single equipment breakdown often triggers environmental compliance violations, dangerous emergency overflows, and severe operational disruptions. You need machinery capable of enduring harsh conditions continuously. Read More
Fire Pump System Requirements for Commercial Building Fire Protection
Facility managers, property developers, and MEP engineers intimately know the high stakes of fire protection. Failing to meet rigorous fire code standards delays occupancy permits and inflates insurance premiums. Read More

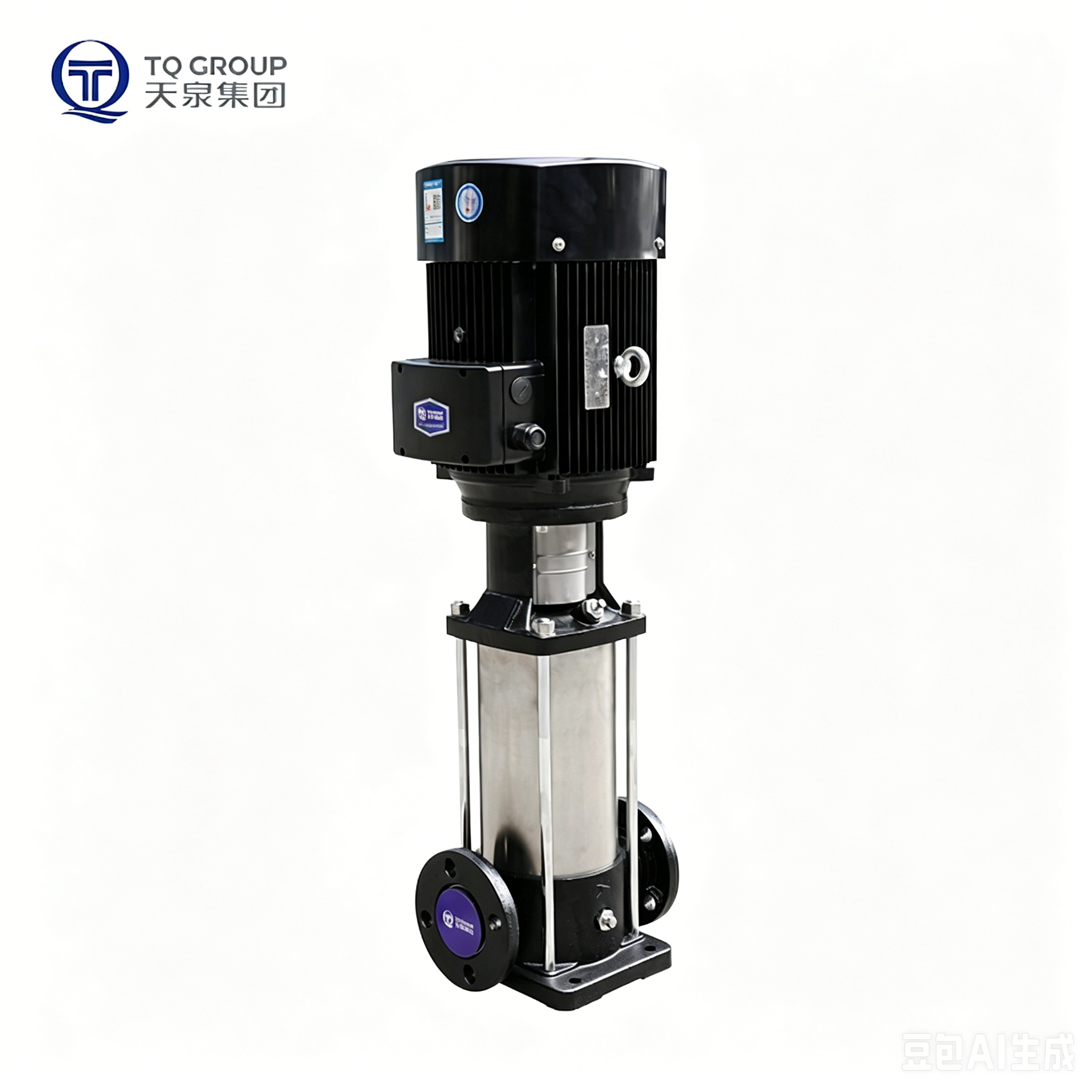

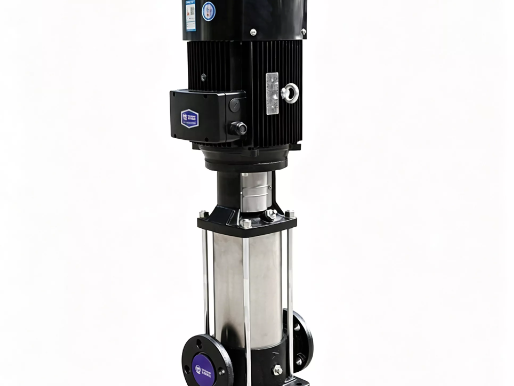

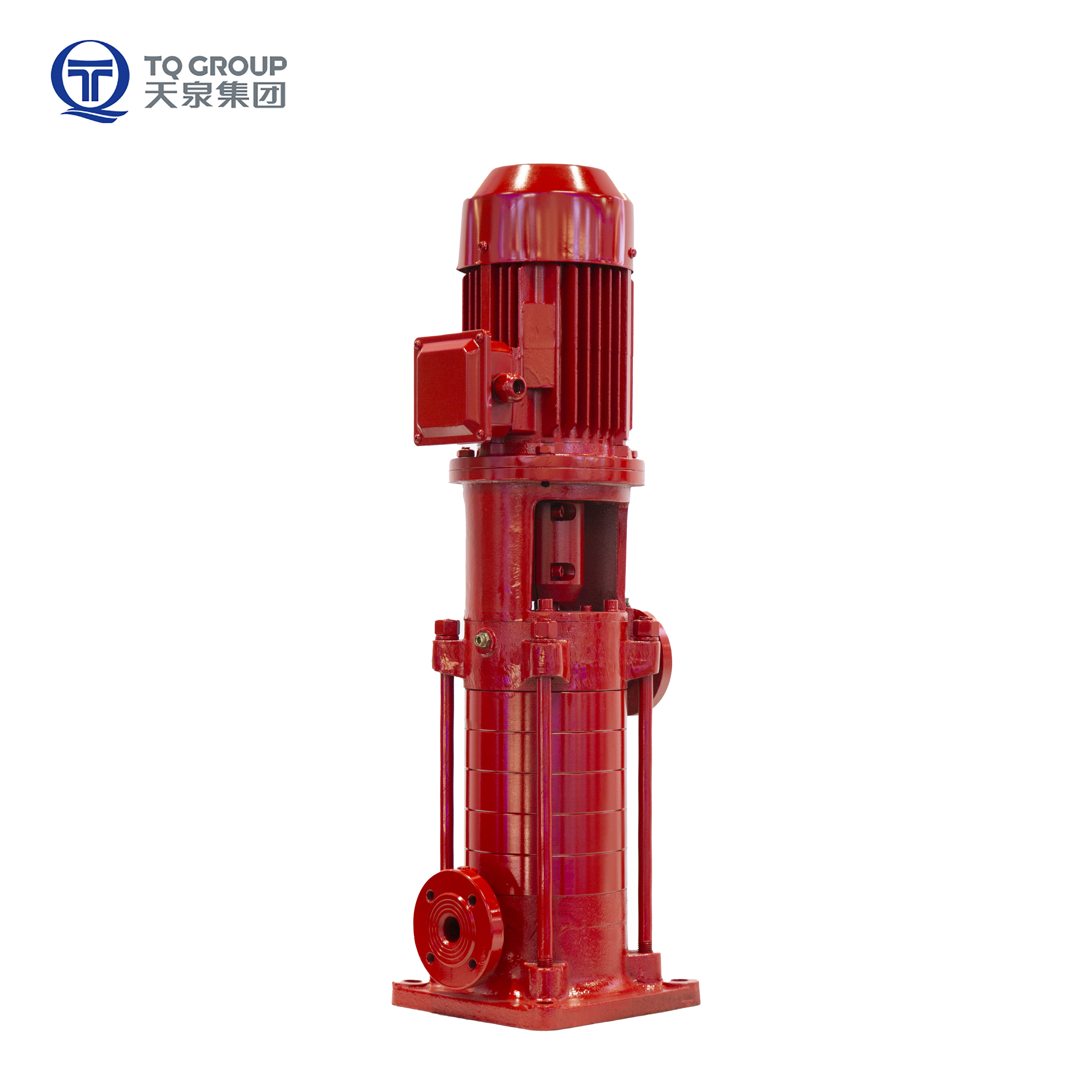

Vertical Multistage Pump Applications for High Pressure Water Boosting
Scaling modern water infrastructure presents a stubborn physical challenge. Increasing vertical reach or boosting filtration density requires exponential pressure generation. However, mechanical room real estate remains severely finite. Read More

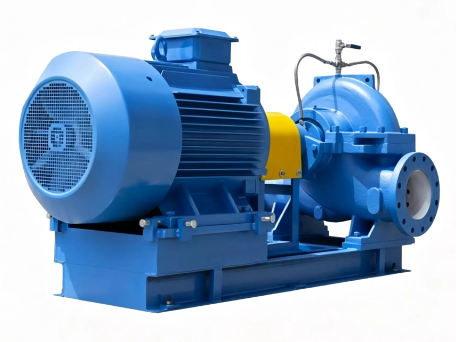

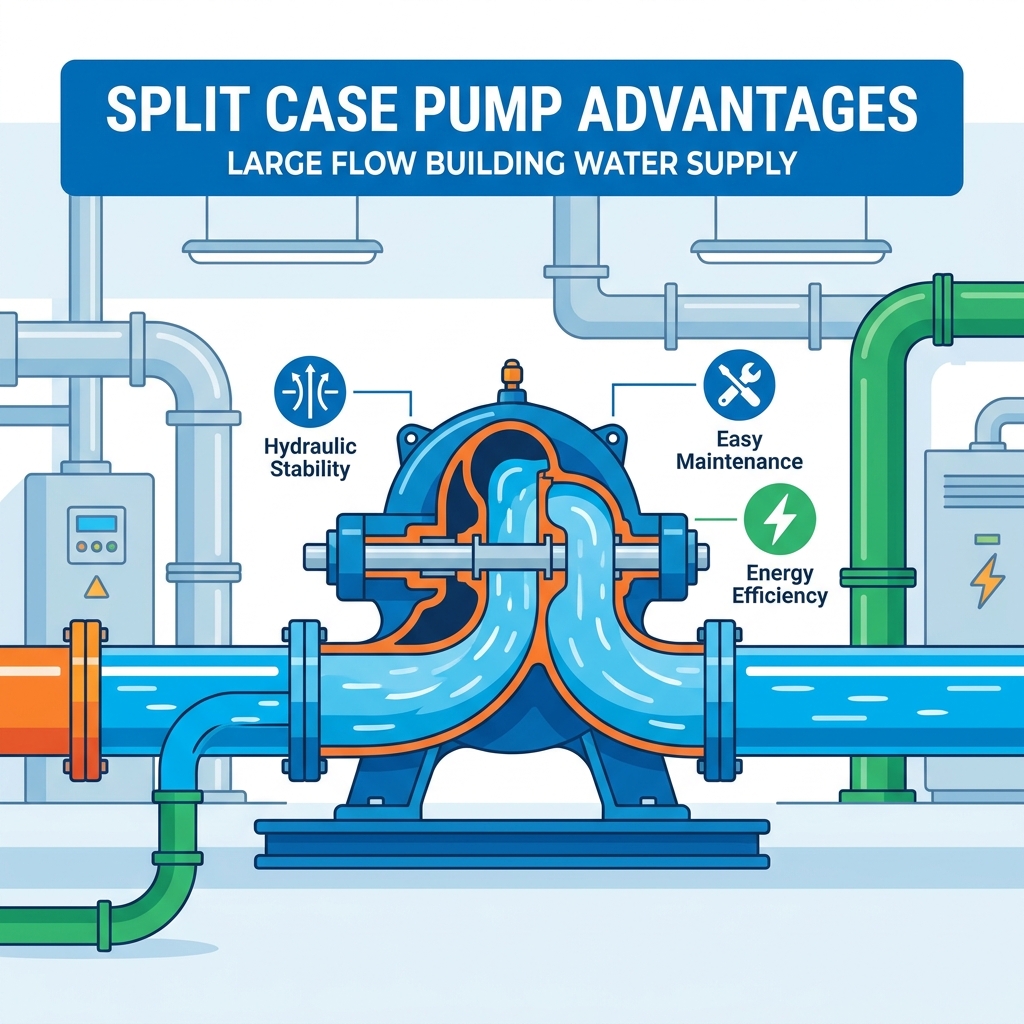

Split Case Pump Advantages for Large Flow Building Water Supply
Designing fluid networks for massive facilities carries extremely high stakes. You must balance continuous high-volume water demand against strict energy efficiency regulations and tight maintenance schedules. Read More
