Horizontal Single Stage End Suction Fire Pump for EDJ Packaged Fire Pump System

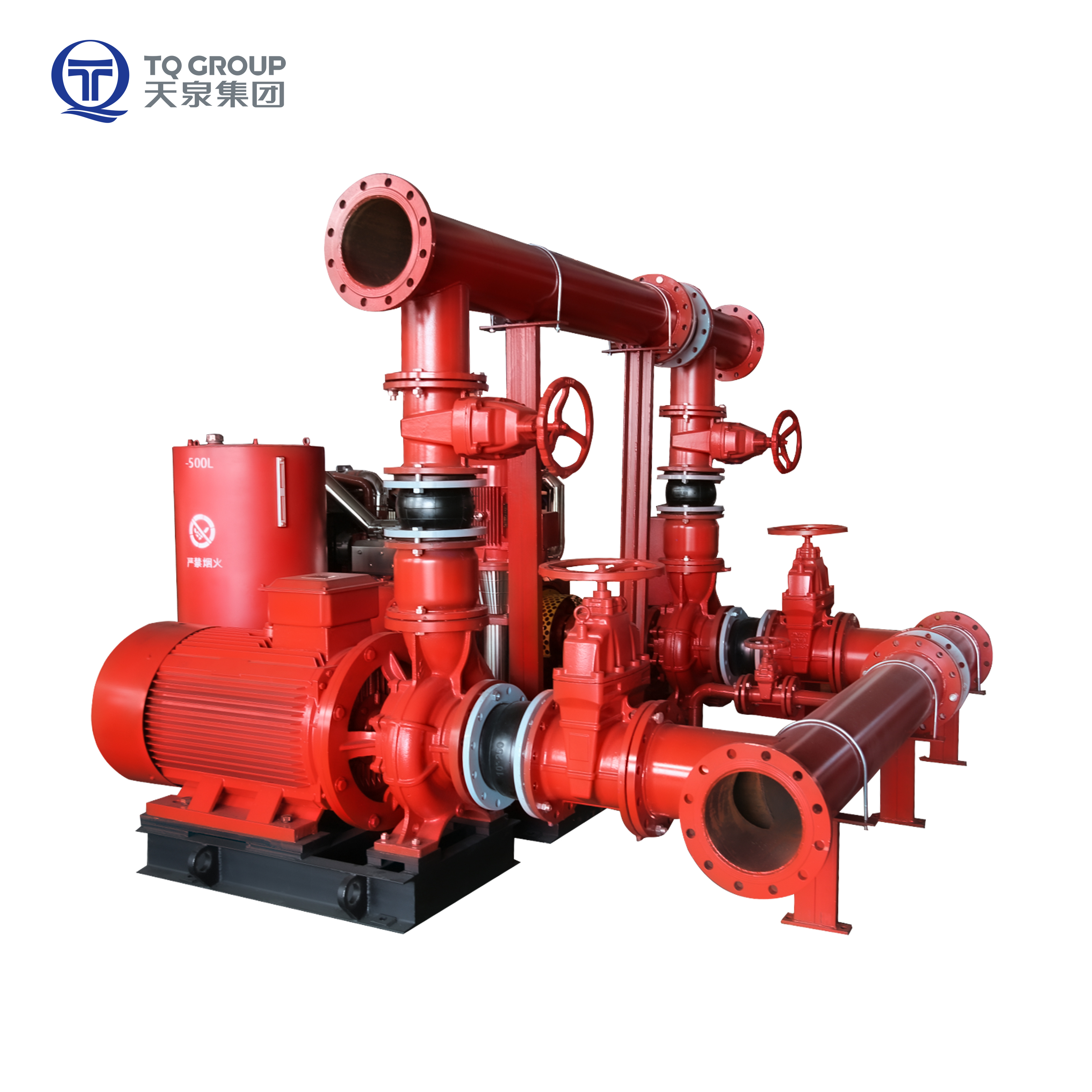

Packaged Fire Pump System EDJ | NFPA20 Compliant Diesel + Electric

EDJ Packaged Fire Pump System consists of a main electric pump(driven by electric motor), standby diesel pump(driven by diesel engine), and a multistage jockey pump.Pumps are assembled with both discharge and suction manifolds, wired to the control system and mounted on a common steel. The product has a compact design and small footprint, saving space in the pump room. After simply connecting the water and power supplies on site, the unit is immediately operational. In addition to the standard design. It can also be adapted according to the on-site requirements of the pump room.

Application:

This fire pump set can be used for fire sprinkler system, fire hydrant system and automatic sprinkler system in factory, shopping mall, high rise buildings, airports, warehouses, ports and villas etc.
Suitable for data centers & server rooms, hospitals & healthcare facilities, oil & gas facilities and municipal fire protection systems.

Quantity:
Availability:





Inquiry Add to Basket

Model:
TEDJ

Product Description

Working Principle

Product Structure

FAQ

Product Desciption

Product Feature

1. Dual-Power Drive System

- Equipped with both diesel engine and electric motor drives, ensuring reliable operation even during power outages.

- Automatic or manual switch between power sources for uninterrupted firefighting.

2. Hydraulic Pressure Stabilization

- Integrated hydraulic stabilizer maintains consistent water pressure, preventing surges and ensuring smooth operation.

3. High Efficiency & Performance

- Powerful diesel engine (compliance with CE standards) and high-efficiency electric motor for optimal performance.

- Capable of delivering high flow rates and pressure for demanding firefighting scenarios.

4. Automatic Control & Monitoring

- Advanced control panel with auto-start/stop, fault alarms, and real-time monitoring of pressure, temperature, and fuel levels.

- Optional remote control & IoT connectivity for smart operation.

5. Robust & Reliable Construction

- Heavy-duty steel frame with anti-corrosion coating for durability.

- Shock-resistant and vibration-damped design for long service life.

6. Quick Response & Emergency Ready

- Fast-start diesel engine (cold start capability) and instant electric motor activation.

- Complies with NFPA20 standards (rated point, 1.5 times flow point, power, shut off point power) for fire protection systems.

- Self-cooling system and optimized fuel consumption for extended operation.

- Easy-access components for simplified maintenance.

-Can ensure maximum reliability, efficiency, and safety in critical firefighting operations.

侧面1_副本

Why Choose Packaged Firefighting Pump Set over single pumps?
Model Meaning

Technical Parameters

	Flow Q			Head H		Motor Driven Horizontal End Suction			Diesel Engine Horizontal End Suction
Item No.	US.GPM	m³/h	L/S	Bar	PSI	Model	KW	HP	Model	KW	HP	RPM
1	250	57	16	6	87	XBD6.0/15G-TQW	18.5	25	XBC6.0/15G-TQW	45	60	3000
2	250	57	16	7	101.5	XBD7.0/15G-TQW	22	30	XBC7.0/15G-TQW	45	60	3000
3	250	57	16	8	116	XBD8.0/15G-TQW	22	30	XBC8.0/15G-TQW	45	60	3000
4	250	57	16	9	130.5	XBD9.0/15G-TQW	22	30	XBC9.0/15G-TQW	45	60	3000
5	250	57	16	10	145	XBD10.0/15G-TQW	30	40	XBC10.0/15G-TQW	45	60	3000
6	250	57	16	11	159.5	XBD11.0/15G-TQW	30	40	XBC11.0/15G-TQW	45	60	3000
7	250	57	16	12	174	XBD12.0/15G-TQW	30	40	XBC12.0/15G-TQW	55	75	3000
8	300	68	20	6	87	XBD6.0/20G-TQW	30	40	XBC6.0/20G-TQW	45	60	3000
9	300	68	20	7	101.5	XBD7.0/20G-TQW	30	40	XBC7.0/20G-TQW	45	60	3000
10	300	68	20	8	116	XBD8.0/20G-TQW	37	50	XBC8.0/20G-TQW	45	60	3000
11	300	68	20	9	130.5	XBD9.0/20G-TQW	45	60	XBC9.0/20G-TQW	55	75	3000
12	300	68	20	10	145	XBD10.0/20G-TQW	45	60	XBC10.0/20G-TQW	55	75	3000
13	300	68	20	11	159.5	XBD11.0/20G-TQW	45	60	XBC11.0/20G-TQW	75	100	3000
14	300	68	20	12	174	XBD12.0/20G-TQW	55	75	XBC12.0/20G-TQW	75	100	3000
15	400	91	25	6	87	XBD6.0/25G-TQW	30	40	XBC6.0/25G-TQW	45	60	3000
16	400	91	25	7	101.5	XBD7.0/25G-TQW	30	40	XBC7.0/25G-TQW	45	60	3000
17	400	91	25	8	116	XBD8.0/25G-TQW	37	50	XBC8.0/25G-TQW	45	60	3000
18	400	91	25	9	130.5	XBD9.0/25G-TQW	45	60	XBC9.0/25G-TQW	55	75	3000
19	400	91	25	10	145	XBD10.0/25G-TQW	45	60	XBC10.0/25G-TQW	55	75	3000
20	400	91	25	11	159.5	XBD11.0/25G-TQW	55	75	XBC11.0/25G-TQW	75	100	3000
21	400	91	25	12	174	XBD12.0/25G-TQW	55	75	XBC12.0/25G-TQW	75	100	3000
22	500	114	32	6	87	XBD6.0/30G-TQW	30	40	XBC6.0/30G-TQW	45	60	3000
23	500	114	32	7	101.5	XBD7.0/30G-TQW	37	50	XBC7.0/30G-TQW	45	60	3000
24	500	114	32	8	116	XBD8.0/30G-TQW	37	50	XBC8.0/30G-TQW	55	75	3000
25	500	114	32	9	130.5	XBD9.0/30G-TQW	45	60	XBC9.0/30G-TQW	55	75	3000
26	500	114	32	10	145	XBD10.0/30G-TQW	45	60	XBC10.0/30G-TQW	75	100	3000
27	500	114	32	11	159.5	XBD11.0/30G-TQW	55	75	XBC11.0/30G-TQW	75	100	3000
28	500	114	32	12	174	XBD12.0/30G-TQW	75	100	XBC12.0/30G-TQW	90	125	3000
29	600	136	38	6	87	XBD6.0/40G-TQW	37	50	XBC6.0/40G-TQW	55	75	3000
30	600	136	38	7	101.5	XBD7.0/40G-TQW	55	75	XBC7.0/40G-TQW	55	75	3000
31	600	136	38	8	116	XBD8.0/40G-TQW	45	60	XBC8.0/40G-TQW	75	100	3000
32	600	136	38	9	130.5	XBD9.0/40G-TQW	75	100	XBC9.0/40G-TQW	90	125	3000
33	600	136	38	10	145	XBD10.0/40G-TQW	75	100	XBC10.0/40G-TQW	100	136	3000
34	600	136	38	11	159.5	XBD11.0/40G-TQW	90	125	XBC11.0/40G-TQW	110	150	1500
35	600	136	38	12	174	XBD12.0/40G-TQW	90	125	XBC12.0/40G-TQW	110	150	1500
36	750	170	47	6	87	XBD6.0/50G-TQW	55	75	XBC6.0/50G-TQW	75	100	3000
37	750	170	47	7	101.5	XBD7.0/50G-TQW	55	75	XBC7.0/50G-TQW	75	100	3000
38	750	170	47	8	116	XBD8.0/50G-TQW	75	100	XBC8.0/50G-TQW	90	125	3000
39	750	170	47	9	130.5	XBD9.0/50G-TQW	75	100	XBC9.0/50G-TQW	100	136	3000
40	750	170	47	10	145	XBD10.0/50G-TQW	90	125	XBC10.0/50G-TQW	100	136	3000
41	750	170	47	11	159.5	XBD11.0/50G-TQW	90	125	XBC11.0/50G-TQW	110	150	1500
42	750	170	47	12	174	XBD12.0/50G-TQW	110	150	XBC12.0/50G-TQW	110	150	1500
43	1000	227	63	6	87	XBD6.0/60G-TQW	55	75	XBC6.0/60G-TQW	90	125	3000
44	1000	227	63	7	101.5	XBD7.0/60G-TQW	75	100	XBC7.0/60G-TQW	90	125	3000
45	1000	227	63	8	116	XBD8.0/60G-TQW	90	125	XBC8.0/60G-TQW	100	136	3000
46	1000	227	63	9	130.5	XBD9.0/60G-TQW	110	150	XBC9.0/60G-TQW	110	150	1500
47	1000	227	63	10	145	XBD10.0/60G-TQW	110	150	XBC10.0/60G-TQW	135	184	1500
48	1000	227	63	11	159.5	XBD11.0/60G-TQW	132	180	XBC11.0/60G-TQW	135	184	1500
49	1000	227	63	12	174	XBD12.0/60G-TQW	132	180	XBC12.0/60G-TQW	155	211	1500
50	1250	284	80	6	87	XBD6.0/80G-TQW	90	125	XBC6.0/80G-TQW	110	150	1500
51	1250	284	80	7	101.5	XBD7.0/80G-TQW	110	150	XBC7.0/80G-TQW	110	150	1500
52	1250	284	80	8	116	XBD8.0/80G-TQW	110	150	XBC8.0/80G-TQW	135	184	1500
53	1250	284	80	9	130.5	XBD9.0/80G-TQW	132	180	XBC9.0/80G-TQW	155	211	1500
54	1250	284	80	10	145	XBD10.0/80G-TQW	160	220	XBC10.0/80G-TQW	155	211	1500
55	1250	284	80	11	159.5	XBD11.0/80G-TQW	160	220	XBC11.0/80G-TQW	176	239	1500
56	1250	284	80	12	174	XBD12.0/80G-TQW	185	250	XBC12.0/80G-TQW	235	320	1500
57	1250	284	80	13	188.5	XBD13.0/80G-TQW	200	270	XBC13.0/80G-TQW	235	320	1500
58	1500	341	95	6.5	94.25	XBD6.5/100G-TQW	110	150	XBC6.5/100G-TQW	135	184	1500
59	1500	341	95	7	101.5	XBD7.0/100G-TQW	132	180	XBC7.0/100G-TQW	155	211	1500
60	1500	341	95	8	116	XBD8.0/100G-TQW	160	220	XBC8.0/100G-TQW	176	239	1500
61	1500	341	95	9	130.5	XBD9.0/100G-TQW	160	220	XBC9.0/100G-TQW	235	320	1500
62	1500	341	95	10	145	XBD10.0/100G-TQW	185	250	XBC10.0/100G-TQW	235	320	1500
63	1500	341	95	11	159.5	XBD11.0/100G-TQW	200	270	XBC11.0/100G-TQW	235	320	1500
64	1500	341	95	12	174	XBD12.0/100G-TQW	220	300	XBC12.0/100G-TQW	288	392	1500
65	1750	400	110	6	87	XBD6.0/110G-TQW	110	150	XBC6.0/110G-TQW	135	184	1500
66	1750	400	110	7	101.5	XBD7.0/110G-TQW	132	180	XBC7.0/110G-TQW	135	184	1500
67	1750	400	110	8	116	XBD8.0/110G-TQW	132	180	XBC8.0/110G-TQW	155	211	1500
68	1750	400	110	9	130.5	XBD9.0/110G-TQW	160	220	XBC9.0/110G-TQW	235	320	1500
69	1750	400	110	10	145	XBD10.0/110G-TQW	160	220	XBC10.0/110G-TQW	235	320	1500
70	1750	400	110	11	159.5	XBD11.0/110G-TQW	185	250	XBC11.0/110G-TQW	235	320	1500
71	1750	400	110	12	174	XBD12.0/110G-TQW	220	300	XBC12.0/110G-TQW	288	392	1500
72	2000	455	130	6	87	XBD6.0/130G-TQW	132	180	XBC6.0/130G-TQW	155	211	1500
73	2000	455	130	7	101.5	XBD7.0/130G-TQW	160	220	XBC7.0/130G-TQW	235	320	1500
74	2000	455	130	8	116	XBD8.0/130G-TQW	160	220	XBC8.0/130G-TQW	235	320	1500
75	2000	455	130	9	130.5	XBD9.2/130G-TQW	220	300	XBC9.2/130G-TQW	235	320	1500
76	2000	455	130	10	145	XBD10.0/130G-TQW	200	270	XBC10.0/130G-TQW	235	320	1500
77	2000	455	130	11	159.5	XBD11.0/130G-TQW	220	300	XBC11.0/130G-TQW	288	392	1500
78	2000	455	130	12	174	XBD12.0/130G-TQW	250	340	XBC12.0/130G-TQW	288	392	1500

Working Principle

Working Principle

The complete packaged Fire Pump contains a diesel engine fire pump, a electric fire pump, a pressure maintenance, valves, pipes and sensor as well as controller.

The automatic working principle is as followed:

Generally, the pipeline network pressure is between P1 (low pressure set) and P2 (high pressure set). Due to leakage of pipeline network or other reasons, P2 slowly drops to P1. Daily, the jockey pump will run to maintain the pressure between P1 and P2, minimizing the main pump starts. The start and stop of jockey pump is controlled by the signal from the pressure switch or pressure transmitter on the pipeline.
When the water consumption increases,and jockey pump is not able to maintain the basicline pressure P1 and quickly drops to P3, the electric pump will automatically start. The electric fire pump is as main fire pump to supply water and automatically started by the digital signal(l/O) by the pressure switch,flowmeter, alarm valve, pressure gauge and other sensors on pipeline.
When electricity supply stops or electric fire pump fails to start,the pressure continues dropping, then the diesel engine pump will be automatically started and pressure rises to supply water. The electric pump or diesel pump must be manually stopped after manual judgment.
The diesel engine fire pump has both manual and automatic control mode. Manual control is used for equipment inspection,maintenance,and on-site operation. The automatic control mode is operated by the integrated control cabinet or fire control center.

Product Structure

end suction pump

Product Structure_副本

accessories

Item No.	Part Names	Spec./Material	Qty.
Item No.	Part Names	Spec./Material	Qty.
1	Common Base	Carbon Steel	1
2	Support Rod of Discharge Manifold	Carbon Steel	2
3	Diesel Pump Head	Sub assembly	1
4	Relief Valve	Cast Iron	1
5	Flexible Joint	Rubber&Cast Iron	2
6	Fuel Tank	6hr operation	1
7	Diesel Engine	Sub assembly	1
8	Electric Pump Controller	Sub assembly	1
	Jockey Pump Controller	Sub assembly	1
	Diesel Pump Controller	Sub assembly	1
9	Pressure Vessel	Sub assembly	1
10	Jockey Pump Check Valve	Cast Iron	1
11	Jockey Pump Gate Valve	Cast Iron	1
12	Jockey Pump	Stainless steel	1
13	Pressure Gauge	0-16 bar	1
14	Tee Plug Valve	Brass DN15	1
15	Pressure Switch	0-16 bar	3
16	Discharge Manifold (pipeline)	Carbon Steel	1
17	Gate Valve	Cast Iron	2
18	Check Valve	Cast Iron	2
19	OS&Y Valve	Cast Iron	2
20	Electric Pump	Sub assembly	1
21	Suction Manifold(pipeline)	Carbon Steel	1
22	Batteries	1 duty 1 standby	2
