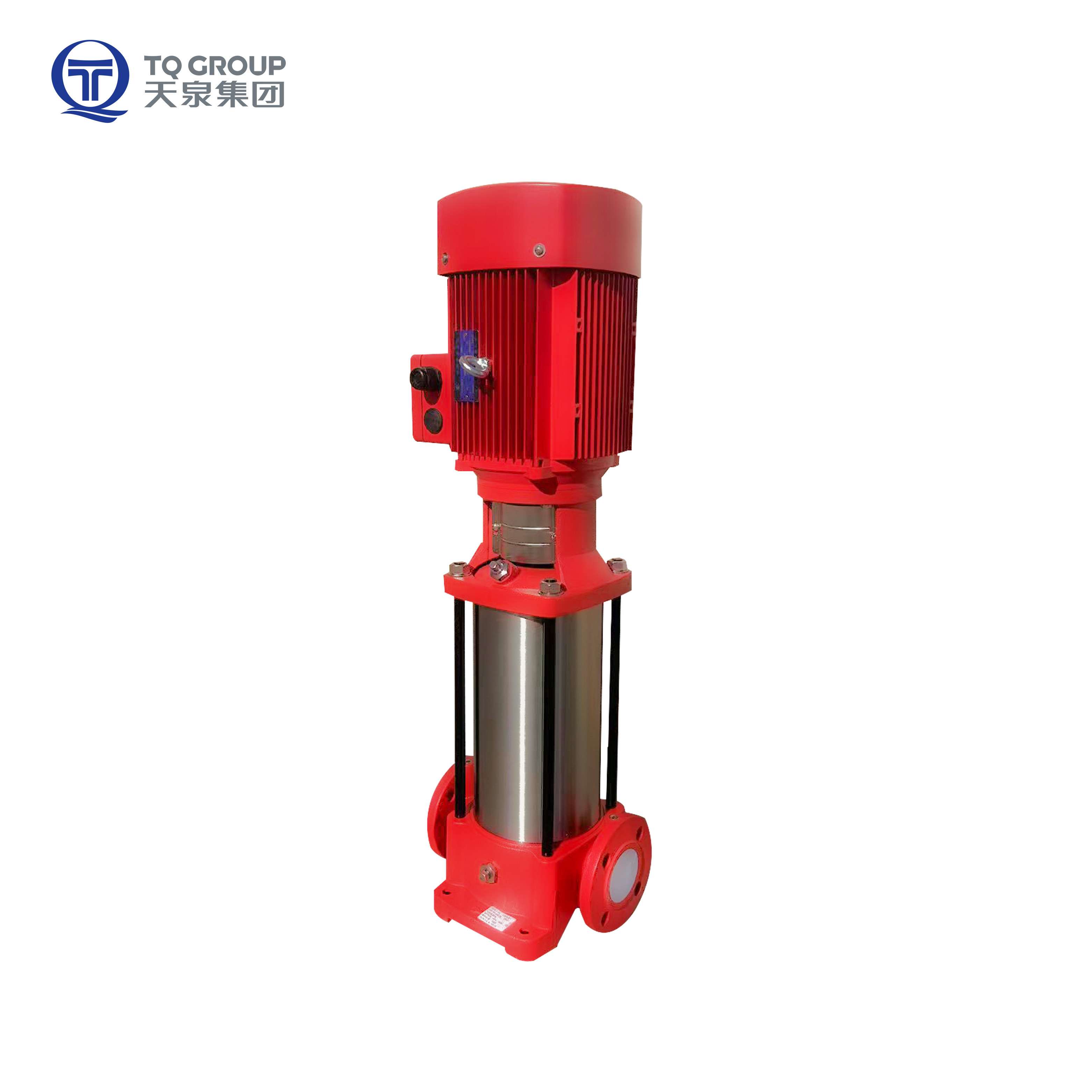

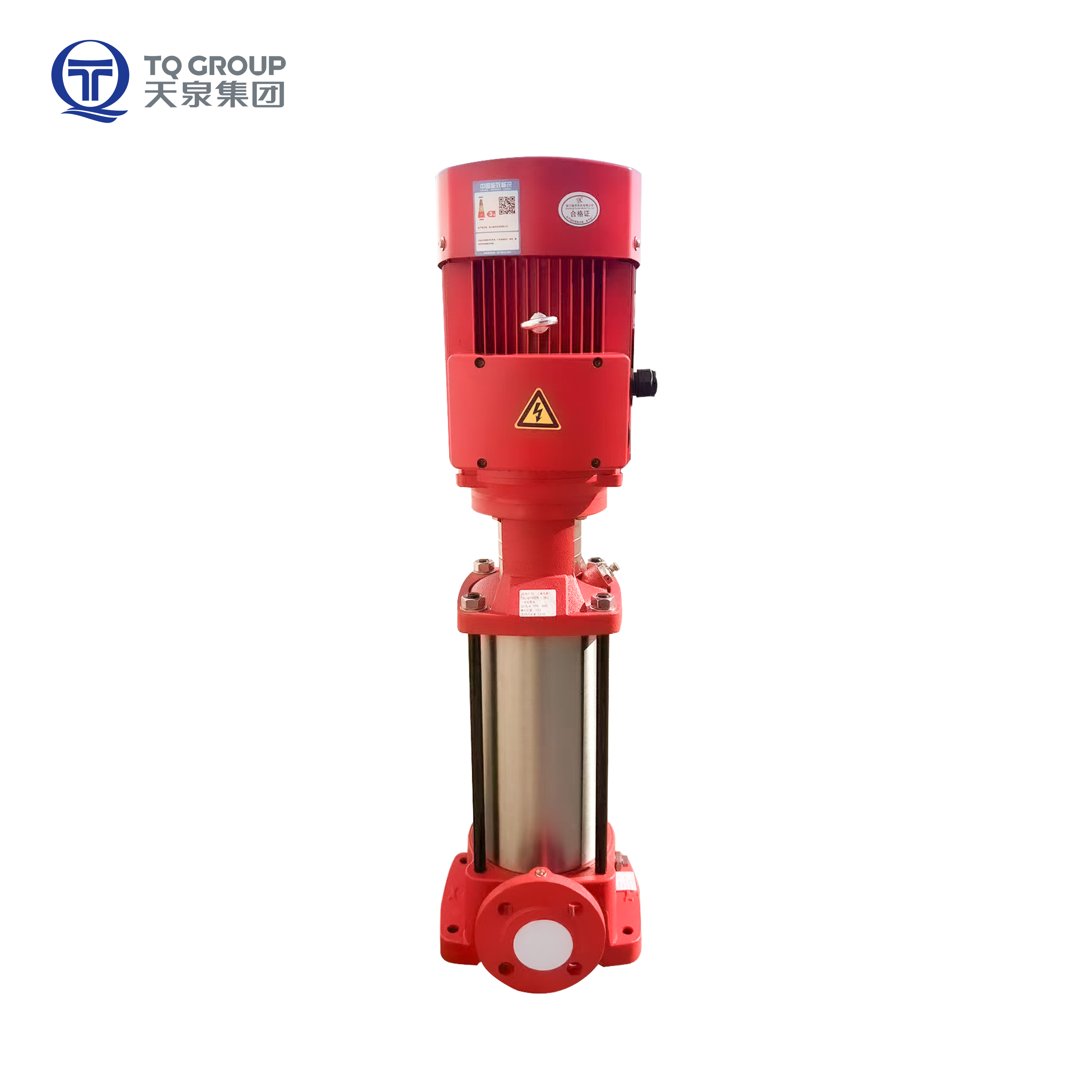

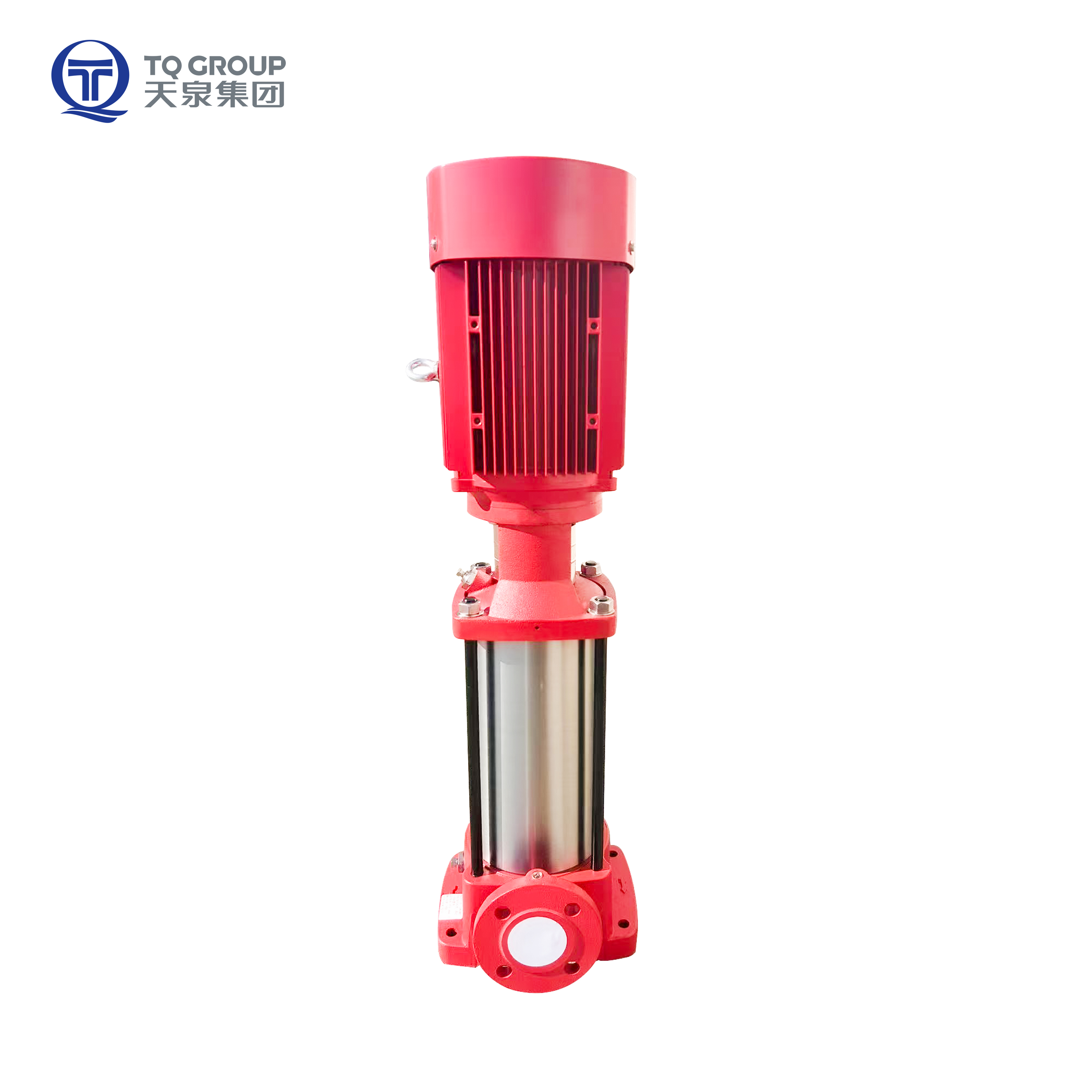

XBD-TDL Vertical Multistage Fire Pump | Fire Booster & Jockey Pump

XBD-TDL Vertical Multi-stage Centrifugal Pump is a new generation product developed according to the standards for water supply and drainage in high-rise buildings and Chinese fire standards. Due to the adoption of an efficient and energy-saving superior hydraulic model, this type of pump has the advantages of high efficiency and a wide range of performance. Moreover, the model is optimized with a more rational distribution, which can better meet the fire protection needs of different floors and Pipe Resistance.

Application

This type of pump is particularly suitable for high-rise buildings such as residential buildings, hospitals, hotels, department stores, office buildings, etc., for water supply and drainage, fire fighting water booster or jockey systems, long-distance transportation, and water use in production process circulation.

Quantity:
Availability:





Inquiry Add to Basket Download

Model:
XBD-TDL

Product Features

Product Structure

Hydraulic Performance

FAQ

XBD-TDL Vertical Multistage Fire Pump | Fire Booster & Jockey (Pressure-Maintenance) Pump

Product Features

Space-saving vertical design ：Vertical multistage construction with inline suction and discharge - it mounts in the pipeline almost like a valve, occupying minimal floor space. Ideal for high-rise pump rooms and retrofit projects.
Fast, low-cost maintenance ：The cartridge mechanical seal is the main wearing part and can be replaced without disassembling the motor ("easy to dismantle"). No adjustment is needed on assembly; disassembly, inspection and repair are all straightforward, cutting downtime and service cost.
High efficiency, lower running cost ：An optimized hydraulic model delivers high efficiency over a wide flow/head range; IE3 motors keep energy consumption low over the pump's service life.
Stable and quiet ：Radial and axial forces are hydraulically balanced and supported by precision bearings, ensuring smooth, low-vibration, low-noise operation.
Durable and adaptable ：Mechanical seal, air-cooled motor, IP55 protection and class-F insulation; handles media from -15 °C to 105 °C and working pressures up to PN16/PN25.
Wide coverage, flexible selection ：More than 100 standard models from DN25 to DN50, 1-5 L/s and 30-200 m, with custom duty points available on request.

Technical Parameters

Max Flow	5 L/S	Voltage	380 v
Max Head	200 m	Frequency	50 HZ
Speed	2950	Max Motor Power	18.5kW
Structure	VERTICAL	Mounting type	V1
Outlet Diameter	DN25-DN50	Efficiency Level	IE3
Sealing type	MECHANICAL SEAL	Insulation Class	F
Working Pressure Max	PN16/PN25	Protection Class	IP55
Liquid Temperature	-15°C~105°C	Cooling Method	AIR-COOLED
Product Certificate	CE	Thermal Protection	/

Product Structure

The XBD-TDL is designed for both strength and serviceability:

• Multi-stage impeller assembly - a series of high-efficiency impellers stacked on a common shaft; each stage adds pressure, delivering high head in a compact vertical footprint.

• Inline suction and discharge at the same diameter - the pump installs directly into the pipeline like a valve, keeping the pump room tidy and saving space.

• Cartridge mechanical seal - the main wearing part, replaceable without removing the motor.

• High-efficiency IE3 motor - air-cooled, class-F insulation, IP55 protection.

• Precision bearing support - radial and axial forces are hydraulically balanced for low vibration and quiet running.

• Outlet DN25-DN50 with standard flanged connections.

Model Meaning

Part	Meaning
XBD	Fire pump, electric-motor driven , series name
3.0	10 × rated pressure (MPa) → 0.30 MPa ≈ 30 m head
1W	1 = rated flow 1 L/s; W = pressure-maintenance
TDL	Series code for the vertical multi-stage pump

Model Selection

Define the duty point - required flow (L/s) and head (m) at the design condition, plus available NPSH and the project's motor voltage/frequency.
Pick the nearest standard model from the performance table. When two models are close, prefer the one whose duty point sits near the high-efficiency range; standard-impeller and high-speed pumps are generally preferred, provided NPSH is satisfied.
For pressure-maintenance duty, choose a W-series model sized to hold system pressure and compensate leakage - typically 1-2 L/s at a head slightly above the main fire pump's shut-off head.
If no specific jockey/pressure-maintenance duty is available, estimate it from the main fire pump: jockey pump flow ≈ 3%-5% of the main pump's rated flow, and jockey pump head ≈ 110% of the main pump's rated head.
Custom duty points - the catalog covers standard conditions only and does not limit selection. If your requirement is outside the table (different flow/head, high-voltage or special motors), contact our technical support: we design and manufacture to your actual requirements.

Hydraulic Performance

Item No.	Model	Diameter	Flow (L/S)	Head (m)	Power (KW)	Eff. （%）	(NPSH)r	Speed (RPM)
1	XBD3.0/1W-TDL	DN32	1	30	0.75	46	2.0	2900
2	XBD3.8/1W-TDL	DN32	1	38	1.1	46	2.0	2900
3	XBD4.0/1W-TDL	DN32	1	38	1.1	46	2.0	2900
4	XBD4.5/1W-TDL	DN32	1	45	1.1	46	2.0	2900
5	XBD5.0/1W-TDL	DN32	1	50	1.5	46	2.0	2900
6	XBD5.4/1W-TDL	DN32	1	54	1.5	46	2.0	2900
7	XBD6.0/1W-TDL	DN32	1	60	1.5	46	2.0	2900
8	XBD6.6/1W-TDL	DN32	1	66	1.5	46	2.0	2900
9	XBD7.0/1W-TDL	DN32	1	70	2.2	46	2.0	2900
10	XBD7.4/1W-TDL	DN32	1	74	2.2	46	2.0	2900
11	XBD8.0/1W-TDL	DN32	1	80	2.2	46	2.0	2900
12	XBD8.6/1W-TDL	DN32	1	86	2.2	46	2.0	2900
13	XBD9.0/1W-TDL	DN32	1	90	2.2	46	2.0	2900
14	XBD9.7/1W-TDL	DN32	1	97	2.2	46	2.0	2900
15	XBD10.5/1W-TDL	DN32	1	105	3	46	2.0	2900
16	XBD10.9/1W-TDL	DN32	1	109	3	46	2.0	2900
17	XBD11.5/1W-TDL	DN32	1	115	3	46	2.0	2900
18	XBD12.0/1W-TDL	DN32	1	120	3	46	2.0	2900
19	XBD12.5/1W-TDL	DN32	1	125	3	46	2.0	2900
20	XBD13.0/1W-TDL	DN32	1	130	3	46	2.0	2900
21	XBD13.5/1W-TDL	DN32	1	135	3	46	2.0	2900
22	XBD14.0/1W-TDL	DN32	1	140	3	46	2.0	2900
23	XBD15.0/1W-TDL	DN32	1	150	3	46	2.0	2900
24	XBD16.0/1W-TDL	DN32	1	160	4	46	2.0	2900
25	XBD17.5/1W-TDL	DN32	1	175	4	46	2.0	2900
26	XBD3.0/1.5W-TDL	DN32	1.5	30	1.1	48	2.0	2900
27	XBD3.8/1.5W-TDL	DN32	1.5	38	1.1	48	2.0	2900
28	XBD4.0/1.5W-TDL	DN32	1.5	40	1.5	48	2.0	2900
29	XBD4.5/1.5W-TDL	DN32	1.5	45	1.5	48	2.0	2900
30	XBD5.0/1.5W-TDL	DN32	1.5	50	1.5	48	2.0	2900
31	XBD5.4/1.5W-TDL	DN32	1.5	54	2.2	48	2.0	2900
32	XBD6.6/1.5W-TDL	DN32	1.5	66	2.2	48	2.0	2900
33	XBD7.4/1.5W-TDL	DN32	1.5	74	2.2	48	2.0	2900
34	XBD8.6/1.5W-TDL	DN32	1.5	86	3	48	2.0	2900
35	XBD9.7/1.5W-TDL	DN32	1.5	97	3	48	2.0	2900
36	XBD10.9/1.5W-TDL	DN32	1.5	109	4	48	2.0	2900
37	XBD12.0/1.5W-TDL	DN32	1.5	120	4	48	2.0	2900
38	XBD13.0/1.5W-TDL	DN32	1.5	130	4	48	2.0	2900
39	XBD14.0/1.5W-TDL	DN32	1.5	140	4	48	2.0	2900
40	XBD15.0/1.5W-TDL	DN32	1.5	150	4	48	2.0	2900
41	XBD3.0/2W-TDL	DN40	2	30	1.1	52	2.0	2900
42	XBD3.8/2W-TDL	DN40	2	38	1.5	52	2.0	2900
43	XBD4.5/2W-TDL	DN40	2	45	2.2	52	2.0	2900
44	XBD5.0/2W-TDL	DN40	2	50	2.2	52	2.0	2900
45	XBD5.4/2W-TDL	DN40	2	54	2.2	52	2.0	2900
46	XBD6.0/2W-TDL	DN40	2	60	3	52	2.0	2900
47	XBD6.6/2W-TDL	DN40	2	66	3	52	2.0	2900
48	XBD7.4/2W-TDL	DN40	2	74	3	52	2.0	2900
49	XBD8.6/2W-TDL	DN40	2	86	4	52	2.0	2900
50	XBD9.7/2W-TDL	DN40	2	97	4	52	2.0	2900
51	XBD10.9/2W-TDL	DN40	2	109	4	52	2.0	2900
52	XBD12.0/2W-TDL	DN40	2	120	5.5	52	2.0	2900
53	XBD13.0/2W-TDL	DN40	2	130	5.5	52	2.0	2900
54	XBD14.0/2W-TDL	DN40	2	140	5.5	52	2.0	2900
55	XBD15.0/2W-TDL	DN40	2	150	5.5	52	2.0	2900
56	XBD16.0/2W-TDL	DN40	2	160	7.5	52	2.0	2900
57	XBD17.0/2W-TDL	DN40	2	170	7.5	52	2.0	2900
58	XBD18.5/2W-TDL	DN40	2	185	7.5	52	2.0	2900
59	XBD3.0/2.5W-TDL	DN40	2.5	30	1.5	54	2.0	2900
60	XBD3.9/2.5W-TDL	DN40	2.5	39	2.2	54	2.0	2900
61	XBD4.6/2.5W-TDL	DN40	2.5	46	2.2	54	2.0	2900
62	XBD5.0/2.5W-TDL	DN40	2.5	50	2.2	54	2.0	2900
63	XBD5.4/2.5W-TDL	DN40	2.5	54	3	54	2.0	2900
64	XBD6.6/2.5W-TDL	DN40	2.5	66	3	54	2.0	2900
65	XBD7.4/2.5W-TDL	DN40	2.5	74	4	54	2.0	2900
66	XBD8.6/2.5W-TDL	DN40	2.5	86	4	54	2.0	2900
67	XBD9.7/2.5W-TDL	DN40	2.5	97	4	54	2.0	2900
68	XBD10.9/2.5W-TDL	DN40	2.5	109	5.5	54	2.0	2900
69	XBD3.0/3W-TDL	DN40	3	30	2.2	56	2.0	2900
70	XBD3.8/3W-TDL	DN40	3	38	2.2	56	2.0	2900
71	XBD4.5/3W-TDL	DN40	3	45	2.2	56	2.0	2900
72	XBD5.0/3W-TDL	DN40	3	50	3	56	2.0	2900
73	XBD5.4/3W-TDL	DN40	3	54	3	56	2.0	2900
74	XBD6.6/3W-TDL	DN40	3	66	4	56	2.0	2900
75	XBD7.4/3W-TDL	DN40	3	74	4	56	2.0	2900
76	XBD8.6/3W-TDL	DN40	3	86	4	56	2.0	2900
77	XBD9.7/3W-TDL	DN40	3	97	5.5	56	2.0	2900
78	XBD10.9/3W-TDL	DN40	3	109	5.5	56	2.0	2900
79	XBD12.0/3W-TDL	DN40	3	120	7.5	56	2.0	2900
80	XBD13.0/3W-TDL	DN40	3	130	7.5	56	2.0	2900
81	XBD14.0/3W-TDL	DN40	3	140	7.5	56	2.0	2900
82	XBD15.0/3W-TDL	DN40	3	150	7.5	56	2.0	2900
83	XBD6.5/4W-TDL	DN50	4	65	5.5	58	2.0	2900
84	XBD7.0/4W-TDL	DN50	4	70	5.5	58	2.0	2900
85	XBD8.0/4W-TDL	DN50	4	80	5.5	58	2.0	2900
86	XBD9.0/4W-TDL	DN50	4	90	7.5	58	2.0	2900
87	XBD10.5/4W-TDL	DN50	4	105	7.5	58	2.0	2900
88	XBD11.5/4W-TDL	DN50	4	115	11	58	2.0	2900
89	XBD12.5/4W-TDL	DN50	4	125	11	58	2.0	2900
90	XBD6.0/4.5W-TDL	DN50	4.5	60	5.5	60	2.0	2900
91	XBD8.2/4.5W-TDL	DN50	4.5	82	7.5	60	2.0	2900
92	XBD9.5/4.5W-TDL	DN50	4.5	9.5	11	60	2.0	2900
93	XBD7.0/5W-TDL	DN50	5	70	7.5	62	2.0	2900
94	XBD8.0/5W-TDL	DN50	5	80	7.5	62	2.0	2900
95	XBD9.0/5W-TDL	DN50	5	90	11	62	2.0	2900
96	XBD10.0/5W-TDL	DN50	5	100	11	62	2.0	2900
97	XBD11.0/5W-TDL	DN50	5	110	11	62	2.0	2900
98	XBD12.0/5W-TDL	DN50	5	120	11	62	2.0	2900
99	XBD13.0/5W-TDL	DN50	5	130	15	62	2.0	2900
100	XBD20.0/5W-TDL	DN50	5	200	18.5	62	2.0	2900

FAQs

What standards and certifications does this pump comply with?

The XBD-TDL is designed to Chinese fire-pump standards (GB 6245) and the water-supply/drainage requirements for high-rise buildings. Standard units carry CE certification. If your project requires other certifications or local approvals (for example China CCCF fire certification, UL/FM, or market-specific documentation), tell us your target market and we will confirm the correct version and provide the required documents.
Can this pump also be used for normal (non-fire) water supply?

Yes. The same series is widely used for high-rise building water supply and drainage, long-distance water transportation and production-process circulation, in addition to fire boosting and pressure-maintenance duty.
What is the difference between a fire pump and a pressure-maintenance (jocke) pump?

A fire pump is the main booster that delivers large flow during a fire to fight the fire. A pressure-maintenance (jockey) pump is a small pump that keeps the system pressurized and compensates for minor leakage, preventing the main fire pump from short-cycling. In our range, W-series XBD-TDL models are sized for pressure-maintenance duty (typically 1-2 L/s at a head slightly above the main pump's shut-off head), while higher-flow models handle main fire boosting. Many projects use the same XBD-TDL family for both roles.
How do I select the right model for my project?

Define your required flow and head, then match them to the nearest model in the hydraulic performance table. If your duty point is outside the catalog range, send it to our technical team - we can design and manufacture a custom model.
What is your warranty, lead time and MOQ?

Warranty: 24 months after ex-factory . Standard lead time: 7 days
MOQ: 2 units
Contact our sales team for current terms for your destination market.
