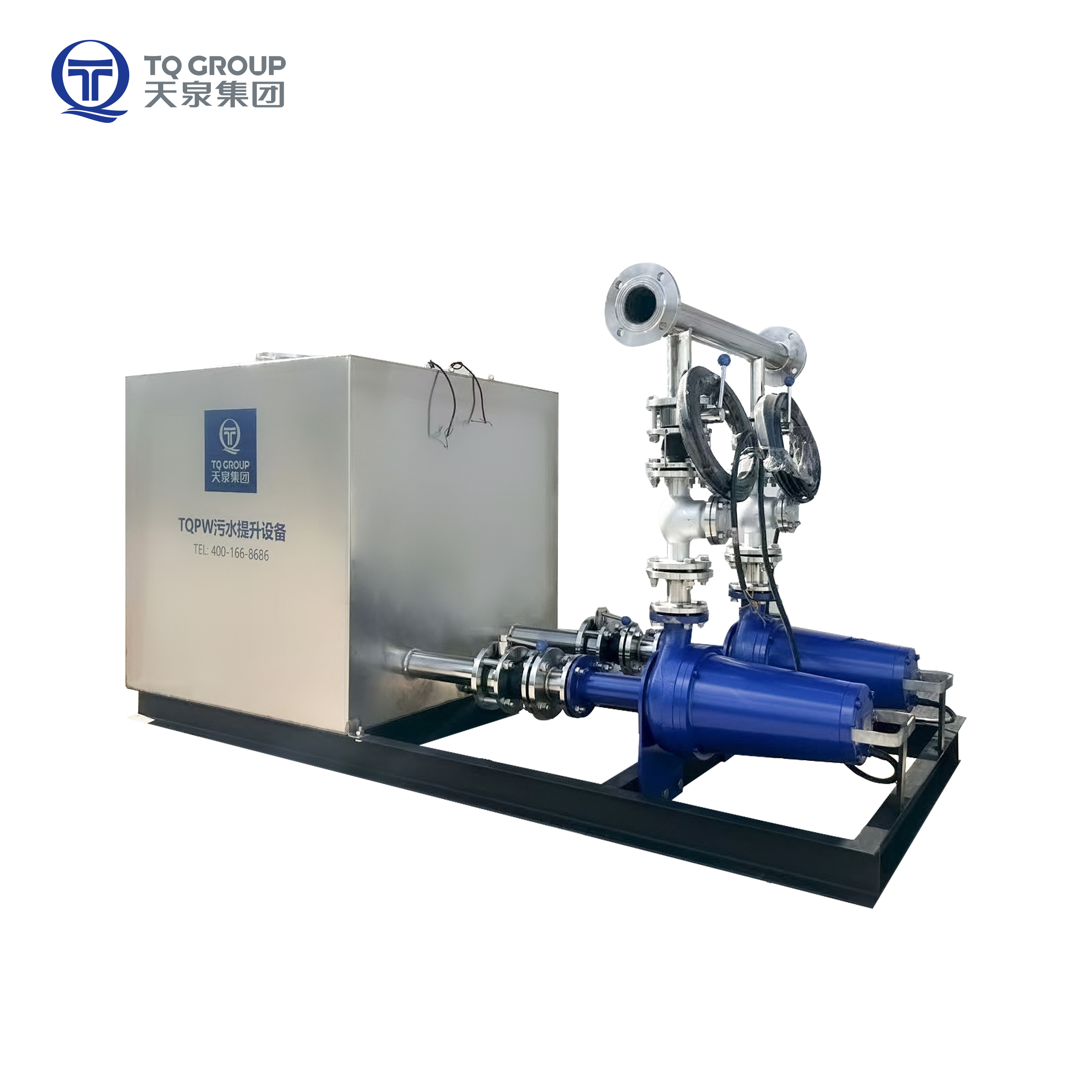

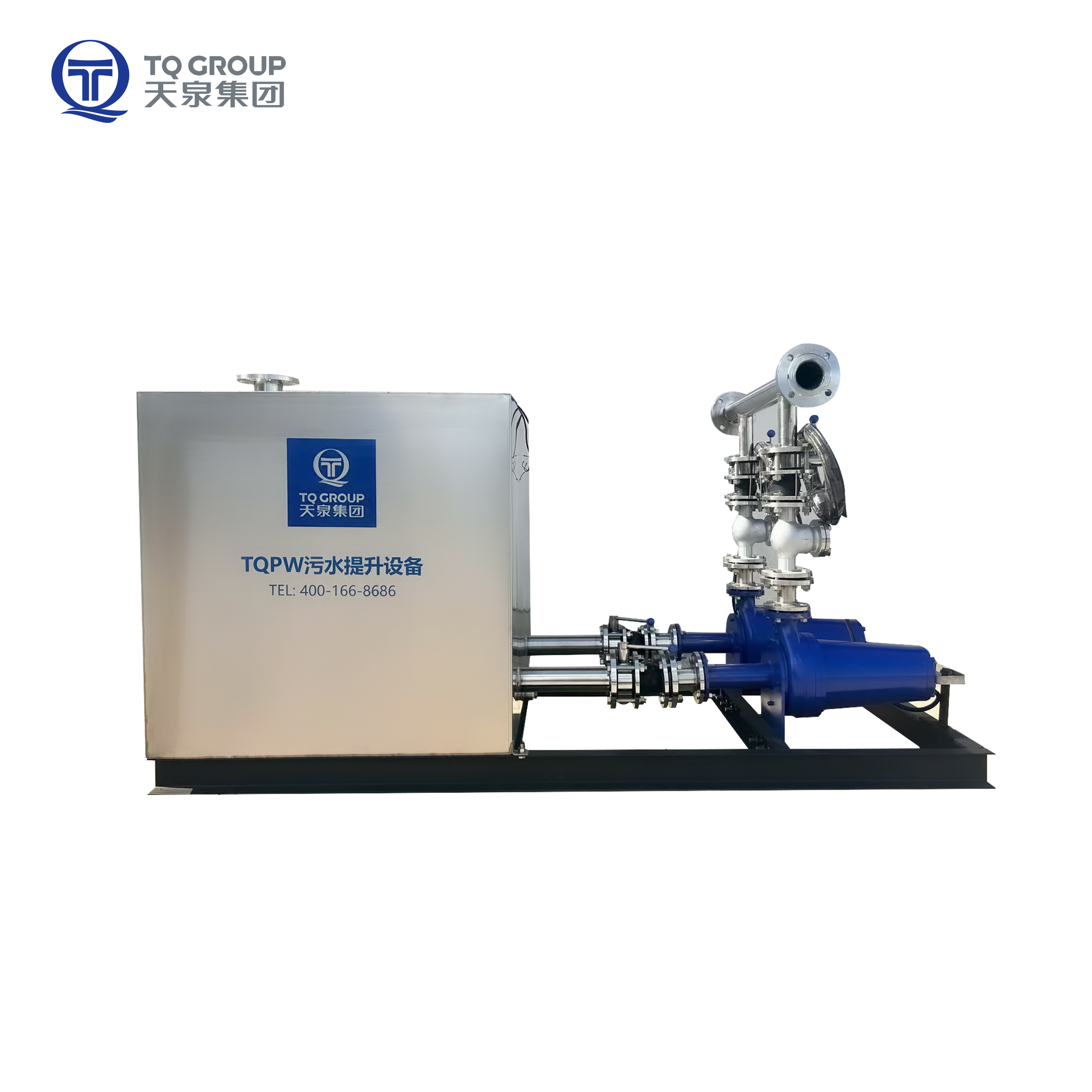

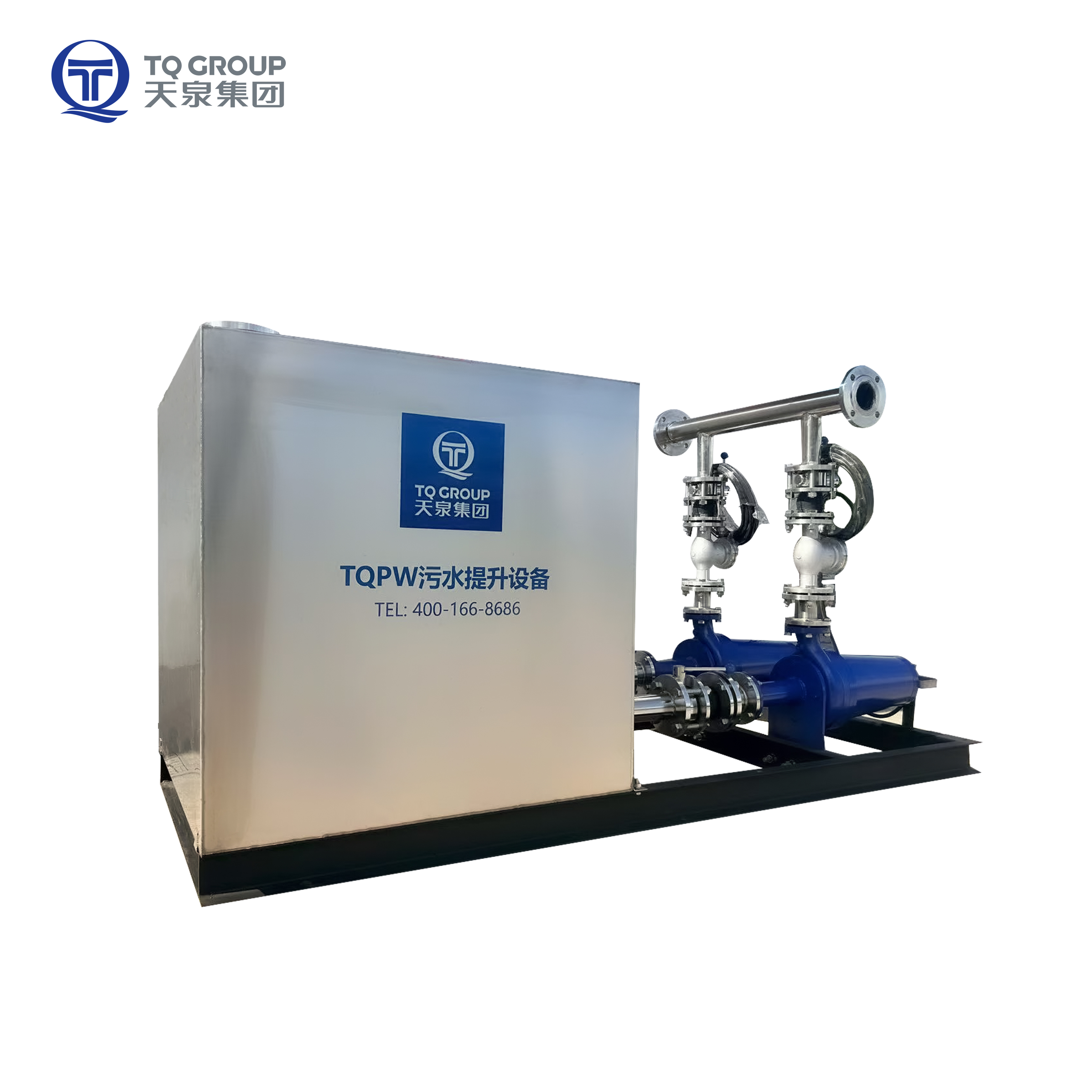

TQPW Sewage Lifting Equipment with External Pumps

TQPW is an advanced application solution specially developed for sewage lifting treatment, which is suitable for non-corrosive sewage in almost all environments, such as water, fecal sewage, rainwater and so on. System automatically collects, stores and lift the sewage to the municipal sewage network. It is featured with small structure, reliable quality and environmental friendly.

Application

Commonly used in the small flow and small head occasion such as villa, club and small shopping centre

Quantity:
Availability:





Inquiry Add to Basket Download

Model:
TQPW

Product Description

Product Features

Product Structure

FAQ

TQPUMPS introduces the TQPW Sewage Lifting Equipment with External Pumps, a cutting-edge wastewater pumping solution. This compact yet powerful system is designed to efficiently collect, store, and transfer sewage in various settings.

The TQPW features a durable collection tank made of high-quality PE or SS304 materials. It safely holds wastewater until it's ready for discharge. The external pumps, ranging from one to two units, ensure reliable and consistent pumping performance.

The user-friendly control panel allows for easy operation and real-time monitoring of the equipment. High-grade pipes and valves connect all components and regulate the sewage flow. With a maximum capacity of 11m³/h and a head of up to 15m, the TQPW can handle demanding wastewater lifting tasks.

This sewage lifting station is suitable for non-corrosive wastewater, such as rainwater and fecal waste. It automatically collects, stores, and pumps sewage into municipal sewer networks. The TQPW offers a reliable, eco-friendly, and customizable solution for efficient wastewater management.

TQPUMPS provides exceptional after-sales service, including online support, to ensure customer satisfaction. Choose the TQPW Sewage Lifting Equipment with External Pumps for your wastewater pumping needs.

Technical Parameters

Parameter	Value
Maximum Capacity	11m³/h
Voltage	380V
Maximum Head	15m
Frequency	50HZ
Speed	2950RPM
Maximum Motor Power	1.5kW
Outlet Diameter	DN50-DN80
Efficiency Class	IE3
Seal Type	Mechanical Seal
Insulation Class	F
Tank Material	PE / SS304
Protection Grade	IP55
Number of Pumps	1-2
Cooling Method	Water Cooling
Customization	Available
After-sales Service	Online Service

Hydraulic Performance

	Model	PUMP				PE Water Tank					Pipeline	Control Cabinet model
		#of Pump	Capacity	Head	Unit Pump power(kw)	Vol.	Inlet Dia.	Outlet Dia.	Vent Dia.	Outline Dimension
		#of Pump	(m³/h)	(m)	Unit Pump power(kw)	(L)	(mm)	(mm)	(mm)	(mm)
1	TQPW-I-5/8-N-100	1	5	8	0.75	100L	Ø100	Ø50	Ø50	655450660	DN65*1	TQK-1L-0.75
2	TQPW-I-7/6-N-100		7	6	0.55							TQK-1L-0.55
3	TQPW-I-7/9-N-100		7	9	0.75							TQK-1L-0.75
4	TQPW-I-9/7-N-100		9	7	0.55							TQK-1L-0.55
5	TQPW-I-9/10-N-100		9	10	0.75							TQK-1L-0.75
6	TQPW-I-5/12-N-250		5	12	1.1	250L	Ø100	Ø65	Ø50	850500760	DN65*1	TQK-1L-1.1
7	TQPW-I-5/15-N-250		5	15	1.5							TQK-1L-1.5
8	TQPW-I-5/13-N-250		5	13	1.1							TQK-1L-1.1
9	TQPW-I-9/14-N-250		9	14	1.1							TQK-1L-1.1
10	TQPW-I-11/9-N-250		11	9	1.1							TQK-1L-1.1
11	TQPW-I-11/13-N-250		11	13	1.5							TQK-1L-1.5
12	TQPW-I-11/22-N-250		11	22	2.2							TQK-1L-2.2
13	TQPW-II-5/8-N-500	2	5	8	0.75	500L	Ø100	Ø80	Ø100	900850900	DN65*2	TQK-2L-0.75
14	TQPW-II-5/12-N-500		5	12	1.1							TQK-2L-1.1
15	TQPW-II-5/15-N-500		5	15	1.5							TQK-2L-1.5
16	TQPW-II-7/6-N-500		7	6	0.55							TQK-2L-0.55
17	TQPW-II-7/9-N-500		7	9	0.75							TQK-2L-0.75
18	TQPW-II-7/13-N-500		7	13	1.1							TQK-2L-1.1
19	TQPW-II-9/7-N-500		9	7	0.55							TQK-2L-0.55
20	TQPW-II-9/10-N-500		9	10	0.75							TQK-2L-0.75
21	TQPW-II-9/14-N-500		9	14	1.1							TQK-2L-1.1
22	TQPW-II-11/9-N-500		11	9	1.1							TQK-2L-1.1
23	TQPW-II-11/13-N-500		11	13	1.5							TQK-2L-1.5
24	TQPW-II-11/22-N-500		11	13	1.5							TQK-2L-2.2

Advantages of the external pump-tank separated structure compared with the built-in type?

The external separated structure features easy maintenance, long service life, odor-free operation and low failure rate.

The externally installed motor never immerses in sewage, eliminating motor dampness and corrosion.
Maintenance can be completed without opening the sewage tank, avoiding sewage leakage and odor spread for clean and convenient operation.
Equipped with enhanced overall tightness, it effectively isolates odor overflow, making it highly suitable for villas, shopping malls, office buildings, hotels and other high-standard commercial and civil environments.

Features of the external pump-tank

Versatile Inlet Options

Choose from various inlet directions for convenient installation
Adapt the equipment to your existing sewage collection system
Simplify the integration process with flexible inlet configurations

Easy Pump Maintenance

Perform maintenance tasks without entering the tank
Minimize downtime and reduce maintenance costs with external sewage pumps

Overflow Protection

Built-in safeguards prevent overflow and backup incidents
Ensure the smooth operation of your wastewater pumping equipment
Protect your facility from potential water damage and contamination

Ideal for Low Flow, Low Head Applications

Perfect for villas, clubhouses, and small shopping centers
Efficiently handle small sewage volumes and low pumping heads
Optimize your sewage lifting system for your specific needs

Solid-Liquid Separation and Self-Cleaning

Integrated solid-liquid separation and backwash device
Reduce maintenance requirements and eliminate manual cleaning
Keep your sewage pump control panel functioning at peak performance

Enclosed, Pollution-Free Design

Sealed structure prevents odors and contamination
Maintain a healthy and eco-friendly environment
Ensure the well-being of your staff and visitors

Durable and Corrosion-Resistant Materials

High-quality 304 stainless steel tank for longevity
Withstand harsh sewage conditions and prevent corrosion
Enjoy a visually appealing and long-lasting sewage lifting solution

Intelligent Automatic Operation

Advanced control system for seamless sewage management
Minimize manual intervention and optimize performance
Monitor and control your sewage lifting station effortlessly

Wide Range of Applications

Municipal engineering: Collect and transfer urban sewage
Industrial sector: Handle industrial wastewater and effluent
Commercial buildings: Solve underground space drainage issues
Residential communities: Meet sewage lifting needs in housing complexes
Agricultural irrigation: Facilitate field drainage and irrigation systems

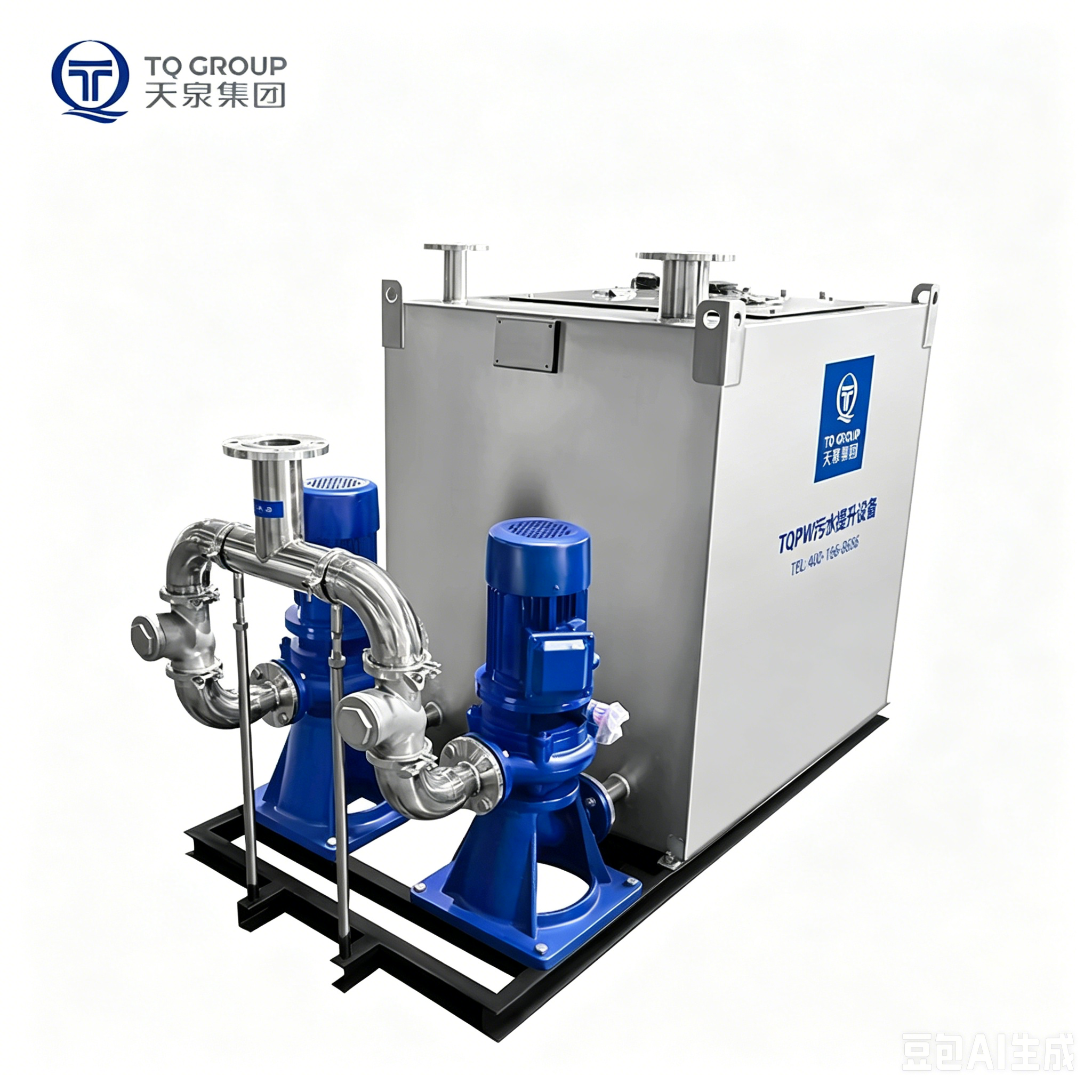

Main Components of TQPW Sewage Lifting Equipment with External Pumps

TQPW Sewage Lifting Equipment with External Pumps

Collection Tank

Collects and stores sewage efficiently
Made of corrosion-resistant engineering plastic
Integrated design ensures reliable sealing performance

External Pumps

Extracts and transfers sewage effectively
Designed for easy maintenance and inspection
Ensures stable pumping performance for wastewater pumping equipment

Control Panel

Controls and monitors equipment operation
User-friendly interface for easy operation
Real-time monitoring of sewage lifting station status

Pipes and Valves

Connects components and regulates sewage flow
Made of high-quality materials for durability
Precise CNC machining ensures component accuracy

Product Dimensions

Total height H760mm, suitable for standard installation spaces
Tank length L850mm, width W500mm, capacity 250L
3D design ensures equipment stability

Inlet and Outlet Structure

Top inlet with standard flange connection
Side outlet for convenient pipe installation
Bottom discharge port for easy cleaning and maintenance

Installation and Maintenance

Standardized modular design for easy installation
Equipped with inspection ports for routine maintenance
Strict sealing performance tests for each unit

Quality Assurance

Complies with ISO9001 quality management system requirements
Certified by international standards such as CE and ROHS
Complete performance test reports available

Manufacturing Process

Precision injection molding technology
CNC machining ensures key component precision
Automated assembly line guarantees product quality

FAQs

What types of pumps are compatible with the external sewage lifting station?

The external sewage lifter adopts a separated pump and tank structure, which is standardly equipped with a dry-type vertical sewage pump(LW type). It can be flexibly matched with non-clog cutting pumps and high-flow non-clog pumps according to working conditions.
What type of liquid level sensor does the external sewage lifter use? What are its advantages?

This external sewage lifter is standardly fitted with a 304 stainless steel electrode liquid level sensor. Different from traditional float switches, it has no movable mechanical parts and avoids jamming or tangling caused by hair, fibers and impurities. Featuring sensitive induction and accurate start-stop control, it realizes automatic liquid level management to prevent pump idling and water overflow. A float switch liquid level sensor is optional for special sealed tank conditions.
What material options are available for the water tank and pipeline?

1. 304 Stainless Steel: The standard configuration material with cost-effective performance. It features outstanding rust resistance and oxidation resistance, suitable for conventional scenarios including domestic sewage, basement drainage, commercial toilet drainage and HVAC water systems, covering most civil and general commercial applications.
2. 316 Stainless Steel: The upgraded premium material with superior acid, alkali and salt spray corrosion resistance compared to 304 stainless steel. It is applicable for slightly corrosive wastewater, oily kitchen sewage, coastal high-humidity environments and light industrial wastewater, effectively preventing rust and perforation to extend equipment service life.
What standard valves are equipped on the equipment? What are their functions?

The equipment is fully factory-fitted with standard piping accessories, including gate valve, 90° elbow and ball check valve for direct installation and use. The functions of each component are as follows:
1. Gate Valve: Installed on the outlet pipelines as a main cut-off switch. It can completely shut off water flow, facilitating equipment inspection, cleaning and maintenance without draining the entire pipeline system.
2. 90° Elbow: Applied for pipeline direction adjustment to adapt to various on-site installation layouts. It optimizes pipeline routing, reduces flow resistance and avoids pressure buildup, ensuring smooth drainage even in narrow installation spaces.
3. Ball Check Valve: A core backflow prevention component mounted on the discharge end. It closes instantly when the pump stops, preventing sewage backflow to the tank, secondary water accumulation and odor generation. It also protects the pump from reverse rotation damage and delivers stable anti-clogging performance for sewage working conditions.
