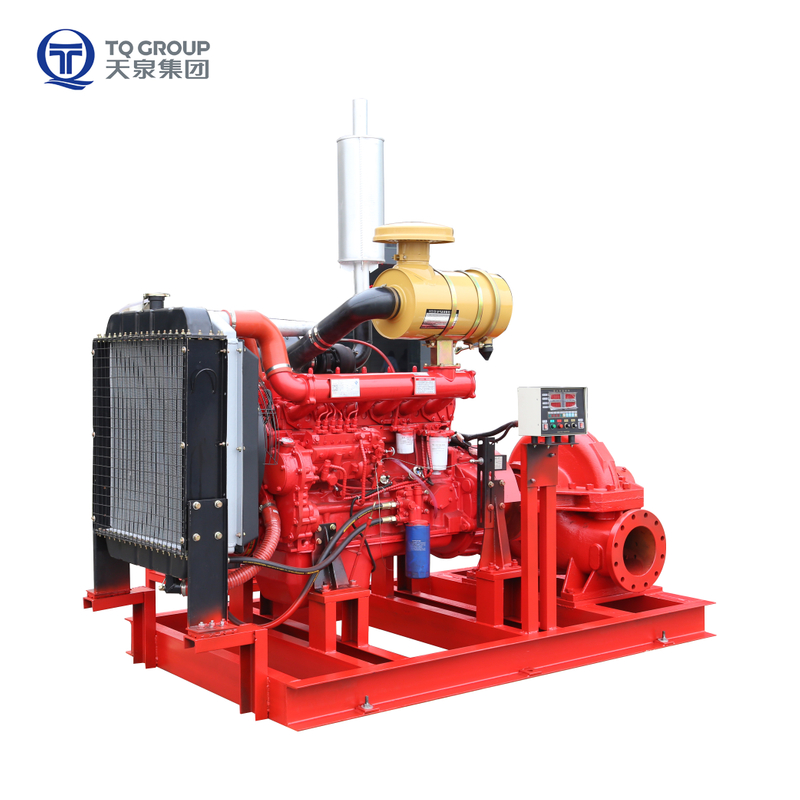

XBC-SOW Diesel Engine Double Suction Fire Pump


XBC-SOW Horizontal Single Stage Double Suction Split Case Fire Pump is known for its high flow rate and is widely used in industrial fire protection systems, such as fire hydrant extinguishing systems and automatic sprinkler systems in factories, power plants, logistics centers, ports, coal mines, and other facilities.
The XBC-SOW fire pumps is supplied as whole unit with capacity and head equal to electric fire pump, with diesel engine, fuel tank, water tank,battery, control box and common base plate.

Application

· Standby fire pump in the fire fighting systemFire fighting system
· Water Supply for fire hydrant and automatic sprinkler systems in factories, power plants, logistics centers, ports, coal mines
Availability:
Quantity:
Inquiry Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • XBC-SOW

Product Features
Product Structure
Hydraulic Performance
Pre-sales Instruction

Product Feature



  • TQPUMPS proudly presents the XBC-SOW Diesel Double Suction Fire Pump, a reliable and efficient solution for high-pressure firefighting applications.

  • This horizontal, double-suction pump is designed to deliver exceptional performance and durability in demanding situations.

  • With a maximum flow rate of 420 L/S and a maximum head of 120 m, the XBC-SOW is capable of tackling even the most challenging fires.

  • The pump is powered by a robust diesel engine with a maximum power output of 400kW, ensuring consistent and reliable operation.

  • The XBC-SOW features a sturdy, horizontal split casing design, making it easy to maintain and service.

  • The pump is equipped with a closed impeller made of SS304 stainless steel, providing excellent resistance to corrosion and wear.

  • The shaft, constructed from 20Cr13 material, ensures long-lasting performance and stability.

  • TQPUMPS offers customization options to meet your specific requirements, allowing you to tailor the XBC-SOW to your unique firefighting needs.

  • The pump is available with either mechanical seals or packing seals, and can be configured for a maximum working pressure of PN16 or PN25.

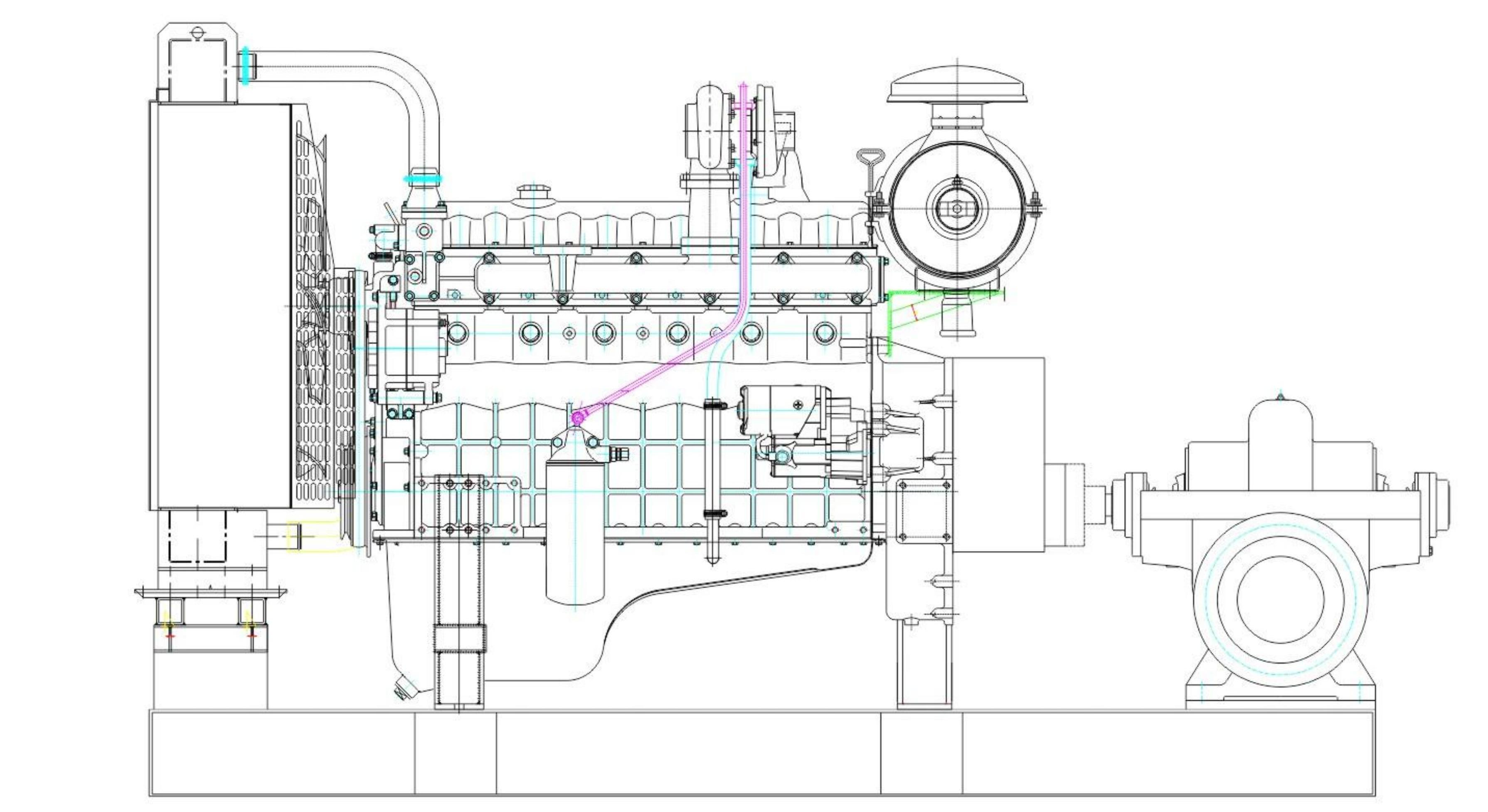

 消防系列2



Technical Parameters


Parameter Value
Maximum Flow Rate 420 L/S
Maximum Head 120 m
Structure Horizontal Double Suction
Installation Type B3
Outlet Diameter DN150-DN350
Efficiency Class IE2
Seal Type Mechanical Seal or Packing Seal
Insulation Class F
Maximum Working Pressure PN16/PN25
Protection Rating IP54
Liquid Temperature 80°C
Cooling Method TEFC
Customization Available
After-sales Service Online Service
Warranty Period Two Years
Working Pressure High-pressure Pump
Impeller Type Double Suction Pump
Pump Shaft Position Horizontal Pump
Pump Casing Combination Horizontal Split Casing Pump
Installation Height Self-priming Centrifugal Pump
Impeller Closed Type
Application Pump
Impeller Material SS304
Shaft Material 20Cr13
Voltage 380V
Frequency 50Hz
Origin China

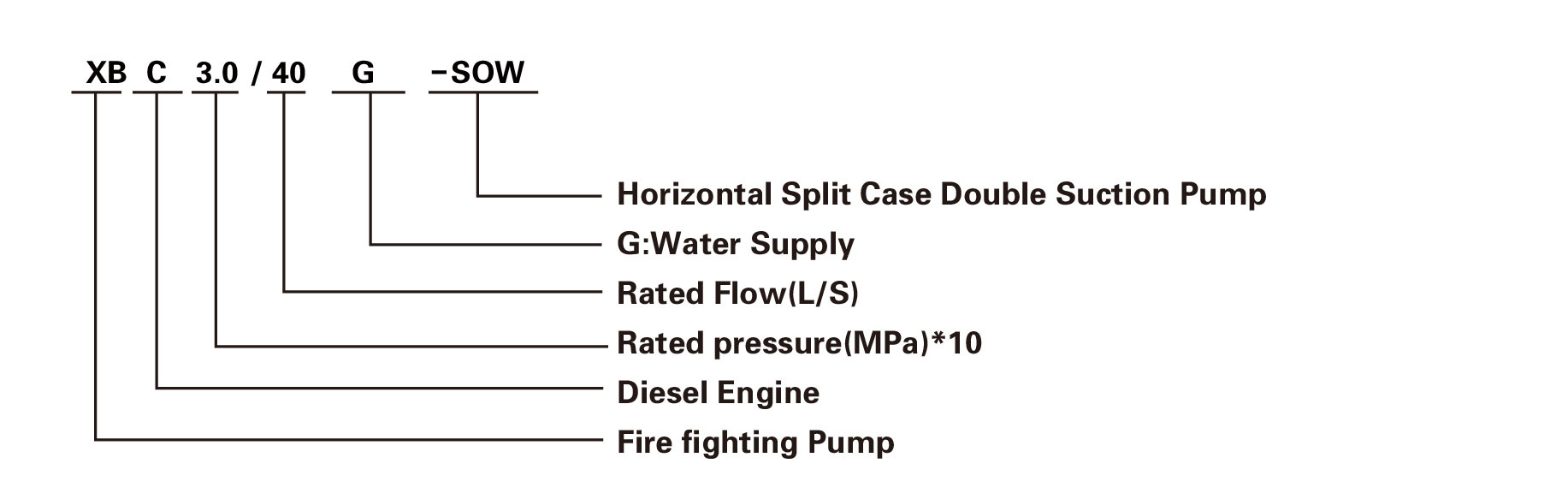

 Model Meaning

Shanghai-Tianquan-Pump-Group-Co-Ltd-

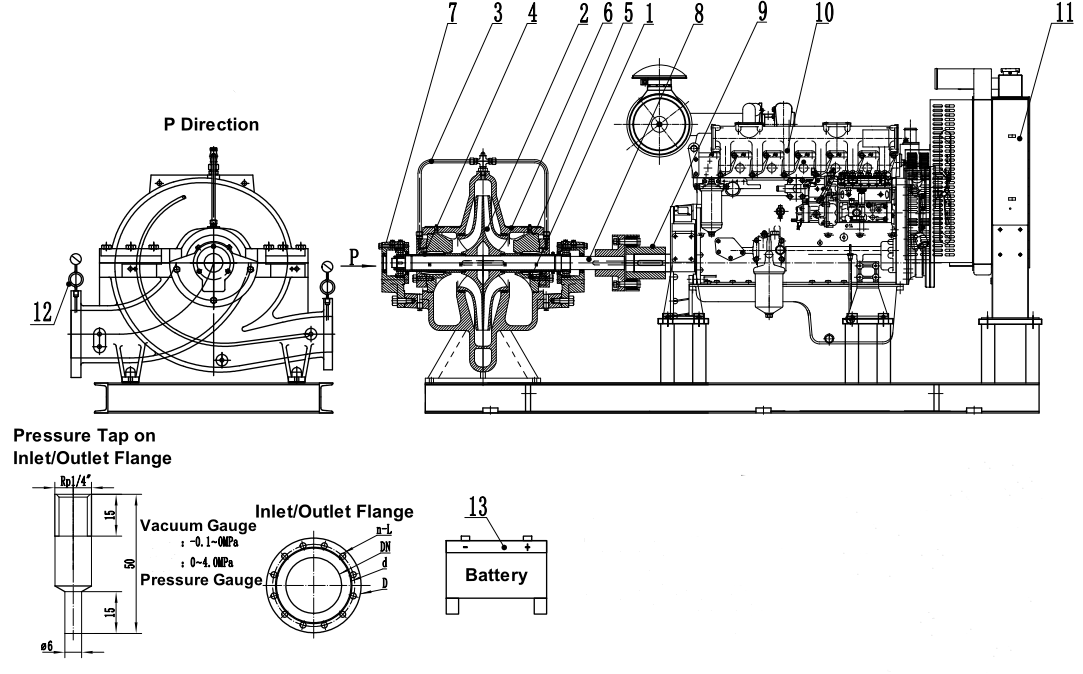

Product Structure

product structure_副本3



Item No. Part Name Item No. Part Name
1 Pump Body
 8 Shaft
2 Impeller 9 Coupling
3 Water-rinsing Pipe Part 10 Diesel Engine
4 Mechanical Sealing 11 Cooling Tank
5 O-Seal Ring 12 Pressure Gauge
6 Pump Cover 13 Battery
7 Non-Drive End Bearing Part



Hydraulic Performance



Flow
Q		Head
H		Diesel Engine Driven
Horizontal Split Case Pump
Item No.US.GPMm³/hL/SBarPSIModelKWHPRPM
1100022765687100-260A751003000
21000227657101.5100-260751003000
31000227658116100-260I901253000
41000227659130.5100-320A1001363000
510002276510145100-320A1321803000
610002276511159.5100-3201321803000
710002276512174100-3201321803000
8125028480687XBC6/80G-SOW1101501500
91250284807101.5XBC7/80G-SOW1101501500
101250284808116XBC8/80G-SOW1351841500
111250284809130.5XBC9/80G-SOW1351841500
1212502848010145XBC10/80G-SOW1762391500
1312502848011159.5XBC11/80G-SOW1762391500
1412502848012174XBC12/80G-SOW2353201500
151500341100687XBC6/100G-SOW1101501500
1615003411007101.5XBC7/100G-SOW1351841500
1715003411008116XBC8/100G-SOW1552111500
1815003411009130.5XBC9/100G-SOW1762391500
19150034110010145XBC10/100G-SOW2353201500
20150034110011159.5XBC11/100G-SOW2353201500
21150034110012174XBC12/100G-SOW2353201500
22150034110013188.5XBC13/100G-SOW2353201500
231750398110687XBC6/110G-SOW1351841500
2417503981107101.5XBC7/110G-SOW1552111500
2517503981108116XBC8/110G-SOW1762391500
2617503981109130.5XBC9/110G-SOW2353201500
27175039811010145XBC10/110G-SOW2353201500
28175039811011159.5XBC11/110G-SOW2353201500
29175039811012174XBC12/110G-SOW2883921500
30175039811013188.5XBC13/110G-SOW2883921500
312000455130687XBC6/130G-SOW1351841500
3220004551307101.5XBC7/130G-SOW1552111500
3320004551308116XBC8/130G-SOW2353201500
3420004551309130.5XBC9/130G-SOW2353201500
35200045513010145XBC10/130G-SOW2353201500
36200045513011159.5XBC11/130G-SOW2883921500
37200045513012174XBC12/130G-SOW3054151500
38200045513013188.5XBC13/130G-SOW3304491500
392500568160687XBC6/160G-SOW1762391500
4025005681607101.5XBC7/160G-SOW2353201500
4125005681608116XBC8/160G-SOW2353201500
4225005681609130.5XBC9/160G-SOW2883921500
43250056816010145XBC10/160G-SOW3054151500
44250056816011159.5XBC11/160G-SOW3304491500
45250056816012174XBC12/160G-SOW3685001500
46250056816013188.5XBC13/160G-SOW4055501500
473000682190687XBC6/190G-SOW2353201500
4830006821907101.5XBC7/190G-SOW2353201500
4930006821908116XBC8/190G-SOW2883921500
5030006821909130.5XBC9/190G-SOW3304491500
51300068219010145XBC10/190G-SOW3685001500
52300068219011159.5XBC11/190G-SOW3685001500
53300068219012174XBC12/190G-SOW4055501500
54300068219013188.5XBC13/190G-SOW4596241500
553500795220687XBC6/220G-SOW2353201500
5635007952207101.5XBC7/220G-SOW2883921500
5735007952208116XBC8/220G-SOW3054151500
5835007952209130.5XBC9/220G-SOW3304491500
59350079522010145XBC10/220G-SOW4055501500
60350079522011159.5XBC11/220G-SOW4596241500
61350079522012174XBC12/220G-SOW5056871500
624000909250687XBC6/250G-SOW2883921500
6340009092507101.5XBC7/250G-SOW3304491500
6440009092508116XBC8/250G-SOW3685001500
6540009092509130.5XBC9/250G-SOW4055501500
66400090925010145XBC10/250G-SOW4596241500
67400090925011159.5XBC11/250G-SOW5056871500
68450010232806.594.25XBC6.5/280G-SOW3054151500
69450010232807.5108.75XBC7.5/280G-SOW3685001500
70450010232808116XBC8/280G-SOW4055501500
71450010232808.5123.25XBC8.5/280G-SOW4055501500
72450010232809130.5XBC9/280G-SOW4596241500
734500102328010145XBC10/280G-SOW5056871500






Model selection instructions


After sales1

  • Users' selection shall not be limited by the performance parameters list. Parameters in the catalog are only for reference. We could design and manufacture the product according to the actual requirements. If there is a special selection beyond the sample performance parameters, please get in touch with our technical support.


  • If the selected model is close to performance parameters, generally standard impeller pumps and high-speed pumps are preferred. (NPSH shall meet the requirements).


  • If a high-voltage motor or special motor is required, please DO NOT make the foundation according to the installation dimension of the sample. Our technical support shall customize the drawings.


FAQs


Q1: What are the key features of the XBC-SOW Diesel Double Suction Fire Pump?

A1: The XBC-SOW offers high reliability, low noise, easy maintenance, and customization options.


Q2: How does this industrial fire pump handle high flow and head requirements?

A2: The comprehensive performance curve ensures the pump meets demanding high flow and head needs.


Q3: Can I customize the double suction fire pump to suit my specific application?

A3: Yes, we offer customization options to tailor the pump to your unique requirements.


Q4: Is the XBC-SOW suitable for high-rise building fire protection systems?

A4: Absolutely. This pump is ideal for high-rise building fire protection applications.


Q5: How long is the warranty period for the XBC-SOW Diesel Double Suction Fire Pump?

A5: We provide a two-year warranty for your peace of mind and long-term reliability.


Q6: What kind of after-sales service do you offer for this high-pressure pump?

A6: Our dedicated after-sales service ensures your pump runs smoothly throughout its lifetime.


Q7: Can this double suction pump be used in oil and chemical plant firefighting?

A7: Yes, the XBC-SOW is well-suited for oil and chemical plant firefighting needs.


Q8: Is the XBC-SOW a reliable choice for power facility fire emergency response?

A8: Definitely. This pump is designed to provide reliable performance during power facility emergencies.
