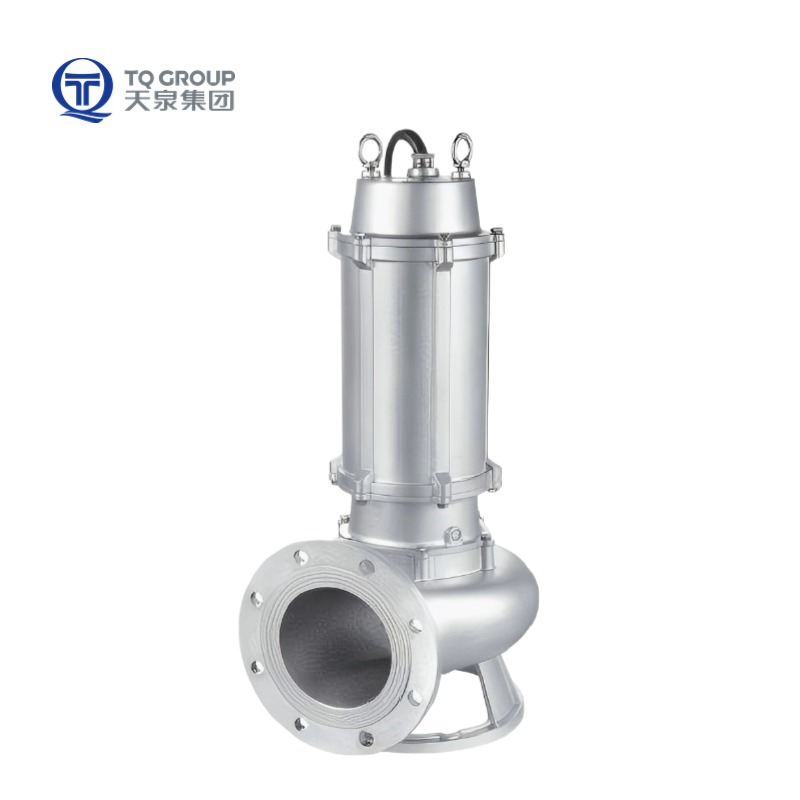

WQP Stainless Steel Sewage PUMP|304,316,316L

The WQP Series stainless steel submersible sewage pump is precision-cast entirely from premium stainless steel. With its self-pollution-free and corrosion-resistant construction, it greatly extends the range of drainage applications — from clean water and sewage to mildly corrosive and even seawater media.
Its high-efficiency hydraulic design delivers flow and head above national efficiency standards, saving electricity bills while prolonging service life. The full range of stainless steel grades — 304, 304L, 316, 316L (Duplex 2205 Super Duplex 2507 available on request) — lets you match the exact material to your working medium.

Quantity:
Material:	304 304L 316 316L
Explosion-proof:	BT1 BT2 BT3
Connection:	DIN Flange Square Flange Threaded
Availability:





Inquiry Add to Basket Download

Model:
WQP
Brand:
TQPUMPS

Product Features

Product Structure

Hydraulic Performance

FAQ

Product Features

· Full Stainless Steel Construction — The pump body, impeller and all wetted parts are precision-cast in stainless steel (304/304L/316/316L/Duplex 2205), giving outstanding corrosion resistance and zero media contamination.

· High-Efficiency Hydraulics — Closed double-channel impeller (standard) or semi-open cutting impeller (cutting type), with measured efficiency above the national standard for lower energy and running costs.

· Reliable Submersible Motor — IP68 protection and Class F insulation; models ≤7.5 kW are fitted with an over-current sensor that cuts power automatically under abnormal conditions.

· Multi-Line Leak-Proof Sealing — Double-end mechanical seals with an oil chamber; motors ≥11 kW use 2–3 mechanical seals in series, forming multiple non-leakage protection lines.

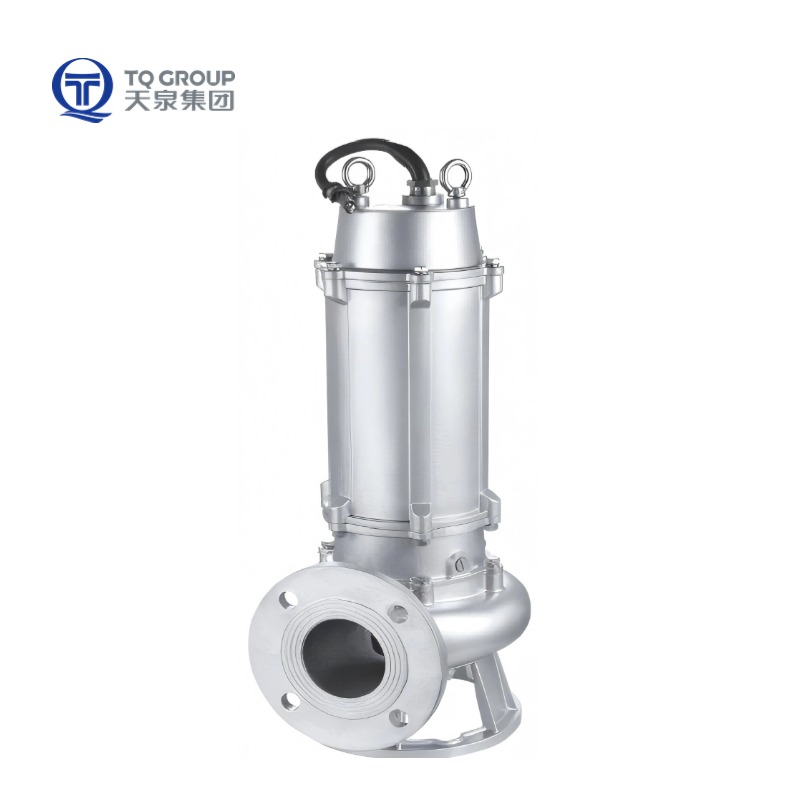

· Anti-Clogging & Anti-Winding — Double-channel and cutting impeller designs pass solids smoothly and shred long fibres, plastics, paper, cloth strips, straw, rope, etc.

· Optional Stirrer — An optional stirrer agitates settled sludge into suspension for complete discharge from the sewage pit.

· Special Cable Technology — Special cable manufacturing prevents water entering the motor through wire gaps even when the cable sheath is damaged.

· Wide Model Range — From 0.37 kW to 250 kW, DN50 to DN500; single-phase & three-phase; standard, cutting and explosion-proof versions.

Applications

The WQP stainless steel submersible sewage pump is widely used in:

· Urban environmental protection systems — sewage discharge, sewage transfer and sewage treatment.

· Industrial and mining enterprises — food, papermaking, brewing, steel and non-ferrous metals, leather, textiles, pharmaceuticals, cement, etc.

· Food, medical and pharmaceutical industries requiring hygienic, non-contaminating drainage.

· Seawater drainage, ships, marine aquaculture and coastal facilities (316 / 316L / Duplex models).

· Agricultural irrigation, fish ponds, septic tanks, farms and livestock breeding drainage.

· Mildly corrosive chemical environments (with material selection).

Operating Conditions

Item	Specification
Power supply	3~380V / 50 Hz (single-phase 1~220V available on some models)
Medium temperature	≤ 40°C (higher-temperature models available on request)
pH value of medium	3–13 depending on material: 304 → 4–10; 316 → 4–13; 316L → 3–13 (reference)
Solid content by volume	< 2%
Medium density	< 1200 kg/m³
Minimum liquid level	Not less than 2/3 of the motor height during operation
Max passable solid diameter	Must not exceed the maximum solid diameter permitted by the model
Max submersible depth	Up to 20 m (check model; BWQ explosion-proof series)

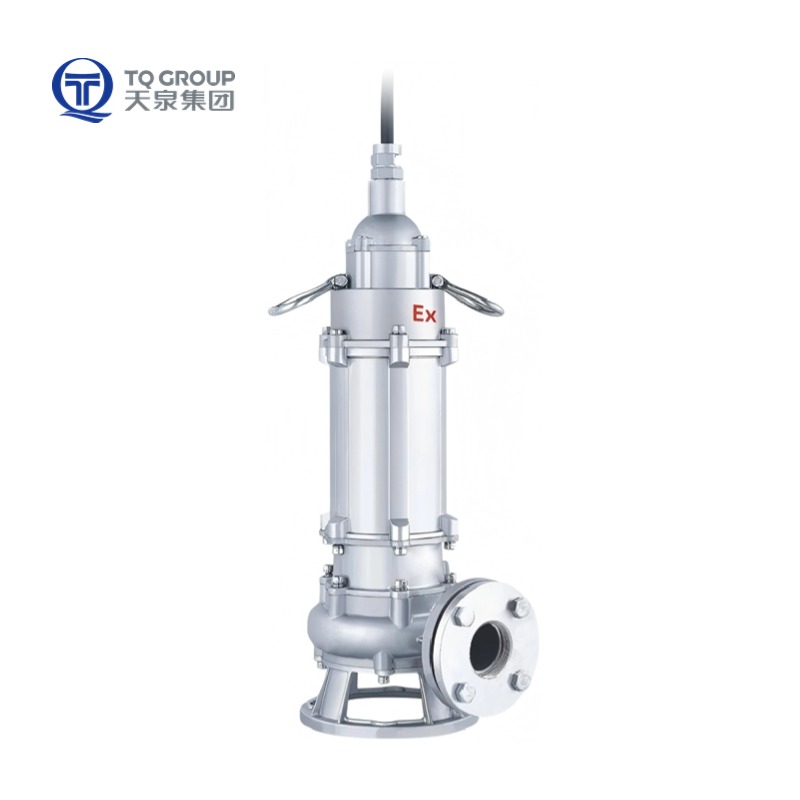

Explosion-proof version (BWQ)	Exd IIB T4 — for explosive gas/steam atmospheres of group IIB, temperature class T1–T4

Technical Parameters

Parameter	Value
Maximum Flow Rate	200m³/h
Voltage	220 V / 380 V / 660 V
Maximum Head Rate	45m
Frequency	50 Hz (60 Hz on request)
Speed	2950/1480 r/min
Maximum Motor Power	Up to 250 kW
Structure	Vertical
Discharge Port Size	DN32~DN150
Efficiency Class	IE3
Seal Type	Double-end mechanical seal + oil seal / oil chamber
Insulation Class	F
Working Pressure	Up to PN16
Protection Rating	IP68
Cooling Method	Water Cooling
Packaging	Wooden Case
Origin	Shanghai, China

Structure Diagram

Item No.

Part name

Material

Standard

Application

Handle

Galvanised steel plate

Standard configuration

Stainless steel plate

Optional

Thermal

≤3kW Standard configuration

Motor rotor parts

Standard configuration

Mechanical
seal

Rotary ring

SiC/C

WM 208 double end surface,large spring,rubber bellows mechanical seal 20/25/30

Stationary ring

SiC

Spring

Spring steel

bellows

NBR

Skeleton oil seal

GB/T13871.1-2007

Standard configuration

O-ring

NBR(FKM)

GB/T3452.1-2005

Pump end

NBR

Motor end

Pump casing cover

Iron casting HT250

GB/T9439-2010

Standard configuration

Impeller

Iron casting HT250

GB/T9439-2010

Standard configuration

17-4PH
(oCr17Ni4Cu4Nb)

GB/T1220-2007

Optional

Pump casing

Iron casting HT250

GB/T9439-2010

PN6 Standard configuration

Nodular cast iron QT500

GB1348-2019

Optional

Pedestal

lron casting HT200

GB/T9439-2010

Standard configuration

Electric cable

Length 6m

Cable sealing head

Standard configuration

Motor cover

HT200

GB/T9439-2010

Standard configuration

Upper bearing seat

HT200

GB/T9439-2010

Standard configuration

Upper bearing

C&U(Standard configuration)/NSK、SKF、FAG(Optional)

Motor cylinder

HT200

GB/T9439-2010

Standard configuration

SS304

Optional

Motor stator parts

Standard configuration

Oil chamber

HT200

GB/T9439-2010

Standard configuratior

Oil and water probe

Optional,Outsource

lower bearing

C&U(Standard configuration)
NSK、SKF、FAG(Optional)

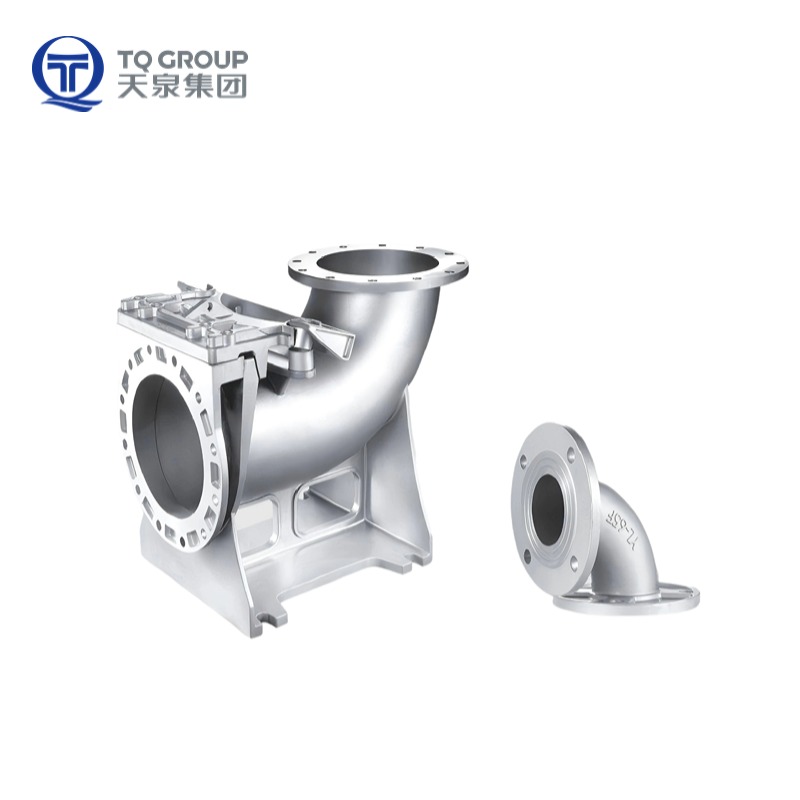

Automatic Coupling System

· When the pump needs maintenance, it can be lifted out of the medium along the guide rails.

· The self-sealing mechanism and automatic mating of the coupling enable quick connection and sealing.

· The automatic coupling system resolves underwater installation in poor working conditions.

Material Selection Guide

Choosing the right material is the key to service life and total cost. Compare the grades below, then follow the simple guide to match your medium.

Material	UNS No.	Key Alloying Elements	Corrosion Resistance	Relative Strength	Ref. pH Range	Typical Applications	Rel. Cost
304	S30400	18Cr-8Ni	Good (general)	Standard	4–10	General sewage, clean water, municipal/construction	$
304L	S30403	18Cr-8Ni, low C	Good + weld resistance	Standard	4–10	Welded fabrications, long-term service	$
316	S31600	16Cr-10Ni-2Mo	Better pitting & chloride resistance	Standard	4–13	Seawater, brackish water, industrial wastewater	$$
316L	S31603	16Cr-10Ni-2Mo, low C	Best of 300-series for marine/chemical	Standard	3–13	Seawater, marine aquaculture, food & medical	$$
Duplex 2205	S32205	22Cr-5Ni-3Mo-N	Excellent vs stress-corrosion & pitting	≈2× yield of 304/316	On request	High-chloride, chemical, offshore	$$$
Super Duplex 2507*	S32750	25Cr-7Ni-4Mo-N	Superior in most severe service	Highest	On request	Most aggressive corrosive media	$$$$

* Super Duplex 2507 available on request. pH ranges are reference values for the pump application and depend on temperature and chloride content.

Selection Guide

· Clean water / general sewage with neutral pH → choose 304 (or 304L when extensive welding is involved) or cast iron sewage pump for tight budget

· Media containing chlorides, brackish water or seawater → choose 316 / 316L.

· Marine aquaculture, food and medical where hygiene and salt resistance both matter → choose 316L/2205

· High-chloride chemical media, stress-corrosion risk, or where higher strength can reduce pump size → choose Duplex 2205 (Super Duplex 2507 for the most severe duty).

· Always confirm pH, temperature, chloride content and solid characteristics with our engineers for a final recommendation.

Model Meaning

Example: 50BWQ10-10-0.75QG = DN50 submersible sewage pump, 10 m³/h, 10 m head, 0.75 kW, cutting type.

Code	Meaning
B	Explosion-proof type
50 / 65 / 80 / …	Discharge diameter (mm)
WQ	Submersible Sewage Pump
D	Single-phase
10 (first number)	Rated flow (m³/h)
10 (second number)	Rated head (m)
0.75	Rated power (kW)
QG	Cutting type
S	Stainless steel
-304 / -304L / -316 / -316L / -2205	Material grade （X = special material）

Hydraulic Performance(3 phrase type)

* only with Y means explosion-proof type are available

Model	Discharge		Flow	Head	Power		Voltage	Speed	Explosion Proof type BWQ
Model	mm	inch	m3/h	m	kW	HP	V	r/min	Explosion Proof type BWQ
50WQ10-10-0.75S	50	2"	10	10	0.75	1	380	2850	Y
50WQ10-13-1.1S	50	2"	10	13	1.1	1.5	380	2850	Y
50WQ15-15-1.5S(I)	50	2"	15	15	1.5	2	380	2850	Y
50WQ15-20-2.2S(I)	50	2"	15	20	2.2	3	380	2850	Y
50WQ15-25-3S	50	2"	15	25	3	4	380	2850	Y
50WQ15-32-4S(I)	50	2"	15	32	4	5	380	2900	Y
50WQ15-40-5.5S	50	2"	15	40	5.5	7.5	380	2900	Y
50WQ20-40-7.5S	50	2"	20	40	7.5	10	380	2900	Y
50WQ20-50-11S	50	2"	20	50	11	15	380	2900	Y
50WQ20-55-15S	50	2"	20	55	15	20	380	2900	Y
50WQ20-70-18.5S	50	2"	20	70	18.5	25	380	2900	N
50WQ20-75-22S	50	2"	20	75	22	30	380	2900	N
65WQ15-6-0.75S	65	2.5"	15	6	0.75	1	380	2850	Y
65WQ20-6-1.1S	65	2.5"	20	6	1.1	1.5	380	2850	Y
65WQ25-7-1.5S(I)	65	2.5"	25	7	1.5	2	380	2850	Y
65WQ25-15-2.2S(I)	65	2.5"	25	15	2.2	3	380	2850	Y
65WQ25-18-3S	65	2.5"	25	20	3	4	380	2850	Y
65WQ25-25-4S(I)	65	2.5"	25	25	4	5	380	2900	Y
65WQ30-25-5.5S	65	2.5"	30	25	5.5	7.5	380	2900	Y
65WQ30-32-7.5S	65	2.5"	30	32	7.5	10	380	2900	Y
65WQ40-45-11S	65	2.5"	40	45	11	15	380	2900	Y
65WQ40-50-15S	65	2.5"	40	50	15	20	380	2900	Y
65WQ40-60-18.5S	65	2.5"	40	60	18.5	25	380	2900	N
65WQ40-70-22S	65	2.5"	40	70	22	30	380	2900	N
80WQ35-9-2.2S(I)	80	3"	35	9	2.2	3	380	2850	Y
80WQ40-13-3S	80	3"	40	13	3	4	380	2850	Y
80WQ40-18-4S(I)	80	3"	40	18	4	5	380	2900	Y
80WQ40-25-5.5S	80	3"	40	25	5.5	7.5	380	2900	Y
80WQ50-25-7.5S	80	3"	50	25	7.5	10	380	2900	Y
80WQ60-30-11S	80	3"	60	30	11	15	380	2900	Y
80WQ70-35-15S	80	3"	70	35	15	20	380	2900	Y
80WQ70-40-18.5S	80	3"	70	40	18.5	25	380	2900	N
80WQ70-50-22S	80	3"	70	50	22	30	380	2900	N
100WQ50-7-2.2S	100	4"	50	7	2.2	3	380	2850	Y
100WQ60-9-3S	100	4"	60	9	3	4	380	2850	Y
100WQ50-13-4S(I)	100	4"	50	13	4	5	380	2900	Y
100WQ70-15-5.5S	100	4"	70	15	5.5	7.5	380	2900	Y
100WQ80-18-7.5S	100	4"	80	18	7.5	10	380	2900	Y
100WQ70-25-11S	100	4"	70	25	11	15	380	2900	Y
100WQ90-30-15S	100	4"	90	30	15	20	380	2900	Y
100WQ90-35-18.5S	100	4"	90	35	18.5	25	380	2900	N
100WQ100-40-22S	100	4"	100	40	22	30	380	2900	N
100WQ100-20-11S	100	4"	100	20	11	15	380	1450	Y
100WQ100-25-15S	100	4"	100	25	15	20	380	1450	Y
100WQ100-30-18.5S	100	4"	100	30	18.5	25	380	1450	N
100WQ100-35-22S	100	4"	100	35	22	30	380	1450	N
100WQ100-45-30S	100	4"	100	45	30	40	380	1450	N
100WQ100-50-37S	100	4"	120	50	37	50	380	1450	N
100WQ100-55-45S	100	4"	100	55	45	60	380	1450	N
100WQ100-60-55S	100	4"	100	60	55	75	380	1450	N
150WQ100-8-5.5S	150	6"	100	8	5.5	7.5	380	2900	Y
150WQ140-10-7.5S	150	6"	140	10	7.5	10	380	2900	Y
150WQ150-15-11S	150	6"	150	15	11	15	380	2900	Y
150WQ120-20-15S	150	6"	120	20	15	20	380	2900	Y
150WQ180-18-18.5S	150	6"	180	18	18.5	25	380	2900	N
150WQ180-21-22S	150	6"	180	21	22	30	380	2900	N
150WQ180-11-11S	150	6"	180	11	11	15	380	1450	N
150WQ180-15-15S	150	6"	180	15	15	20	380	1450	N
150WQ180-18-18.5S	150	6"	180	18	18.5	25	380	1450	N
150WQ200-20-22S	150	6"	200	20	22	30	380	1450	N
150WQ180-30-30S	150	6"	180	30	30	40	380	1450	N
150WQ200-35-37S	150	6"	200	35	37	50	380	1450	N
150WQ200-40-45S	150	6"	200	40	45	60	380	1450	N
150WQ180-50-55S	150	6"	180	50	55	75	380	1450	N
150WQ200-60-75S	150	6"	200	60	75	100	380	1450	N
150WQ200-65-90S	150	6"	200	65	90	125	380	1450	N
150WQ200-70-110S	150	6"	200	70	110	150	380	1450	N
150WQ200-75-132S	150	6"	200	75	132	180	380	1450	N
200WQ180-10-11S	200	8"	180	10	11	15	380	2900	Y
200WQ220-10-15S	200	8"	220	10	15	20	380	2900	Y
200WQ250-15-18.5S	200	8"	250	15	18.5	25	380	2900	N
200WQ300-15-22S	200	8"	300	15	22	30	380	2900	N
200WQ250-9-11S	200	8"	250	9	11	15	380	1450	N
200WQ250-11-15S	200	8"	250	11	15	20	380	1450	N
200WQ250-15-18.5S	200	8"	250	15	18.5	25	380	1450	N
200WQ300-16-22S	200	8"	300	16	22	30	380	1450	N
200WQ250-22-30S	200	8"	250	22	30	40	380	1450	N
200WQ300-25-37S	200	8"	300	25	37	50	380	1450	N
200WQ350-28-45S	200	8"	350	28	45	60	380	1450	N
200WQ250-40-55S	200	8"	250	40	55	75	380	1450	N
200WQ300-45-75S	200	8"	300	45	75	100	380	1450	N
200WQ300-50-90S	200	8"	300	50	90	125	380	1450	N
200WQ400-55-110S	200	8"	400	55	110	150	380	1450	N
200WQ400-60-132S	200	8"	400	60	132	180	380	1450	N
250WQ500-3-11S	250	10"	500	3	11	15	380	1450	N
250WQ500-5-15S	250	10"	500	5	15	20	380	1450	N
250WQ500-7-18.5S	250	10"	500	7	18.5	25	380	1450	N
250WQ500-9-22S	250	10"	500	9	22	30	380	1450	N
250WQ600-9-30S	250	10"	600	9	30	40	380	1450	N
250WQ600-12-37S	250	10"	600	12	37	50	380	1450	N
250WQ600-15-45S	250	10"	600	15	45	60	380	1450	N
250WQ600-20-55S	250	10"	600	20	55	75	380	1450	N
250WQ600-25-75S	250	10"	600	25	75	100	380	1450	N
250WQ600-30-90S	250	10"	600	30	90	125	380	1450	N
250WQ600-38-110S	250	10"	600	38	110	150	380	1450	N
250WQ600-48-132S	250	10"	600	48	132	180	380	1450	N
250WQ600-60-160S	250	10"	600	60	160	220	380	1450	N
250WQ600-70-185S	250	10"	600	70	185	250	380	1450	N
250WQ750-75-200S	250	10"	750	75	200	270	380	1450	N
300WQ800-7-30S	300	12"	800	7	30	40	380	1450	N
300WQ800-9-37S	300	12"	800	9	37	50	380	1450	N
300WQ800-12-45S	300	12"	800	12	45	60	380	1450	N
300WQ800-15-55S	300	12"	800	15	55	75	380	1450	N
300WQ800-20-75S	300	12"	800	20	75	100	380	1450	N
300WQ800-25-90S	300	12"	800	25	90	125	380	1450	N
300WQ800-30-110S	300	12"	800	30	110	150	380	1450	N
300WQ800-35-132S	300	12"	800	35	132	180	380	1450	N
300WQ800-40-160S	300	12"	800	40	160	220	380	1450	N
300WQ900-40-185S	300	12"	900	40	185	250	380	1450	N
300WQ1000-45-200S	300	12"	1000	45	200	270	380	1450	N
300WQ1200-45-250S	300	12"	1200	45	250	340	380	1450	N
350WQ1000-6-30S	350	14"	1000	6	30	40	380	980	N
350WQ1000-6-37S	350	14"	1000	6	37	50	380	1450	N
350WQ1200-6-37S	350	14"	1200	6	37	50	380	980	N
350WQ1000-8-45S	350	14"	1000	8	45	60	380	1450	N
350WQ1200-8-45S	350	14"	1300	8	45	60	380	980	N
350WQ1000-10-55S	350	14"	1000	10	55	75	380	1450	N
350WQ1000-15-75S	350	14"	1000	15	75	100	380	1450	N
350WQ1000-18-90S	350	14"	1000	18	90	125	380	1450	N
350WQ1000-22-110S	350	14"	1000	22	110	150	380	1450	N
350WQ1000-28-132S	350	14"	1000	28	132	180	380	1450	N
350WQ1000-35-160S	350	14"	1000	35	160	220	380	1450	N
350WQ1100-38-185S	350	14"	1100	38	185	250	380	1450	N
350WQ1300-35-200S	350	14"	1300	35	200	270	380	1450	N
350WQ1500-36-250S	350	14"	1500	36	250	340	380	1450	N
400WQ1300-13-75S	400	16"	1300	13	75	100	380	1450	N
400WQ1600-10-75S	400	16"	1600	10	75	100	380	980	N
400WQ1300-16-90S	400	16"	1300	16	90	125	380	1450	N
400WQ1600-15-110S	400	16"	1600	15	110	150	380	1450	N
400WQ1600-18-132S	400	16"	1600	18	132	180	380	1450	N
400WQ1600-20-160S	400	16"	1600	20	160	220	380	1450	N
400WQ1600-25-185S	400	16"	1600	25	185	250	380	1450	N
400WQ1600-27-200S	400	16"	1600	27	200	270	380	1450	N
400WQ1600-30-250S	400	16"	1600	30	250	340	380	1450	N
500WQ2000-16-160S	500	200"	2000	16	160	220	380	1450	N
500WQ2200-15-185S	500	200"	2200	15	185	250	380	1450	N
500WQ2500-15-200S	500	200"	2500	15	200	270	380	1450	N
500WQ2800-15-250S	500	200"	2800	15	250	340	380	1450	N

Hydraulic Performance(single phrase type)

Model	Discharge		Flow	Head	Power		Voltage	Speed
Model	mm	inch	m3/h	m	kW	HP	V	r/min
50WQD10-10-0.75S	50	2"	10	10	0.75	1	220	2850
50WQD10-13-1.1S	50	2"	10	13	1.1	1.5	220	2850
50WQD15-15-1.5S(I)	50	2"	15	15	1.5	2	220	2850
50WQD15-20-2.2S	50	2"	15	20	2.2	3	220	2850
65WQD15-6-0.75S	65	2.5"	15	6	0.75	1	220	2850
65WQD20-6-1.1S	65	2.5"	20	6	1.1	1.5	220	2850
65WQD25-7-1.5S(I)	65	2.5"	25	7	1.5	2	220	2850
65WQD25-15-2.2S	65	2.5"	25	15	2.2	3	220	2850
80WQD35-9-2.2S	80	3"	35	9	2.2	3	220	2850
100WQD50-7-2.2S	100	4"	50	7	2.2	3	220	2850

FAQs

Q1: What stainless steel materials are available?

We offer 304, 304L, 316, 316L and Duplex 2205 as standard options, with Super Duplex 2507 available on request. The material is specified in the model code and can be matched to your working medium.
Q2: Can the pump handle seawater or corrosive media?

Yes. For seawater, brackish water and chloride-bearing media we recommend 2205 or 316L; for highly corrosive and high-chloride media, Duplex 2205 (or 2507) is recommended. Reference pH ranges: 304 → 4–10, 316 → 4–13, 316L → 3–13.
Q3: What is the minimum liquid level during operation?

The minimum liquid level should not be less than 2/3 of the motor height during operation to ensure proper motor cooling.
Q4: Can I get a single-phase version?

Yes. Single-phase models carry the letter “D” in the model code (e.g. WQD…), while three-phase models have no “D”.
Q5: Can the pump be customized (voltage, frequency, material, stirrer)?

Yes. We can customise voltage/frequency (e.g. 60 Hz, 220–660 V), material grade, add a stirrer device, or adapt the automatic coupling system to your installation. Please provide your working conditions to our engineers.
Q6: What is the warranty?

18 months from the date of shipment or 12 months from installation, whichever comes earlier. (Mechanical seal not included)
