High stakes in municipal wastewater management mean failure is never an option. A single equipment breakdown often triggers environmental compliance violations, dangerous emergency overflows, and severe operational disruptions. You need machinery capable of enduring harsh conditions continuously. Moving beyond basic technical specifications requires a holistic approach to your engineering decision-making process. Facility managers must balance initial infrastructure deployment, long-term mechanical efficiency, and overall system reliability. This guide serves as a practical evaluation framework. We built it specifically for system engineers and procurement teams. You will learn how to confidently source the right municipal sewage pump for continuous, heavy-duty applications. Our structured approach ensures you select equipment designed to handle peak flows while minimizing unexpected downtime. Proper selection guarantees continuous facility operation, protects surrounding ecosystems, and ensures smooth integration into your broader infrastructure network.
Optimal pump selection requires mapping specific duty points (flow and head) against variable daily municipal influx rates.
Submersible and dry-installed pumps serve different structural footprints; high-volume applications increasingly rely on solutions like the WQ big submersible sewage pump.
Total Cost of Ownership (TCO)—driven by energy efficiency and maintenance downtime—must outweigh initial purchase price in the evaluation phase.
Verifiable compliance with local environmental standards and integration with existing municipal sewage treatment solutions are non-negotiable shortlisting criteria.
Every wastewater facility faces unique influent challenges. You must carefully assess the incoming waste stream composition before evaluating any hardware. Heavy concentrations of suspended solids, fibrous rags, abrasive grit, and corrosive chemicals destroy generic equipment quickly. We strongly recommend analyzing historical influx data to identify problematic debris types. Establish clear baseline flow requirements for standard daily operations. Next, calculate peak flow demands to handle massive storm surges safely. Population variability heavily dictates these peak influx rates during seasonal shifts. A robust pumping system handles both extremes seamlessly without compromising hydraulic efficiency. Understanding fluid density and viscosity changes during heavy rainfall events prevents unexpected mechanical stalling.
Unexpected downtime creates immediate cascading failures throughout municipal grids. You need to define strict acceptable downtime limits early in the facility design phase. Ask yourself what happens if the primary unit fails during a storm. Establish rigorous redundancy requirements to prevent catastrophic sewage overflows. Engineers typically design duplex or triplex parallel configurations. These parallel setups guarantee continuous plant operation even during scheduled maintenance cycles. An automated alternating control system balances the wear across multiple units evenly. A properly redundant system ensures seamless operation around the clock. True success means designing a lift station resilient enough to survive multiple concurrent component failures.

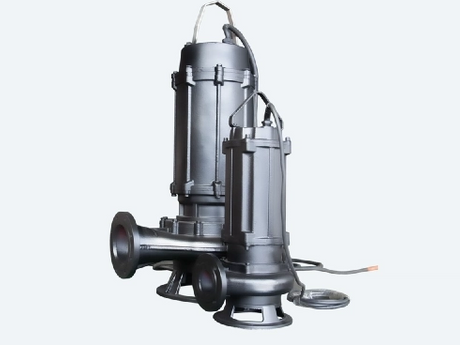

Engineers install submersible pumps directly inside the wet well. This submerged architecture saves valuable surface space and dramatically reduces operational noise. They function perfectly in deep lift stations and primary influent applications. The surrounding fluid naturally cools the motor housing during continuous operation. Modern high-volume municipal applications rely heavily on specialized models. We often consider the WQ big submersible sewage pump an industry standard. It easily handles massive flow rates using advanced non-clogging impeller designs. Submersible units utilize automated guide rail systems for installation. Technicians can easily hoist them out for inspection without entering the hazardous wet well environment.
Dry-pit pumps sit in a separate dry chamber located directly next to the wet well. Alternatively, surface-mounted self-priming variants operate entirely above ground. These designs require significantly larger structural footprints. However, they offer distinct logistical advantages for maintenance crews. Technicians prefer them when prioritizing daily visual manual inspections. Immediate physical access becomes much easier compared to hoisting a fully submerged unit. Operators can easily check seal fluid levels, monitor bearing vibrations, and inspect casing temperatures. Dry-pit configurations utilize specialized flood-proof motors. These motors survive unexpected dry chamber flooding events without suffering catastrophic electrical shorts.
Impeller geometry dictates a machine's ability to pass destructive solids safely. You must evaluate different configurations based on specific grid waste composition. Facilities lacking upstream screening require highly specialized fluid handling mechanics.
Vortex Impellers: These create a strong whirlpool effect outside the volute. The solid fluid rarely touches the metal vanes directly. This minimizes abrasive wear from heavy grit.
Single-Channel Impellers: These offer much higher hydraulic efficiency. They easily pass large spherical solids. However, they occasionally struggle handling heavy concentrations of long fibrous rags.
Cutter/Grinder Impellers: These mechanisms slice through tough rags, sanitary products, and plastics aggressively. They prevent downstream pipe clogs effectively. They do consume slightly more operational energy.
Aggressive over-sizing remains a dangerous engineering trap. An oversized machine suffers from rapid on-and-off cycling. This increases mechanical wear and wastes massive amounts of electricity. You should rely strictly on accurate system resistance curves instead. Match these calculated curves directly to the manufacturer's published performance data. Your primary goal involves operating as close to the Best Efficiency Point (BEP) as possible. Operating near the BEP maximizes operational lifespan and minimizes destructive shaft vibration. Calculate the Total Dynamic Head (TDH) meticulously. Include both static lift requirements and dynamic pipe friction losses. Precision sizing prevents operating at the extreme edges of the performance curve.
Cavitation destroys heavy-duty impellers in mere weeks. You prevent this phenomenon by rigorously calculating the Net Positive Suction Head parameters. The NPSH available (NPSHa) in your lift station must exceed the machine's NPSH required (NPSHr). Always include a generous safety margin during these calculations. Proper NPSH management prevents raw sewage vaporization inside the metal casing. Vapor bubbles collapsing against the impeller cause severe mechanical degradation. This leads to unexpected breakdowns and shattered bearings. Engineers must account for local atmospheric pressure and maximum fluid temperatures when finalizing these critical NPSH calculations.
Material selection depends entirely on local fluid chemistry. Standard cast iron works perfectly well for neutral, mildly abrasive residential wastewater. However, highly corrosive industrial runoff demands specialized metallurgy. You must evaluate the necessity of duplex stainless steel alloys carefully. High chloride content or excessive abrasive grit rapidly erodes standard materials. Match your casing and impeller metals to your toughest influent parameters. We highly recommend specifying hardened materials for the wear rings. Replaceable wear rings protect the main casing from internal friction. This simple metallurgical upgrade extends the overall equipment lifespan significantly.
Common Impeller Types in Municipal Applications
Impeller Type | Primary Application | Solids Handling Capability | Hydraulic Efficiency |
|---|---|---|---|
Vortex | Grit-heavy wastewater | Excellent (passes large solids easily) | Low to Moderate |
Single-Channel | General municipal sewage | Good (spherical solids) | High |
Cutter / Grinder | Rag-heavy residential runoff | Excellent (slices fibrous materials) | Moderate |
Multi-Channel | Screened effluent transport | Fair (small solids only) | Very High |
Motor specifications determine long-term power consumption and reliability. Always specify IE3 or IE4 premium efficiency motors for continuous operations. Robust electrical insulation classes, such as Class H, prevent winding damage during peak load conditions. Furthermore, sealing integrity prevents catastrophic motor flooding. Mandate dual mechanical seals arranged in tandem configurations. The primary seal faces the harsh sewage, while the secondary seal operates in a clean oil bath. Moisture detection sensors are equally critical. They alert system operators to primary seal failures long before moisture actually reaches the sensitive motor windings. Early detection prevents complete electrical failure.
Replacing older infrastructure often uncovers hidden integration challenges. You must verify structural compatibility early in the planning phase. Check new equipment dimensions against existing guide rails and auto-coupling pedestals. Ensure discharge piping aligns perfectly without adding stress to the structural flanges. Misaligned flanges cause severe vibration and eventual pipe fracturing. Control panel compatibility is equally vital. Avoid complex electrical retrofits by matching voltage outputs and sensor wiring formats precisely. Confirm the existing lifting davits possess sufficient reach and weight capacity. Identifying these retrofitting realities early prevents major delays during the physical installation phase.
Continuous pumping consumes massive amounts of electricity daily. Optimizing power usage remains a primary engineering directive for sustainable facilities. Dynamic municipal loads demand flexible motor control strategies. We emphasize the necessity of Variable Frequency Drives (VFDs) for modern plants. A VFD adjusts motor speed dynamically to match fluctuating daily inflows. This dynamic response drastically improves overall energy lifecycles. It also reduces mechanical stress on the entire rotating assembly. Soft starting capabilities eliminate massive electrical inrush currents. Smoothing out operations utilizing VFDs prevents violent hydraulic shockwaves, commonly known as water hammer, within the discharge piping network.
A robust mechanical design means nothing without reliable logistical support. Evaluate your chosen vendor's local supply chain rigorously. You need immediate access to replacement impellers, mechanical seals, and heavy-duty bearings. Sourcing specialized parts internationally causes unacceptable operational delays. A technically superior machine becomes a major liability if critical spare parts take weeks to arrive during a weather emergency. Standardize components across your facility whenever possible. This strategy minimizes your required on-site spare parts inventory. Verify local service center capabilities. Ensure factory-trained technicians remain available for emergency on-site troubleshooting.
A detailed RFQ eliminates vendor ambiguity entirely. You must explicitly list all non-negotiable data points. Provide exact fluid properties, including specific gravity and maximum anticipated solid concentrations. Specify the absolute minimum required solid passage size. Detail the exact Total Dynamic Head (TDH) and available facility electrical voltage. Clear specifications force vendors to submit perfectly tailored engineering proposals. Include specific requirements for protective coatings and exterior epoxy finishes. Demand detailed pump performance curves mapping the entire operational range. Comprehensive data allows you to compare multiple vendor proposals objectively.
Trusting a manufacturing brand requires concrete evidence. Demand verifiable case studies from similar-sized municipal plants. A manufacturer should easily prove their equipment's reliability in comparable harsh environments. Next, scrutinize their exact warranty terms and guaranteed performance curves. Look for hidden exclusion clauses regarding abrasive wear. Finally, confirm the availability of factory-authorized commissioning teams. Proper factory startup validates the installation integrity. It extends equipment lifespan and fully validates all warranty coverage. Ask for ISO 9001 certifications to guarantee strict manufacturing quality control standards.
Specifying a heavy-duty municipal sewage pump represents a massive infrastructure investment. It is never a simple, off-the-shelf commodity purchase. Engineers must strictly prioritize non-clog designs and verifiable operational efficiency near the Best Efficiency Point. Precision engineering guarantees long-term mechanical survival in brutal environments. Robust vendor support and localized, accessible spare parts provide ultimate operational peace of mind. Following this comprehensive evaluation framework protects municipal infrastructure stability. It guarantees strict environmental compliance. You will successfully build a highly resilient, energy-efficient wastewater management network capable of serving your community flawlessly for decades.
A: You must evaluate your facility's upstream screening infrastructure. Standard municipal requirements usually dictate a passage size of 3 inches (75mm) or larger. If your lift station lacks upstream screening grates, larger spherical passage capabilities become absolutely mandatory. This prevents heavy fibrous rags and large plastics from instantly clogging the internal volute.
A: You can realistically expect a mechanical lifespan of 10 to 15 years, or even longer. However, this longevity is highly conditional. It requires strict preventative maintenance routines, regular mechanical seal replacements, and operating the unit continuously near its designed Best Efficiency Point (BEP).
A: Excessive vibration usually points to three primary technical culprits. First, cavitation caused by inadequate Net Positive Suction Head (NPSHa). Second, partial impeller clogging creating severe rotational imbalance. Finally, operating the unit too far off its designed duty curve, which forces destructive hydraulic stress onto the main shaft and bearings.
A: VFDs dynamically match the motor speed to fluctuating daily wastewater inflows. This prevents severe mechanical wear-and-tear caused by rapid, continuous start/stop cycles. By smoothing out operations, VFDs drastically lower electrical consumption, protect sensitive motor windings, and optimize overall plant hydraulic efficiency.
