What Types of Industrial Water Pumps Exist?

The performance of an industrial water pump depends not only on its quality but—more importantly—on its type. When the selected pump doesn’t align with the fluid characteristics or system demands, problems quickly arise: from reduced efficiency and increased maintenance to complete system failure. Every pump operates based on a mechanical principle tailored to a specific job, and understanding the major industrial water pump types is the first step toward making the right investment. At TQ PUMP, we help industries avoid mismatches by offering a wide range of pump types designed to fit diverse operational needs with accuracy and confidence.

Classification Dimensions: How Pump Types Are Distinguished

Before diving into specific pump models, it’s helpful to understand how industrial water pumps are categorized. Generally, classification occurs along two key dimensions:

Power Mechanism – How the pump is powered and driven.

Mechanical Structure – How the pump moves water from inlet to outlet.

Under the power mechanism, pumps may be classified as electrically driven, diesel-powered, or hydraulically actuated, but since this article focuses purely on structural types, we’ll set aside energy sources. Structurally, the most significant split lies between centrifugal pumps and positive displacement pumps. From there, several subtypes and specialized models emerge, designed to accommodate the viscosity, flow, and pressure characteristics of various fluids.

Centrifugal Pumps: The Most Common Type

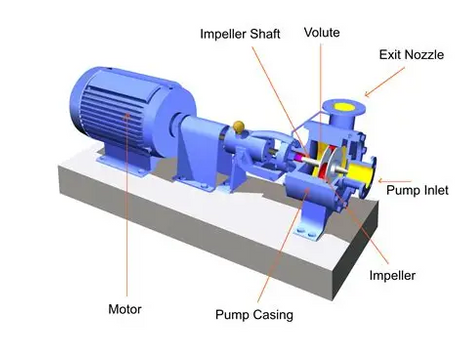

The centrifugal pump is the most widely used industrial water pump type. Its basic structure includes an impeller that rotates to impart kinetic energy to the liquid, creating a pressure differential that moves the fluid. Within the centrifugal category, several configurations exist:

End Suction Pumps

These are among the most standard forms, where water enters from one end and exits at the top. They are compact and easy to maintain, commonly used for low to medium head applications.

Inline Pumps

Inline centrifugal pumps feature a straight-line flow configuration, making them space-saving and suitable for systems with consistent pressure and flow requirements.

Split Casing Pumps

Designed for high-flow, low-head applications, these pumps have a casing that splits horizontally, making maintenance access to internal parts easier. They’re ideal for continuous-duty environments.

Multistage Centrifugal Pumps

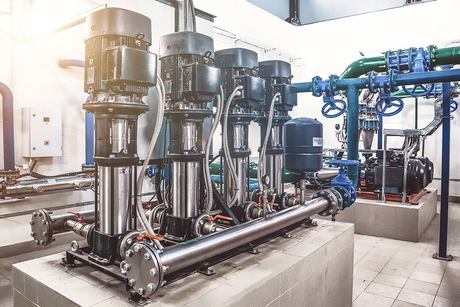

For applications requiring high pressure, multistage centrifugal pumps use multiple impellers in sequence. Each stage increases the pressure, making them suitable for long-distance pumping.

Self-Priming Centrifugal Pumps

These models are designed to re-prime themselves automatically after the initial setup, making them suitable for intermittent flow systems where air can enter the pipeline.

Each variation in the centrifugal family serves a different fluid delivery profile. While centrifugal pumps are optimal for handling large volumes of low-viscosity fluids, their performance drops with thicker liquids or situations demanding precision metering.

Positive Displacement Pumps: Precision Over Volume

Unlike centrifugal types that rely on velocity and pressure, positive displacement pumps work by trapping a fixed amount of fluid and physically pushing it through the system. They deliver constant flow regardless of system pressure, making them ideal for applications that require accuracy or handling of viscous materials.

Gear Pumps

These use intermeshing gears to move fluid between the gear teeth. They are reliable, compact, and capable of handling moderately viscous fluids with good flow control.

Diaphragm Pumps

Using a flexible membrane and check valves, diaphragm pumps handle aggressive, corrosive, or hazardous fluids. Their design offers leak-free operation and chemical compatibility.

Piston and Plunger Pumps

Known for their ability to deliver high-pressure outputs, these pumps are used in situations where exact volumes must be moved with precision. Their mechanical reciprocating motion ensures uniform delivery.

Peristaltic Pumps

These utilize a rotor to compress a flexible tube, pushing fluid forward. Common in laboratory and food applications, they isolate the pumped fluid from mechanical parts entirely.

Lobe Pumps

Lobe pumps operate using lobed rotors that rotate and trap fluid. Their non-contacting design is gentle on shear-sensitive fluids and allows easy cleaning, which makes them popular in sanitary industries.

Positive displacement pumps are generally preferred where viscosity is high, flow must remain constant, or shear-sensitive liquids are involved. Their structure often includes valves, seals, and chambers that provide tight fluid control but also demand regular inspection to prevent wear or leakage.

Special Pump Types: Purpose-Driven Engineering

Beyond the mainstream categories of centrifugal and positive displacement pumps, the industry also relies on specialized industrial water pump types tailored for challenging or unconventional fluids.

Slurry Pumps

These are designed to handle fluids with high solid content, such as in mining or dredging operations. Their impellers are often made of highly abrasion-resistant materials, and the internal passages are oversized to allow the free flow of particles.

Magnetic Drive Pumps

By eliminating mechanical seals and using magnetic coupling between the motor and impeller, these pumps are built to prevent leaks and handle hazardous or sensitive liquids with no risk of cross-contamination.

Vertical Sump Pumps

Used in deep wells or tanks, these vertical pumps are partially submerged and provide extended shaft length to access fluids located below the installation surface. They’re often used in wastewater or chemical basins.

Submersible Pumps

As the name implies, these pumps operate while fully submerged in the fluid. Submersible designs are essential for drainage, dewatering, and flood control operations.

Cryogenic Pumps

Built for ultra-cold liquids such as liquid nitrogen or oxygen, these pumps use materials and structures capable of withstanding extreme temperature conditions without becoming brittle or losing sealing integrity.

Each of these special types fulfills roles that are too extreme, too specific, or too unconventional for standard pump configurations. At TQ PUMP, we manufacture a wide range of these purpose-built pumps to meet demanding industrial challenges with precision and safety.

Conclusion

Understanding the differences among industrial water pump types is not an academic exercise—it’s a business necessity. Selecting a centrifugal pump for a viscous fluid can result in poor performance, while using a positive displacement pump where high flow is required may lead to inefficiency and high costs. That’s why aligning the pump type to the operating conditions—such as flow rate, pressure, fluid composition, and system resistance—is critical to long-term success.

At TQ PUMP, we bring over 30 years of experience in pump manufacturing to help clients make informed, confident decisions. Whether you're dealing with clear water, abrasive slurry, or high-viscosity chemicals, we offer the right type of pump engineered for your specific requirements. Contact us today to find out which pump type best matches your system—and how we can help improve your operational efficiency.
