What Is A Vertical Inline Pump?

In industrial and municipal pumping systems, space efficiency, reliability, and seamless pipeline integration are often as critical as pump performance. Vertical inline pumps offer an ideal solution by combining a compact vertical design with inline suction and discharge, making them suitable for systems where floor space is limited and hydraulic alignment is essential. At Shanghai Tianquan Pump Group Co., Ltd., our range of vertical inline pumps delivers high performance and reliability for a variety of applications, from HVAC systems to industrial process loops. These pumps are designed to handle diverse operational conditions while maintaining energy efficiency and ease of maintenance, making them a popular choice for engineers and system designers worldwide.

What Is a Vertical Inline Pump?

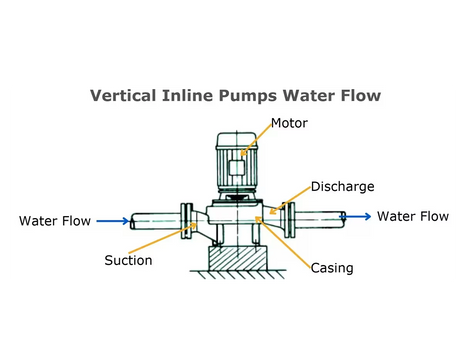

A vertical inline pump is a centrifugal pump with a vertically oriented shaft, where the suction and discharge ports are aligned in a straight line along the same axis. This inline configuration reduces the need for elbows or directional changes in piping, which simplifies system layout, minimizes friction losses, and can improve overall hydraulic efficiency. The vertical shaft allows for a smaller footprint, making these pumps ideal for installations with limited floor space or where multiple pumps need to be arranged in parallel or series. Compared to horizontal pumps, vertical inline pumps can often be installed closer to walls or within mechanical rooms without compromising performance.

Core Components

Vertical inline pumps consist of several key components, each contributing to the pump’s overall performance, reliability, and ease of maintenance:

Impeller: The impeller is the heart of the pump. It converts rotational mechanical energy from the motor into kinetic energy in the fluid and ultimately into pressure. Impeller design, such as closed, semi-open, or open types, affects efficiency, cavitation resistance, and the ability to handle solids.

Casing or Volute: Encases the impeller and converts fluid velocity into pressure. Properly designed volutes reduce turbulence and energy loss while protecting internal components from wear and corrosion.

Motor: Motors can be close-coupled (directly mounted) or split-coupled (with a shaft coupling). Close-coupled designs save space and reduce alignment issues, while split-coupled pumps simplify maintenance for larger systems.

Shaft: Transfers power from the motor to the impeller. High-quality shafts reduce vibration and prevent premature bearing wear, especially in high-speed or high-head applications.

Seals: Mechanical seals prevent leakage between the rotating shaft and stationary casing. Material choice (carbon, ceramic, stainless steel) is critical for fluid compatibility.

Bearings: Support the shaft and maintain smooth operation. Bearings must be selected based on load, speed, and operating environment to ensure longevity.

Coupling: Transfers torque from the motor to the pump and compensates for minor misalignment, reducing stress on the shaft and bearings.

How Does a Vertical Inline Pump Work?

Vertical inline pumps operate on the principle of centrifugal force. As the impeller spins, it accelerates fluid outward into the volute, where the fluid’s kinetic energy is converted into pressure. The straight-through flow path minimizes internal turns, reducing hydraulic losses, noise, and vibration. This design also simplifies system calculations and helps maintain a steady flow rate. In comparison to horizontal pumps, vertical inline pumps offer quieter operation, require less foundation support, and allow multiple units to be installed in compact arrangements. Their efficiency and low footprint make them especially suitable for retrofitting existing systems where space constraints are critical.

Design Variants and Configurations

Vertical inline pumps come in multiple configurations to meet different operational and maintenance requirements:

Close-Coupled (Monobloc): The motor and pump share a common shaft housing. This design reduces installation complexity and minimizes floor space usage.

Rigid-Coupled or Long-Coupled: These designs separate the motor and pump, allowing easier access for repairs, reducing vibration transmission, and accommodating larger motors for high-flow applications.

Split-Coupled: Provides convenient access to internal components without disturbing the motor. Ideal for systems requiring frequent inspection or replacement of seals and bearings.

Single-Stage vs. Multistage: Single-stage pumps suit low-pressure applications, while multistage pumps deliver higher pressure and head for extended systems, making them adaptable for booster sets or industrial loops.

Material selection also influences performance and longevity. Stainless steel offers corrosion resistance for chemically aggressive fluids, whereas ductile iron provides mechanical strength and cost-efficiency for standard water or mildly corrosive applications. Understanding operational conditions, fluid type, and system pressures is key to choosing the appropriate construction material.

Typical Applications

Vertical inline pumps excel in systems requiring efficient circulation, compact installation, and precise control. Common applications include:

HVAC and Boiler Circulation: Circulating hot or chilled water for heating and cooling loops in buildings and industrial facilities.

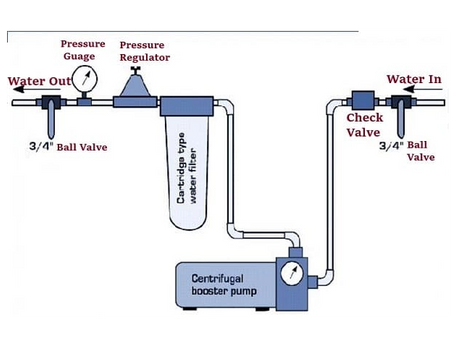

Pressure Boosting Systems: Supplying high-rise buildings, commercial complexes, or municipal water networks.

Chilled and Hot Water Recirculation: Maintaining consistent temperatures in process loops or comfort systems.

Industrial Process Loops: Handling water, chemicals, or other process fluids where inline alignment reduces piping complexity and installation costs.

Fire Protection Systems: Compact vertical inline pumps provide high-pressure delivery in tight spaces, meeting safety standards without requiring large pump rooms.

Vertical inline pumps are particularly advantageous in applications where multiple pumps must operate in parallel, as their inline design allows for easier manifold connections and modular expansion.

Selecting and Installing a Vertical Inline Pump

Choosing the right vertical inline pump requires careful consideration of technical and operational factors:

Flow Rate and Head: Ensuring the pump meets both peak and normal operating conditions is crucial for energy efficiency and system reliability.

NPSH (Net Positive Suction Head): Proper NPSH ensures the pump avoids cavitation, which can damage the impeller and reduce lifespan.

Motor Rating and Efficiency: Select a motor that meets system demands without overloading or wasting energy.

Flange Size and Orientation: Must align with existing piping, allowing for smooth installation and maintenance.

Service Accessibility: Consider ease of seal, bearing, and impeller inspection. Split-coupled pumps facilitate faster maintenance.

Material Compatibility: Ensure pump materials match fluid properties and temperature to prevent corrosion, scaling, or erosion.

Proper installation includes aligning the pump and motor, securing the base for minimal vibration, and selecting vibration isolation pads where needed. Decisions between close-coupled and split-coupled configurations affect long-term maintenance ease and system flexibility.

Maintenance and Common Issues

Routine inspection and proactive maintenance extend pump life and system reliability. Key areas include:

Seals: Monitor for leaks or wear, replacing components promptly to prevent fluid loss.

Bearings: Check for vibration, overheating, or unusual noise, which indicate lubrication or load issues.

Impeller: Inspect for scaling, corrosion, or erosion, particularly in abrasive or chemically aggressive fluids.

Coupling: Ensure alignment is maintained to prevent shaft fatigue.

Cavitation Signs: Bubble formation, vibration, or noise signals insufficient NPSH or suction issues, which must be corrected immediately.

Implementing a scheduled maintenance plan and keeping spare parts on hand minimizes downtime and keeps the system operating efficiently.

Conclusion

Vertical inline pumps are widely chosen for their compact footprint, straightforward installation, and efficient inline alignment. Shanghai Tianquan Pump Group Co., Ltd. provides a comprehensive range of these pumps, including centrifugal and multistage options, constructed from durable materials like stainless steel and ductile iron to suit diverse industrial and municipal applications. These pumps are designed to provide reliable operation, energy efficiency, and simplified maintenance for modern systems. To explore our full range of vertical inline pumps and discuss the ideal model for your requirements, contact us today.
