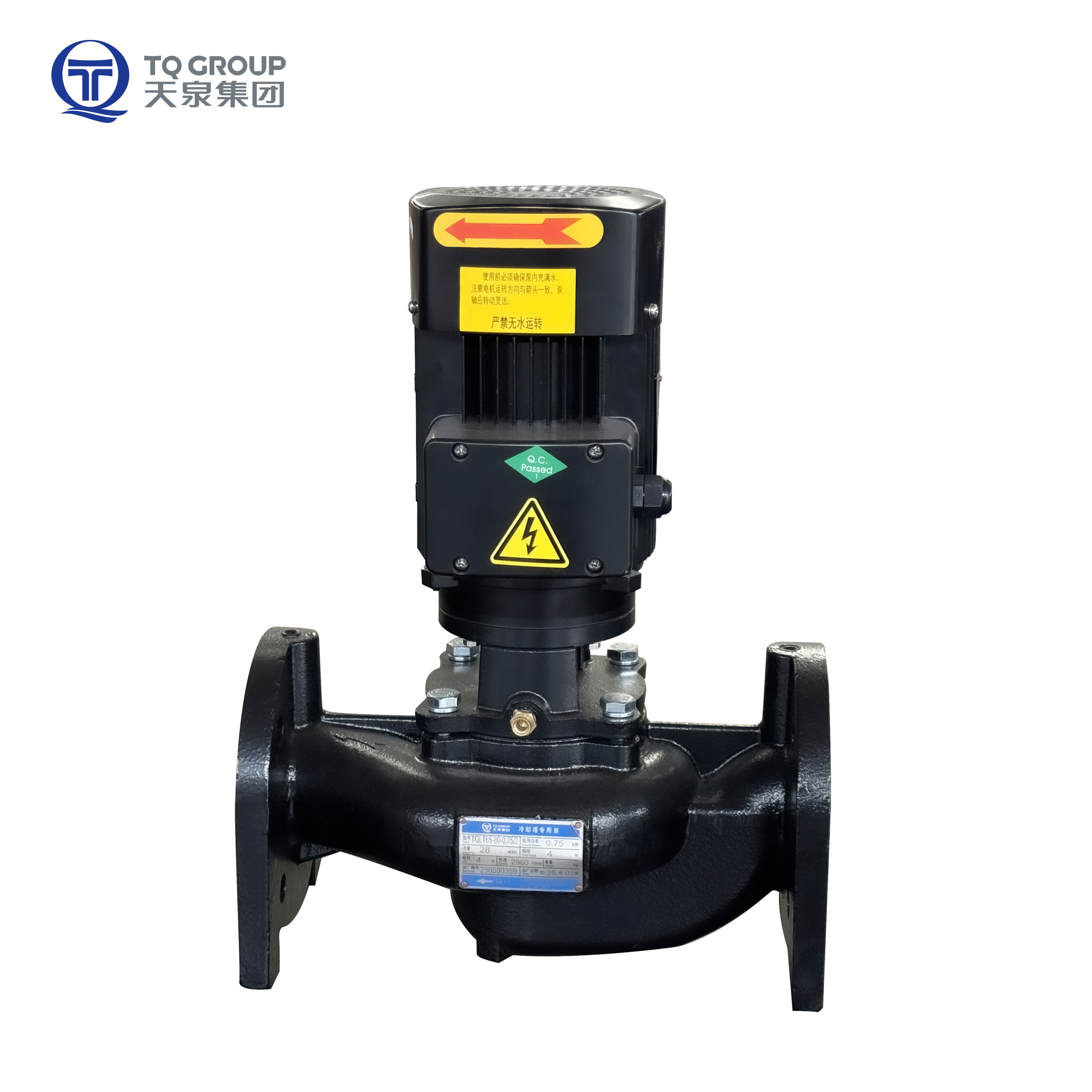

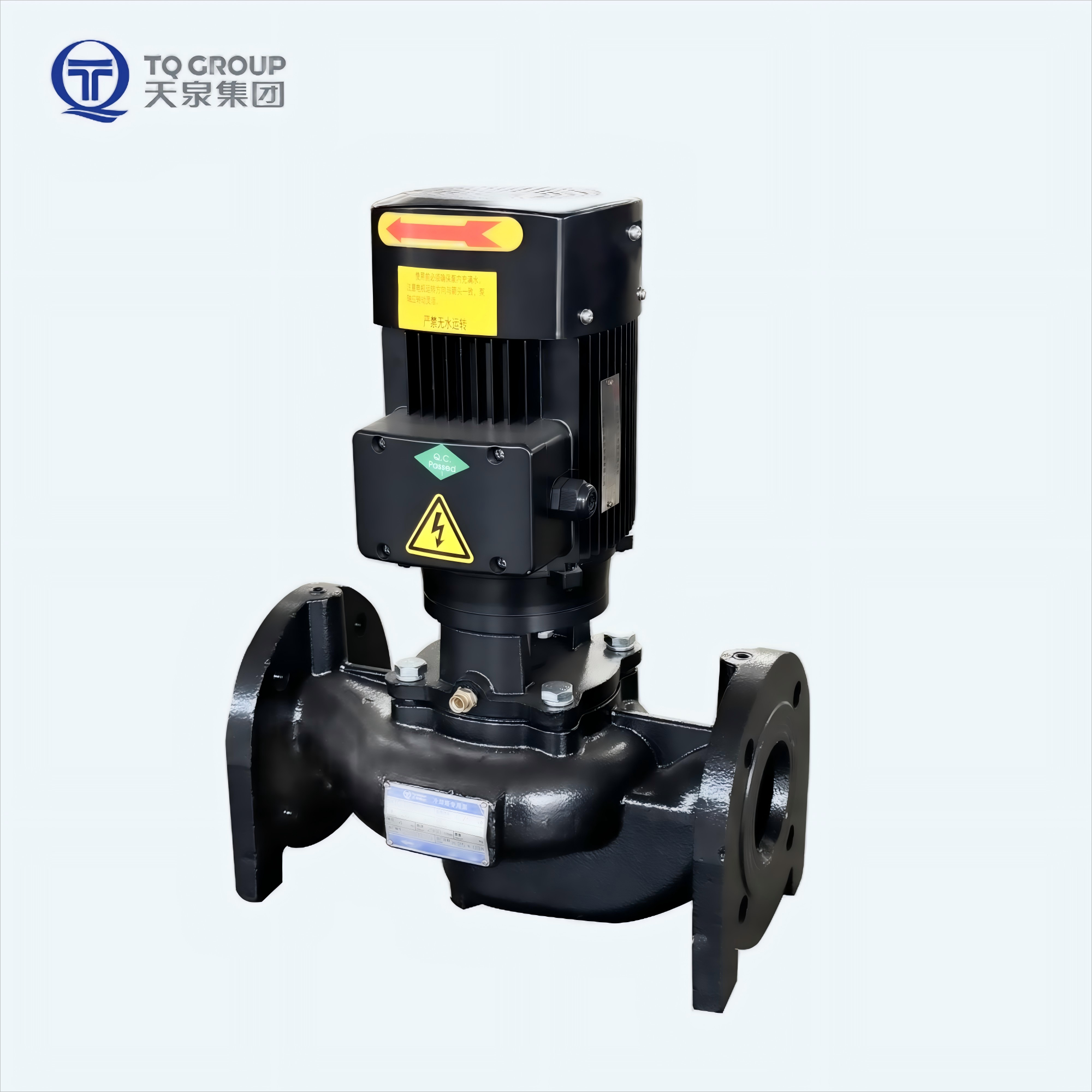

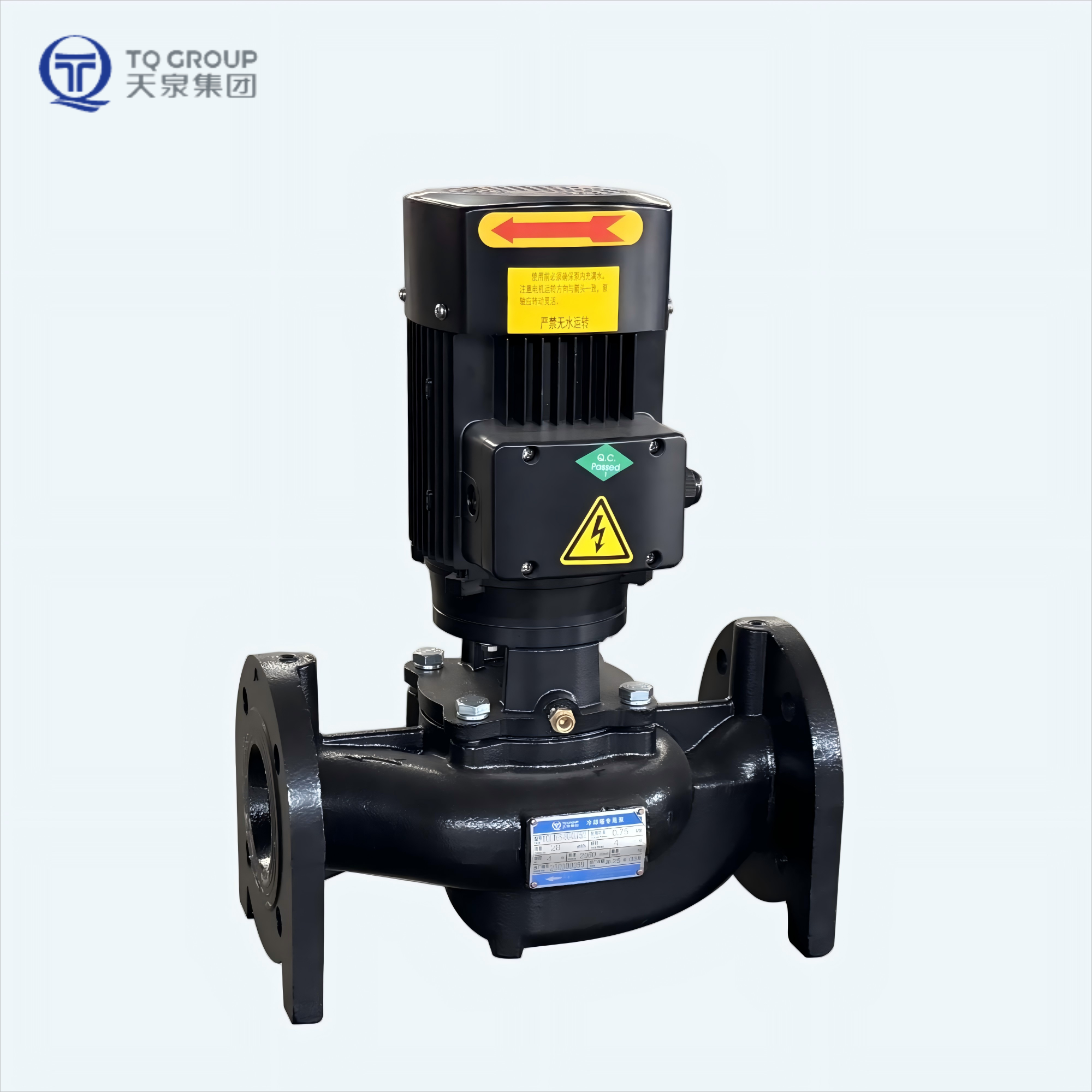

TQLT Vertical Inline Pump for Cooling Tower

The TQLT cooling tower pump is a specialized centrifugal pump developed by Tianquan for closed cooling towers and condenser water circulation systems. Featuring a cantilever design with standard flange connections for inlet and outlet, it operates at a maximum pressure of 1.0 MPa and temperature of 80℃. The pump utilizes a direct motor connection, where the impeller is mounted on the motor’s extended shaft, eliminating the need for an independent bearing system. Radial and axial forces are fully supported by the motor bearings.

Applications:

Suitable for commercial and industrial buildings to circulate condenser water in cooling towers, ensuring stable temperature control for air conditioning systems.
Supports precision cooling in data centers by maintaining consistent water flow in chilled water systems, preventing equipment overheating.
Integrates with geothermal and solar thermal cooling systems to optimize energy transfer and heat exchange.

Quantity:
Voltage:	380v 400V 415V
Frequency:	50HZ
Availability:





Inquiry Add to Basket Download

Model:
TQLT

Product Features

Product Structure

Product Performance

Others

Product Features

Compact & Space Saving Design
Vertical in-line installation minimizes footprint and simplifies piping layout.

Direct Motor Drive
The impeller is mounted on the motor’s extended shaft, removing traditional bearing systems for enhanced reliability.

High Flow, Low Head Performance
Optimized mixed-flow hydraulic model ensures efficient circulation with large flow rates at low pressure.

Robust Construction
Handles up to 1.0 MPa pressureand 80°C fluid temperature, suitable for demanding cooling applications.

Model Meaning

model meaning tqlt

Technical Parameters

Max Flow	18-500m³/h	Voltage	380V
Max Head	10m	Frequency	50HZ
Speed	2900RPM	Max Motor Power	22kW
Structure	Vertical Single Stage Single Suction	Mounting type	V1
Outlet Diameter	DN50-DN250	Efficiency Level	IE3
Sealing type	Mechanical sealing	Insulation Class	F
Working Pressure Max	0.6Mpa	Protection Class	IP55
Liquid Temperature	-10℃~80℃	Cooling Method	TEFC
Product Certificate	N/A	Thermal Protection	/

Product Structure

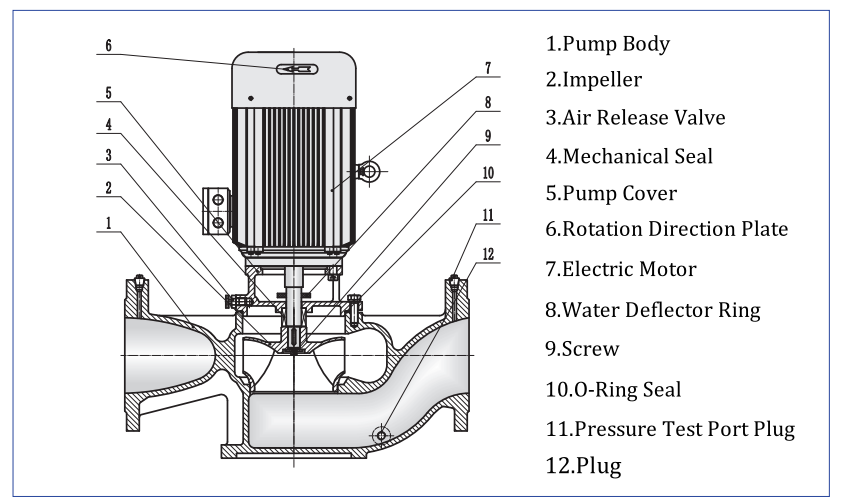

Item No.	Part Name	Item No.	Part Name
1	Pump Body	7	Electric Motor
2	Impeller	8	Water Deflector Ring
3	Air Release Valve	9	Screw
4	Mechanical Seal	10	O-Ring Seal
5	Pump Cover	11	Pressure Test Port Plug
6	Rotation Direction Plate	12	Plug

Product Performance

Model	Flow		Head	Speed	Motor Power	Weight
	Q		H	n	Pe	Weight
	m3/ h	L/s	(m)	( r/min)	( kW)	(kg)
TQLT 50-80-0.75/2	18	5	5	2960	0.75	30
TQLT 65-80-0.75/2	28	7 .8	4	2960	0.75	32
TQLT 80-70-1.1/2	53	14 .7	4	2960	1.1	40
TQLT 80-80-1.5/2	70	19 .4	4	2960	1.5	41
TQLT 80-80(I)-2.2/2	84	23 .3	4	2960	2.2	43
TQLT 100-125-2.2/4	100	27 .8	5	1480	2.2	100
TQLT 125-125(I)A-3/4	150	41 .7	5	1480	3	80
TQLT 125-125(I)-4/4	180	50	5	1480	4	88
TQLT 150-160-5.5/4	180	50	8	1480	5.5	175
TQLT 150-125-5.5/4	233	64 .7	5	1480	5.5	155
TQLT 150-125(I)-7.5/4	286	79 .4	5	1480	7.5	165
TQLT 200-160-11/4	336	93 .3	7	1480	11	315
TQLT 200-200-15/4	400	111 . 1	8	1480	15	335
TQLT 250-200-22/4	500	138 .9	10	1480	22	460

Model selection instructions

After sales1

Users' selection shall not be limited by the performance parameters list. Parameters in the catalog are only for reference. We could design and manufacture the product according to the actual requirements. If there is a special selection beyond the sample performance parameters, please get in touch with our technical support.

If the selected model is close to performance parameters, generally standard impeller pumps and high-speed pumps are preferred. (NPSH shall meet the requirements).

If a high-voltage motor or special motor is required, please DO NOT make the foundation according to the installation dimension of the sample. Our technical support shall customize the drawings.
